Sony ZS-D55 Service Manual

– 66 –
#
2
#2
#2
#11
#2
#2
#2
#10
#2
#2
#2
#7
#2
#12
#12
M790
301
302
303
304
304
305
306
307
308
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
CDM-2411AAA
324
324
325
326
326
327
328
329
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

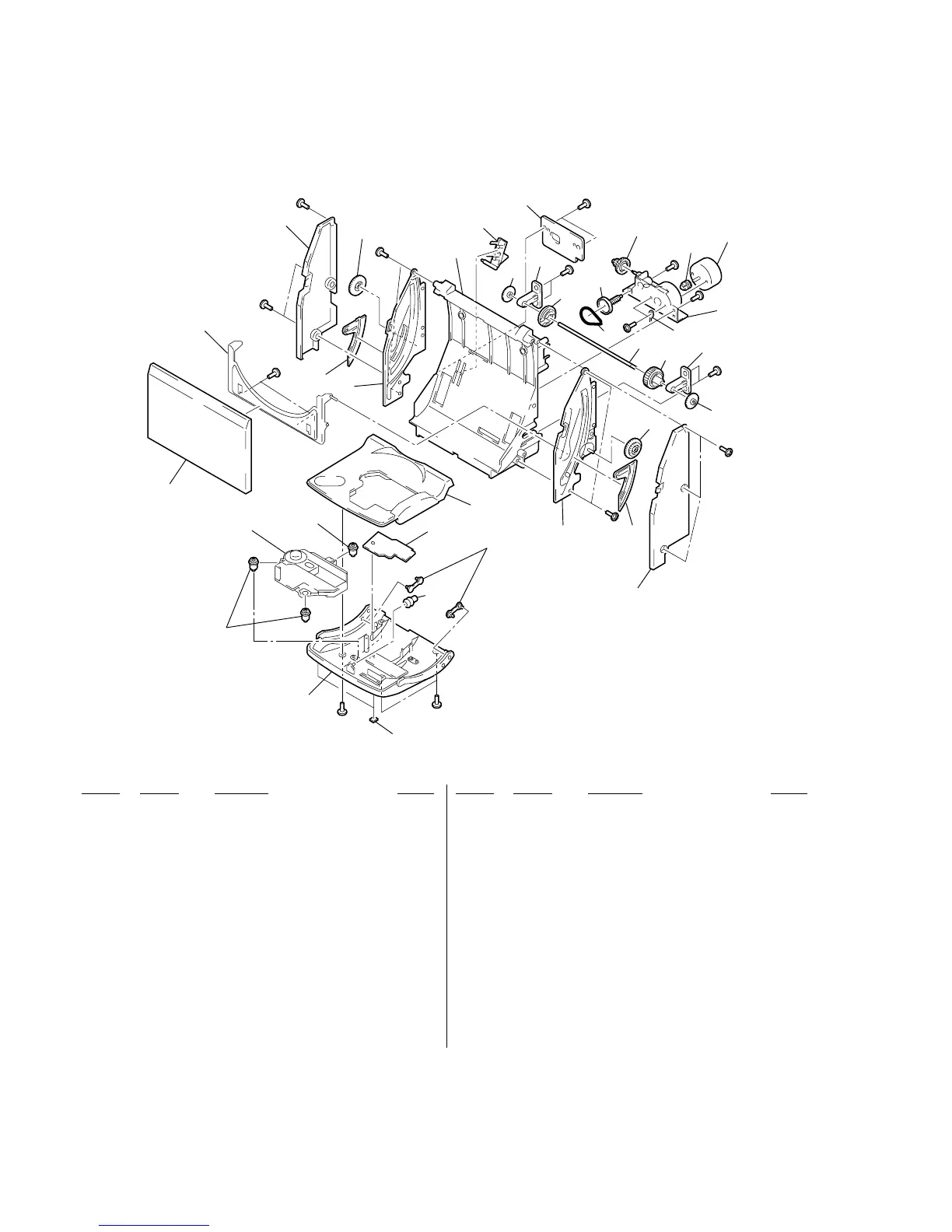

7-7. CD SECTION
(VLM-ZSD55-142)
301 3-017-025-11 COVER (R), SIDE
302 3-017-012-11 PLATE (R), SIDE
303 3-017-014-11 SLIDER (R)
304 3-017-027-11 GEAR (C)
305 3-017-016-11 SHAFT, TRAY
306 4-975-811-01 INSULATOR
307 3-017-022-21 TRAY (BOTTOM), CD
308 4-975-762-11 INSULATOR
* 309 1-667-046-11 PICK-UP RELAY BOARD
310 3-020-624-21 TRAY (TOP), CD
311 3-046-535-01 LID, CD
312 X-3374-204-1 WINDOW ASSY, CD
313 3-017-013-11 SLIDER (L)
314 3-017-035-11 COVER (L), SIDE
315 3-017-011-11 PLATE (L), SIDE
316 3-017-017-11 LEVER, DETECTION
* 317 1-667-045-11 LOADING BOARD
318 3-017-031-11 GEAR (A)
319 3-017-032-11 GEAR (B)
320 3-017-030-01 BELT
321 3-017-008-11 GEAR (R), TIMING
322 3-017-036-11 CHASSIS, GEAR
323 2-627-174-01 PULLEY (M)
324 3-017-009-11 BEARING
325 3-017-010-11 SHAFT
326 3-017-028-11 GEAR (D)
327 3-017-029-11 GEAR (L), TIMING
328 3-017-024-21 CHASSIS, LOADING
329 3-034-848-01 CUSHION
M790 1-698-999-11 MOTOR, DC (LOADING)
