– 6 –
SECTION 3
DISASSEMBLY
Note : Follo w the disassemb ly pr ocedure in the n umerical or der given.

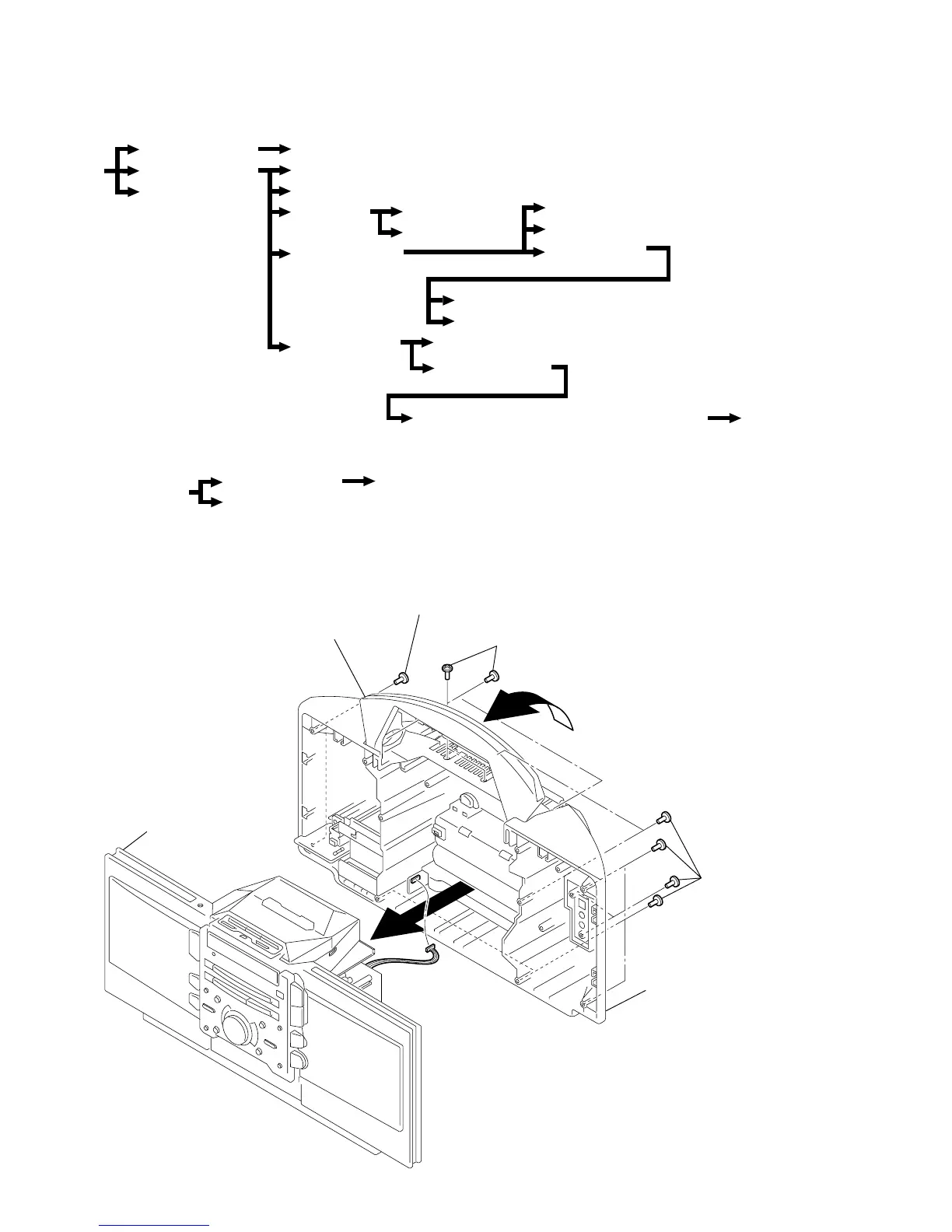

3-1. CABINET REAR ASSY, CABINET FRONT ASSY
z
The equipment can be remo ved using the f ollo wing pr ocedure .
Cabinet Front ASSY
BATT L board
Cabinet Rear ASSY Power board, P/T in board, P/T out board, BATT S board
Tuner board
Jack board
TC board
CD board
CD block section
CD block section
“ Tray ASSY, CD ”
Loading board
< CD BLOCK SECTION >
< MAIN SECTION >
Panel DECO ASSY
Audio board
Set
Cabinet Top ASSY
MD block ASSY
TC/M board
CD chassis ASSY
Optical pick-up block, Pick-up relay board
Control board, JOG LED1 board, JOG LED2 board Key board
TC RF board, Head relay board, Belt FR, Belt BR, Motor (M691)
TC key board, TC LED (L) board, TC LED (R) board
H/P board
Cabinet front ASSY
Cabinet rear ASSY
Handle
2
Screws
+BVTP 3
×
10
3
Screws
+BVTP 3
×
14
3
Screws
+BVTP 3
×
1
To Next Page
