7.2 ST morpho headers (CN11 and CN12)
The ST morpho consists of CN11 and CN12 male pin header footprints (not soldered by default). They can be
used to connect the STM32 Nucleo-144 board to an extension board or a prototype/wrapping board placed on
top of the STM32 Nucleo-144 board. All signals and power pins of the STM32 are available on the ST morpho
connector. An oscilloscope, a logic analyzer, or a voltmeter can also probe this connector.

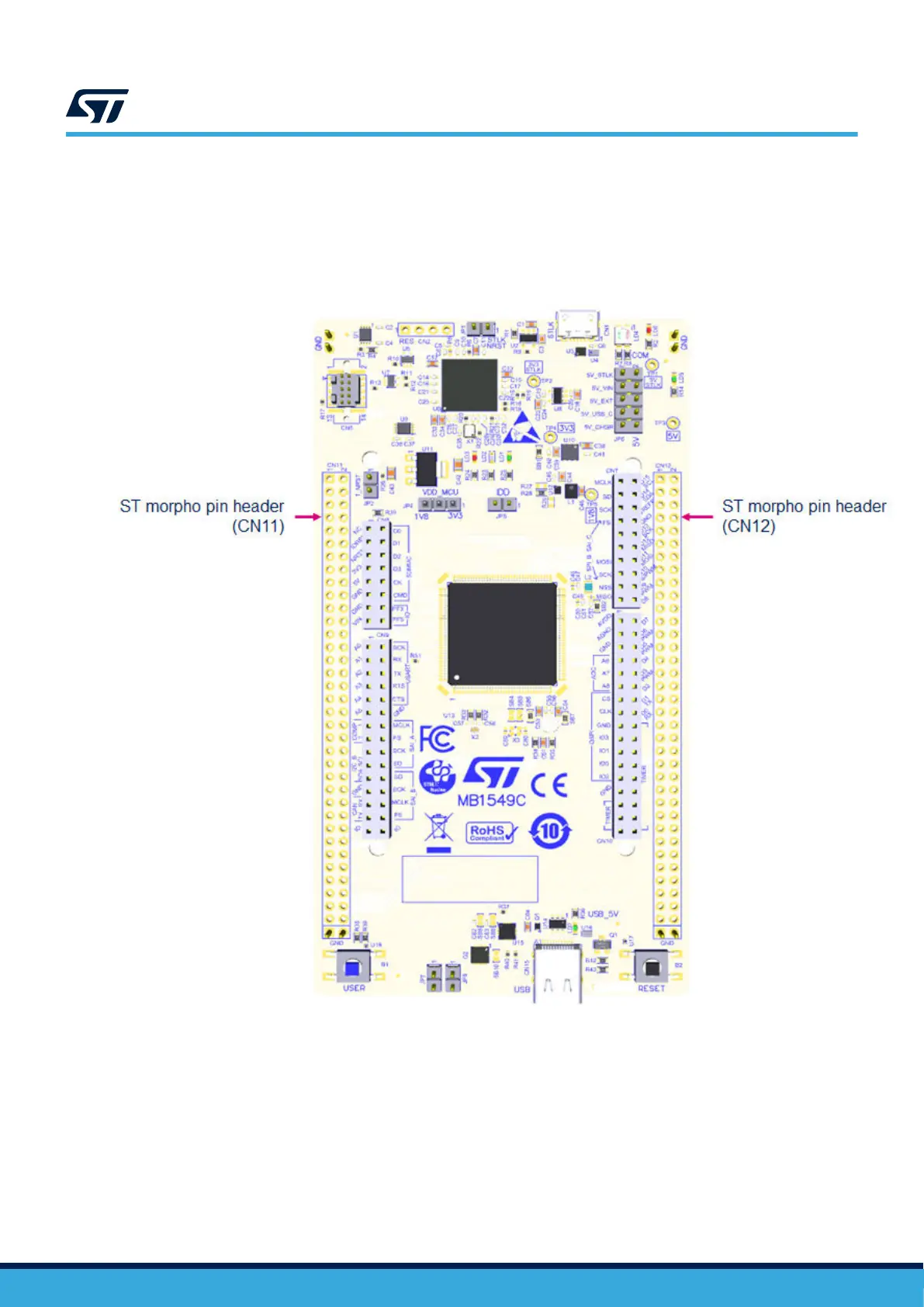

Figure 16. ST morpho connector
Table 19 shows the pin assignments for the STM32 on the ST morpho connector.
