7 Board connectors
Several connectors are implemented on the STM32G4 Nucleo-64 board.
7.1 STLINK-V3E USB Micro-B connector CN1
The USB connector CN1 is used to connect the embedded STLINK-V3E to the PC for the programming and
debugging purposes.

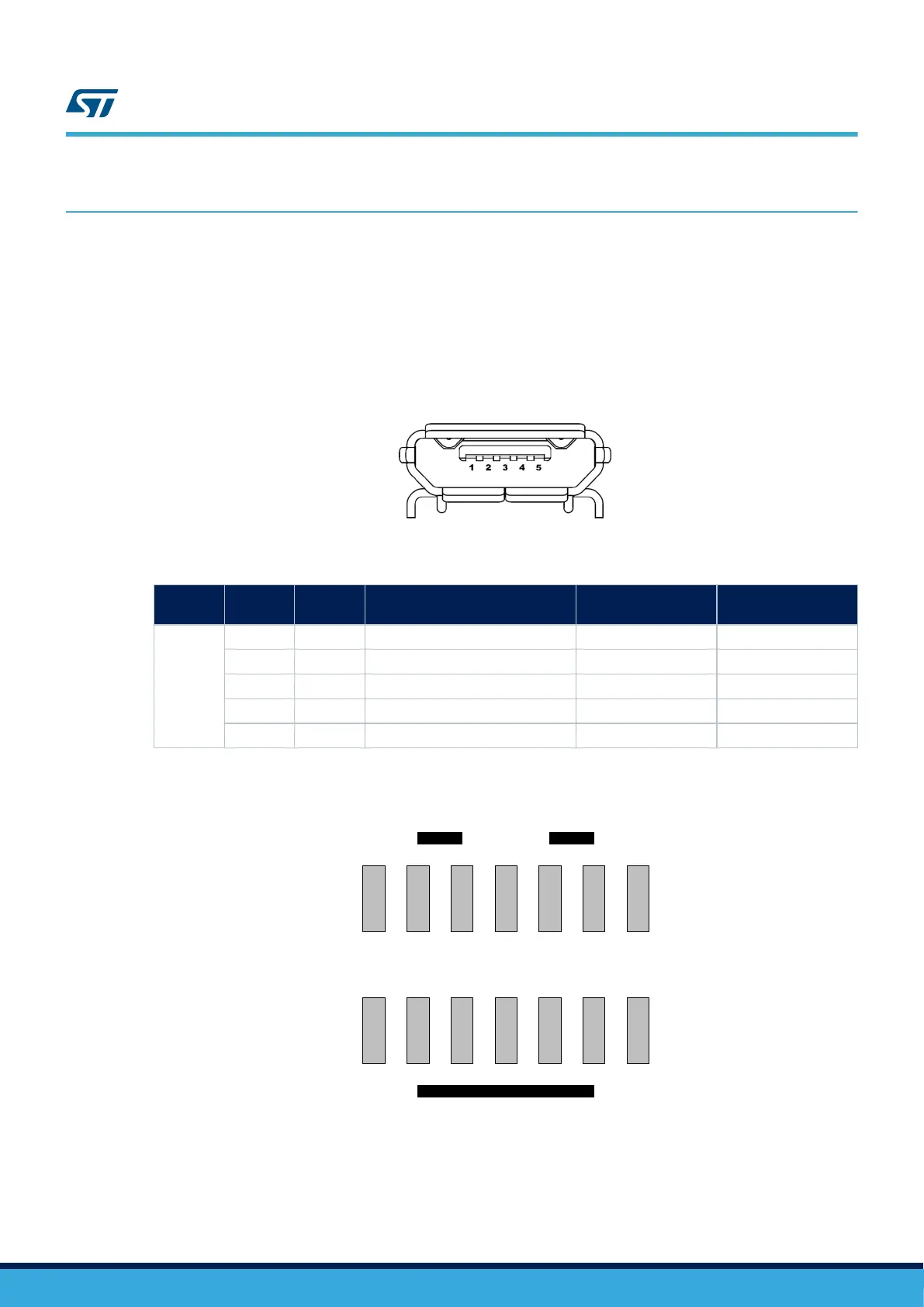

Figure 15. USB Micro-B connector CN1 (front view)
Table 13. USB Micro-B connector CN1 pinout
Connecto
r
Pin
number
Pin name Signal name STLINK-V3E MCU pin Function
CN1
1 VBUS 5V_USB_CHGR - 5 V power
2 DM USB_DEV_HS_CN_N R14 USB diff pair N
3 DP USB_DEV_HS_CN_P R15 USB diff pair P
4 ID - - -
5 GND - - GND
7.2 MIPI10 connector CN4
Figure 16. MIPI10 connector CN4
135791113
2468101214
The MIPI10 connector is implemented with a footprint compatible with the STDC14 footprint. The related pinout
for the MIPI10 connector is listed in Table 14.
UM2505
Board connectors
UM2505 - Rev 2
page 28/43
