ST STM32G4 Nucleo-64 User Manual

Table 14. MIPI10 connector CN4 pinout (STDC14 pinout compatible)
Connector Pin number Description Pin number Description
CN4
1 - 2 -
3 VDD (3V3) 4 T_SWDIO (PA13)
5 GND 6 T_SWCLK (PA14)
7 KEY (connected to GND) 8 T_SWO (PB3)
9 - 10 T_JTDI (PA15)
11
GNDDetect (connected to GND through
a 100 Ω resistor)
12 T_NRST
13 T_VCP_RX (PA3 by default or PC5) 14 T_VCP_TX (PA2 by default or PC4)
7.3
Arduino
™
Uno V3 connectors CN5, CN6, CN8 and CN9
The Arduino
™
connectors CN5, CN6, CN8 and CN9 are female connectors compatible with the Arduino
™
standard. Most shields designed for Arduino
™
can fit with the STM32G4 Nucleo-64 board.
The Arduino
™
connectors on the STM32G4 Nucleo-64 board support the Arduino
™
Uno V3.

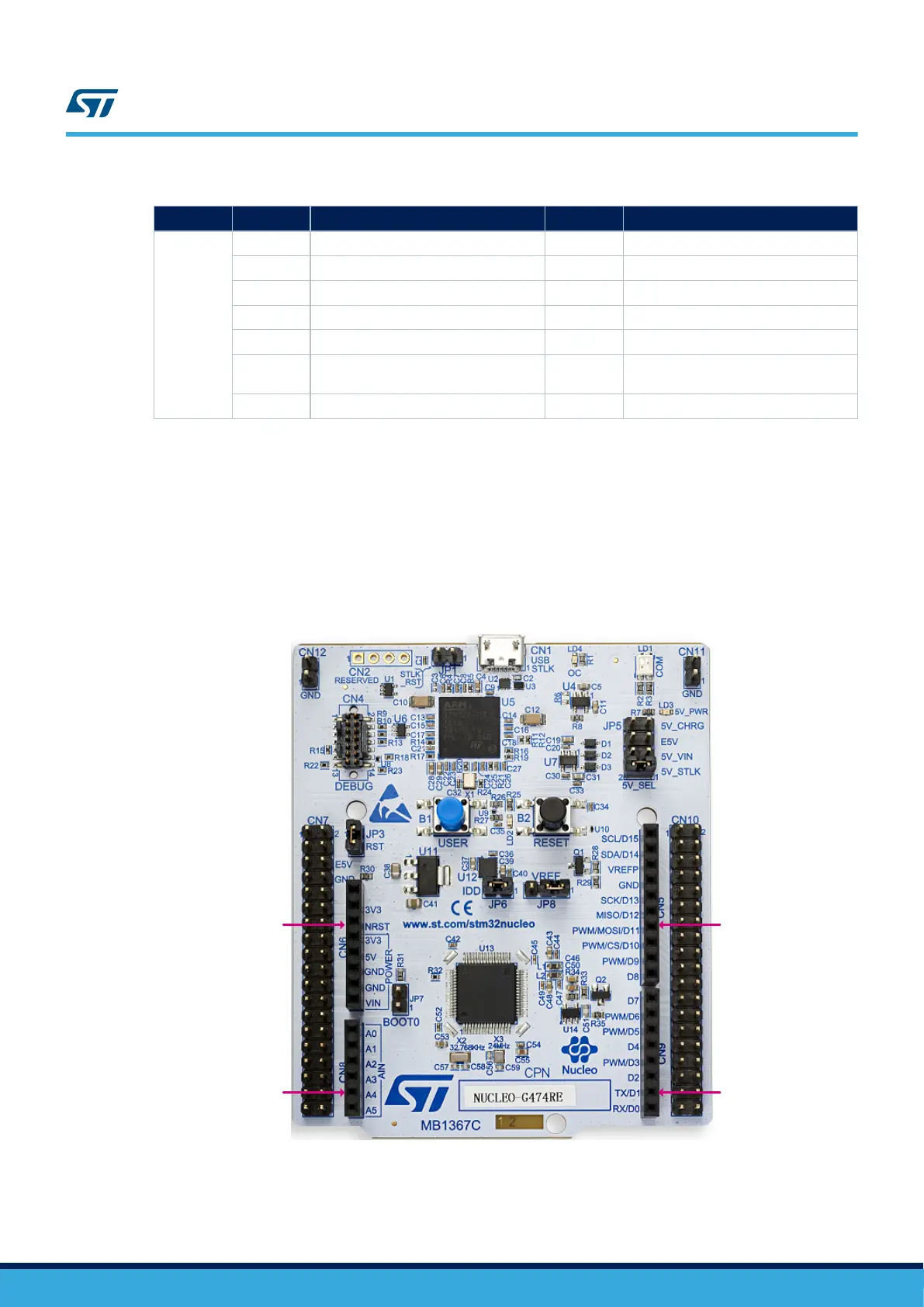

Figure 17. Arduino
™
connectors
CN6
Arduino_PWR
CN8
Arduino_A[0:5]
CN9
Arduino_D[0:7]
CN5
Arduino_D[8:15]
UM2505
Arduino™ Uno V3 connectors CN5, CN6, CN8 and CN9
UM2505 - Rev 2
page 29/43
