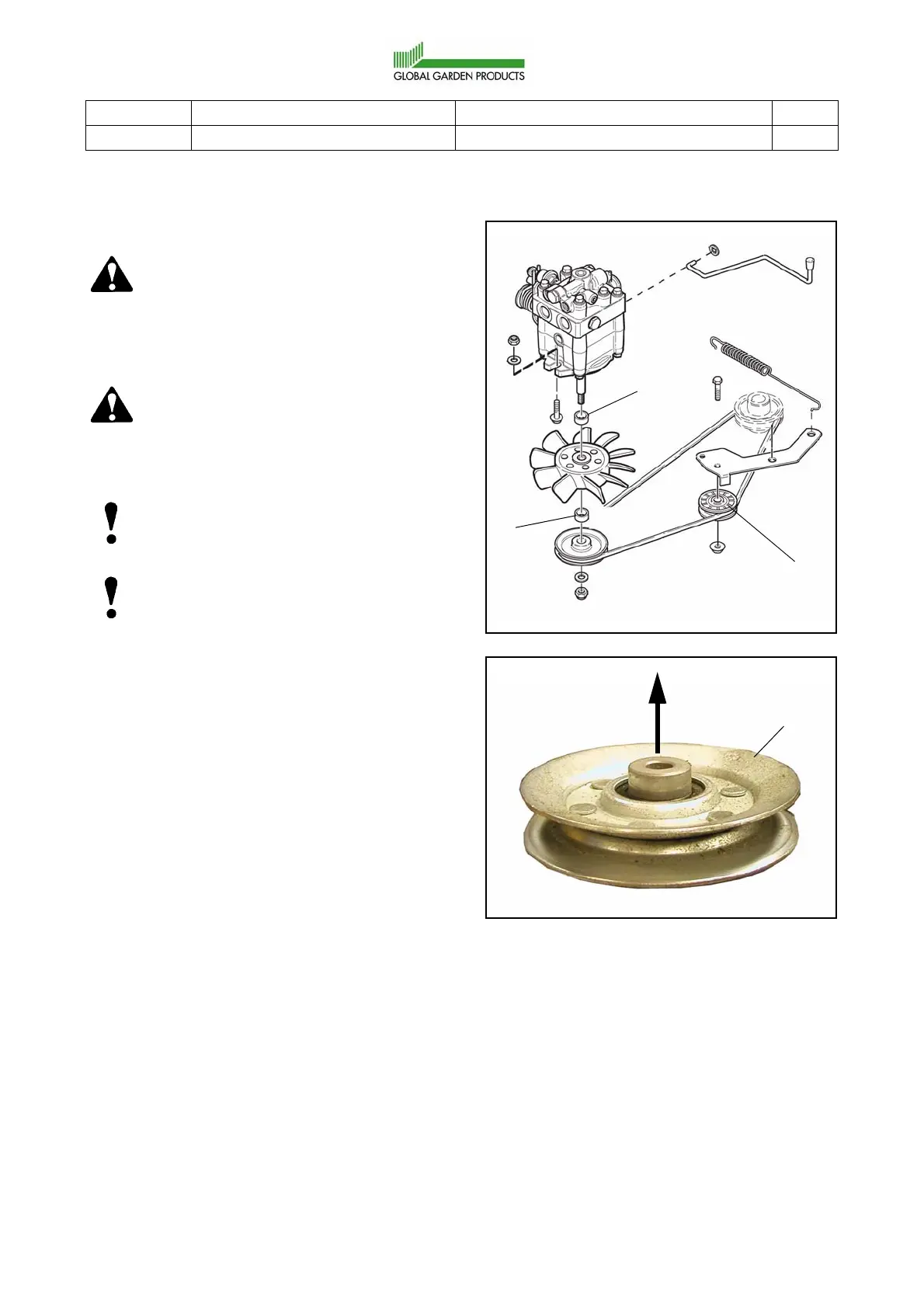

2014-09-09 Workshop Manual, GGP Park 2 Chassis and body 6
2.3.2 Assembly
Warning!
Keep clean when handling hydraulic
parts. Dirt in the oil will cause
malfunctions and breakdowns.
Warning!
Be carefully not to damage the
plastic fan during the assembly.
Assemble all parts in the reverse order.
Note!
One distance sleeve (C) at each side of
the fan.
Note!
The tension pulley (D) shall be fitted with
the prolonged part of the sleeve
upwards. See both figures.
Adjust the speed cable. See section 6.
When all parts are fitted and all actual
tightening torques are applied, fill new oil and
bleed the hydraulic system. See the owners
manual.
C
C
D
Up
D
