Release 00 - 03/2018
Engine RS100 - RSC100
Service manual
General information
The intake system uses an air lter directly connected to the carburettor by means of a manifold which
conveys the air/petrol mixture to the inlet valve.
See the relevant section [
16] for advice on resolving problems due to the malfunctioning of the air
intake system.
Aninefcientltercanletdustordebrisenterthecylinder,causingprematureweartothepistonringsand
cylinder.
The air lter is found on the left hand side of the engine and can be inspected without having to remove
other parts.
The lter assembly is to be removed only to accede the carburettor.
7. INTAKE SYSTEM

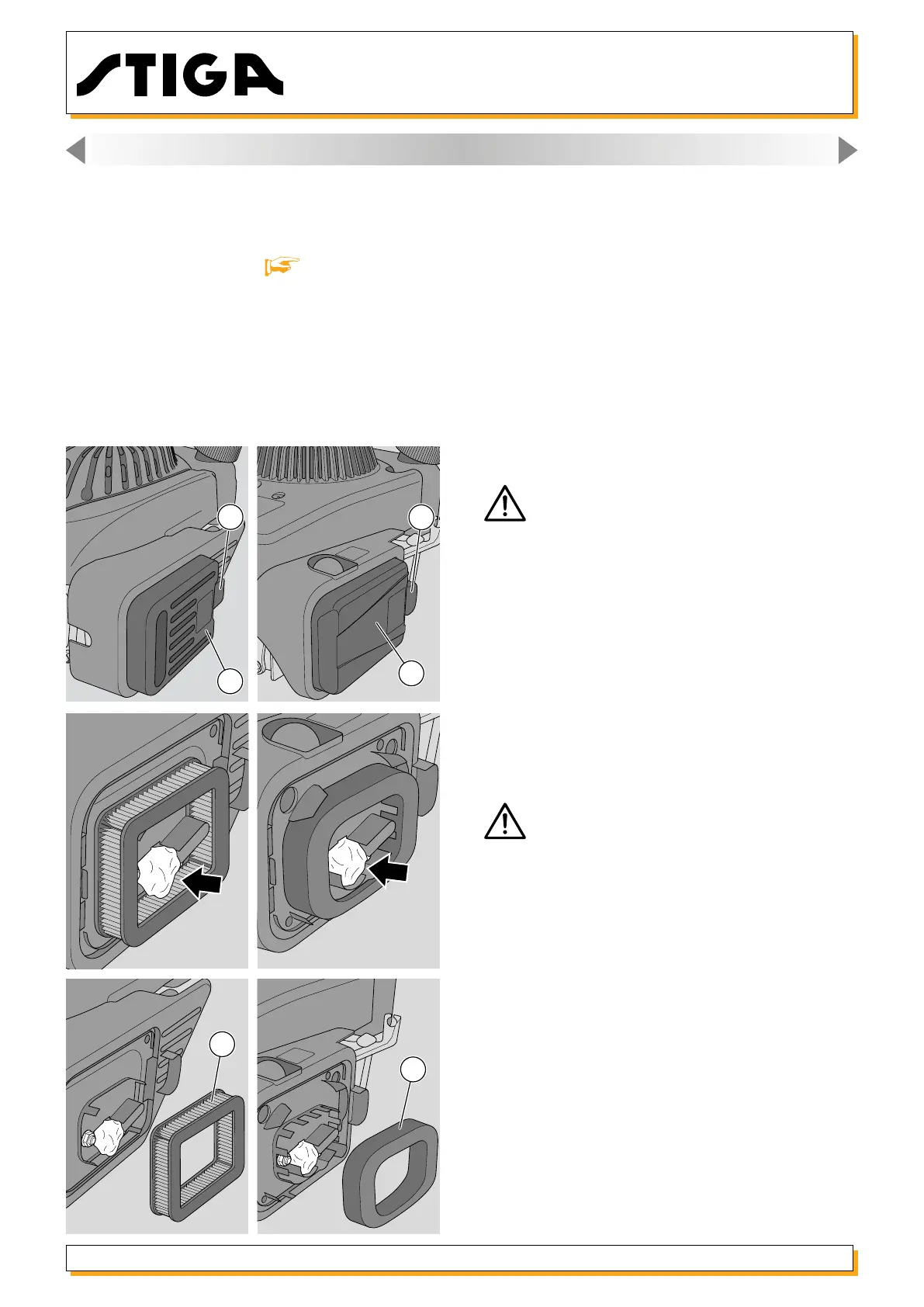

7.1. Maintenance and replacement of the lter
element
WARNING: Never run the engine without air
lter.Theenginewouldcertainlybedama-
ged.
1 - Clean the area around the lter cover (1) by
blowing it with compressed air.
2 - Remove the cover (1) by pressing on the upper
tab (2).
WARNING: Close the intake duct to prevent
theentryofforeignobjects(seegure).
3 - Remove the lter element (3).
4 - Check carefully that the element has no holes
or tears, and replace it, if damaged.
2
2
1
1
3
3
