Release 00 - 03/2018
Engine RS100 - RSC100
page 49
Service manual

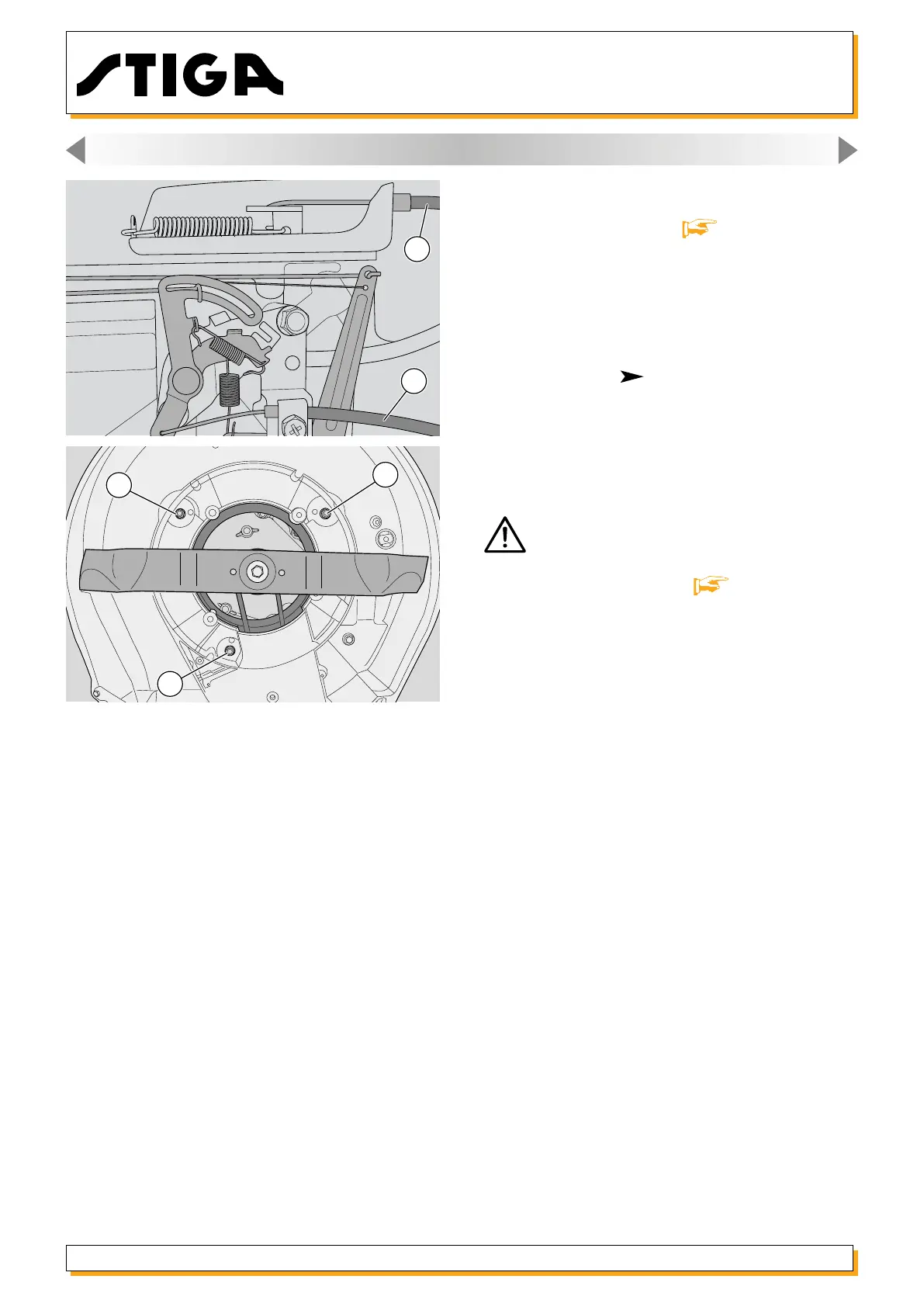

15. ENGINE BLOCK - Overhauling internal parts
15.1. Removing the engine
1 - Empty the tank of fuel [ 5.1].
2 - Drain the oil in the sump by removing the ller
plug and turning the mower on its side.
3 - Disconnect the engine brake cable (1) and the
throttle cable (2) ( RSC100).
4 - Remove the blade assembly and undo the three
screws (3) which are accessible from the bottom
of the lawnmower.
Grasp the engine at points which offer a
secure grip, taking account of the overall weight
given in the relevant table [ 3.2].
3
3
3
1
2
