page 26
Release 00 - 03/2018
Engine RS100 - RSC100
Service manual
SLOW

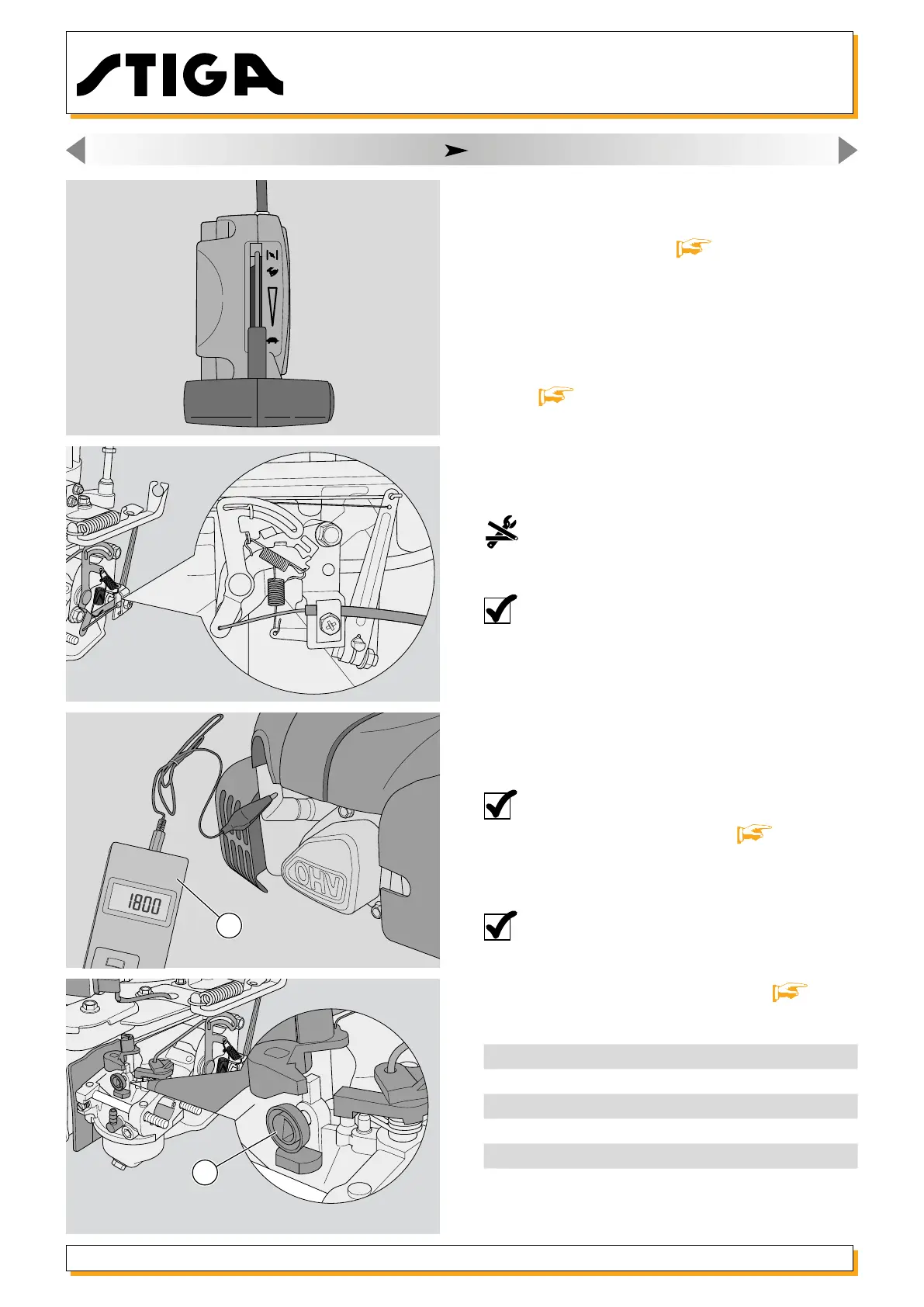

8.2. Replacing the carburettor
1 - Perform operations 1 - 2 - 3 - 4 - 5 - 6 - 12 - 13 - 14
- 15 indicated in section [
8.1] above.
8.3. Adjusting minimum speed
1 - Check that the throttle cable is adjusted cor-
rectly [
10.1].
2 - Let the engine heat up for a few minutes, then
set the throttle control to “SLOW”.
Check the rotation speed on the speed indi-
cator (23).
NOTE: The engine’s minimum speed must be
between 1800 (±100) rpm.
3 - Turn the screw (24) until you achieve a stable
minimum speed within the above values.
8.4. Adjusting maximum speed
NOTE: This operation is carried out by adju-
sting the governor system [ 10.2].
8.5. Adjusting the carburation
NOTE: The carburation is set in the factory
and does not normally need changing. In the
event of irregular functioning, clean the car-
burettor as indicated in section [ 8.1].
Tightening torques
1 Carburettor nuts/lter 6-8 Nm
Technical information
Minimum speed (SLOW) 1800 (±100) g/1’
Special equipment
23 Speed indicator
8. CARBURATION ( valid for RSC100 model)
23
24
