WORKSHOP MANUAL

T...102/122 - TC...102/122

Map of functional units

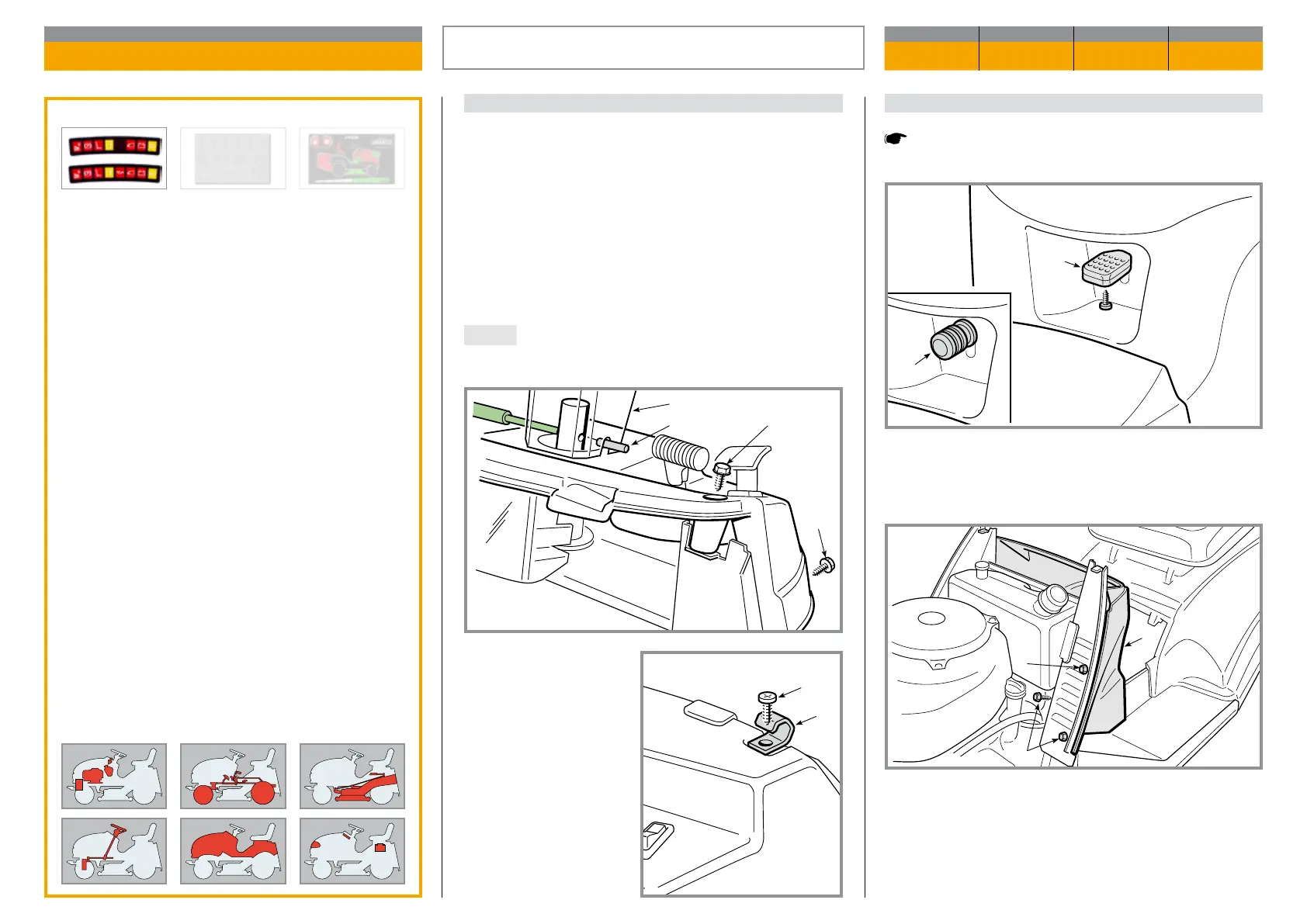

B) Removing the front cover

Remove the dashboard [see point “A”].

Remove the parking brake lever knob (11) or (12) and

dismantle the front guard (13) xed to the chassis by

six screws (14).

A) Removing the dashboard

Use a 5 mm diameter round bar to remove the pin (1)

and take out the steering wheel (2).

Disconnect the end of the accelerator cable from the

engine and disconnect all electrical connections and

the starter cable (where tted).

At this point it is possible to remove the dashboard,

which is xed to the frame by four self-threading

screws (3) and (4).

NOTE The screws (3) are covered by pla stic caps on

some models.

On reassembly, on

some models, the di-

rection of the springs

(5) must be adjusted

in relation to the po-

sition of the hood, to

ensure fastening.

Validity

General informations

The dashboard is removed to make the following

mo re accessible:

– the accelerator;

– the ignition block,

– various electrical components.

With some drives it could be necessary to re

move the dashboard before it is possible to dis

mantle the fuel tank.
