WORKSHOP MANUAL
T...102/122 - TC...102/122
Map of functional units
















 


 


NC - 3
NO - 2
C

NO - 2
NC - 3
C
Validity
General informations

Related topics
---
CHAPTER REVISION FROM ... PAGE
7.9 0 2018 1 of 1

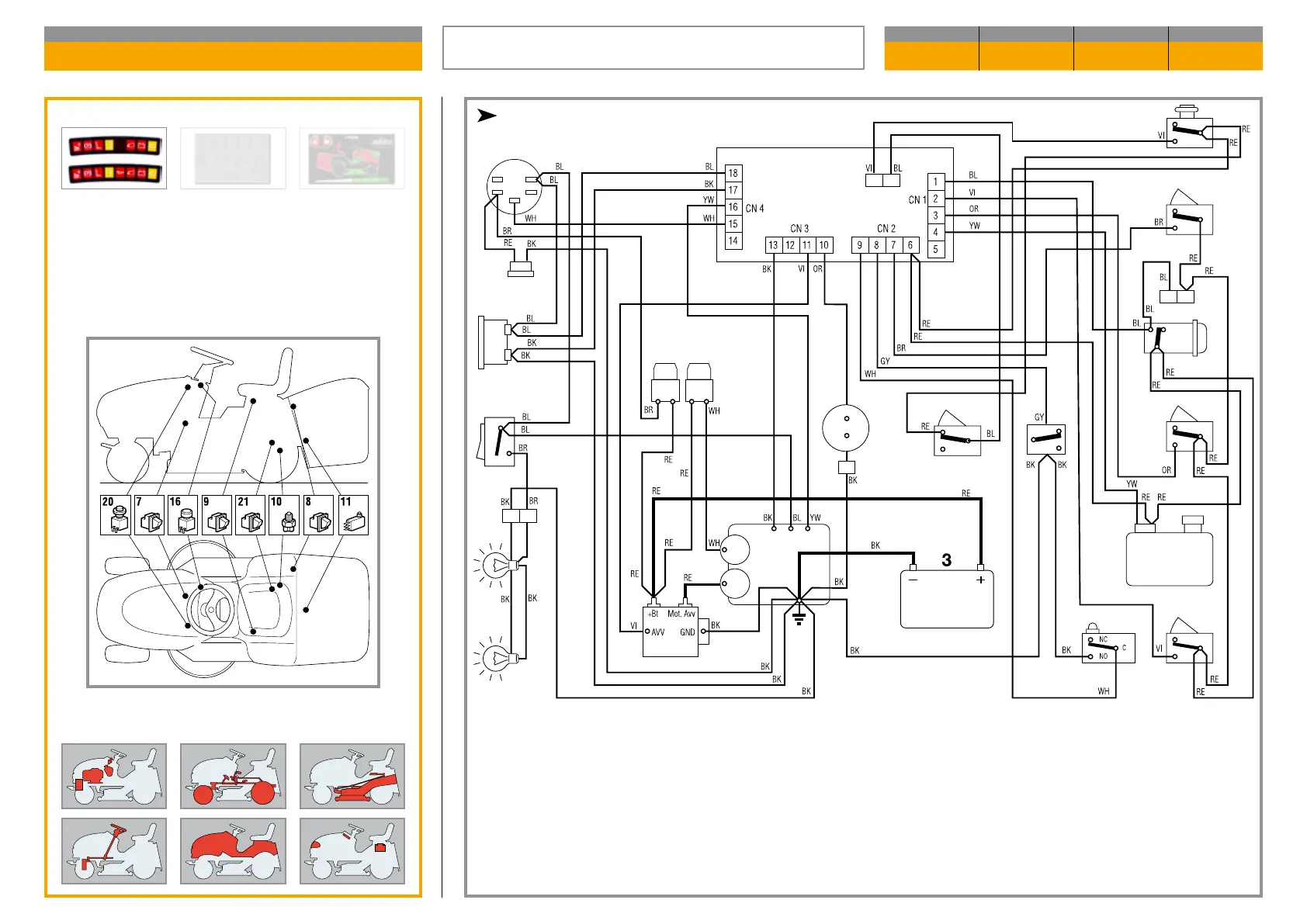

ELECTRICAL DIAGRAMS
Engines: B&S - Kawasaki
1 Electronic card
2 Engine
2a Generator
2b Starter
2c Engine stop
2d Carburettor
2e Oil
3 Battery
4 Starter relay
5 Key ignition switch
7 Brake microswitch
8 Grasscatcher microswitch
9 Microswith operator present
10 Neutral microswitch
11 Grass-catcher full microswitch
12 Recharge connector
13 Lights switch
14 Light
15 Hour counter
16 Clutch switch
17 Clutch
18 Fuel tank
19a 10 A Fuse
19b 25 A Fuse
20 Reverse consent button
21 Reverse gear microswitch
CABLE COLOURS
BK Black
BL Blue
BR Brown
GY Grey
OR Orange
RE Red
VI Violet
YW Yellow
WH White
