Stiga T 102 Series - TIGHTENING TORQUES AND ADJUSTMENTS SUMMARY; A) Tightening torques; B) Adjustments

WORKSHOP MANUAL
T...102/122 - TC...102/122
Map of functional units

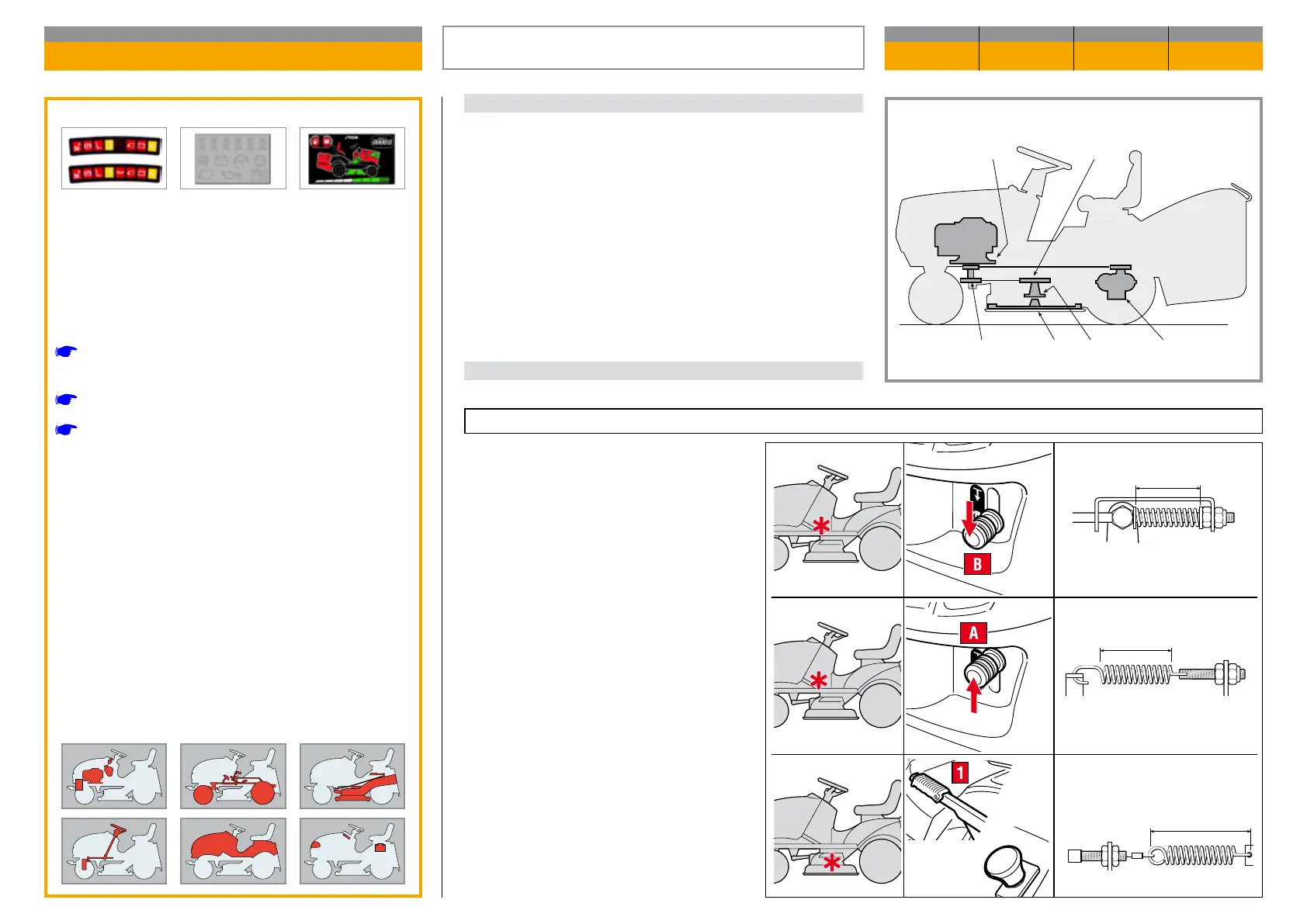

A) Tightening torques
Below are the specied tightening torques for the x ing
bolts on the main parts.
1 Screws for engine fastening ................. 25 ÷ 30 Nm
2 Screw for engine pulley ........................ 45 ÷ 50 Nm
3 Screws for rear axle fastening .............. 25 ÷ 30 Nm
4 Blade pulley screws ............................. 25 ÷ 30 Nm
5 Flanged support xing nuts .................. 25 ÷ 30 Nm
6 Screw for blade .................................... 45 ÷ 50 Nm
Every section in this manual gives values for all the com-
ponents involved in each operation.
B) Adjustments
TIGHTENING TORQUES AND ADJUSTMENTS
SUMMARY
CHAPTER REVISION FROM ... PAGE
8.1 0 2018 1 of 1
Validity
General informations

Related topics
[
4.1] Adjusting the engagement and checking
the blade brake
[
4.2] Brake adjustment
[
4.3] Drive belt adjustment
 
  
45-47
A
Mod. 102 A = 113-115
Mod. 122 A = 90-91
109-111
a) Brake adjustment
b) Drive belt adjustment
c) Blades engagement adjustment
Operation Position Position of controls Adjustment
