FS 100, FS 100 R
English
14
Mounting Bike Handle with Swivelling
Handle Support
The machine is supplied with the
swiveling handle support already
mounted on the shaft. To mount the
handlebar it is necessary to remove the
clamp moldings.

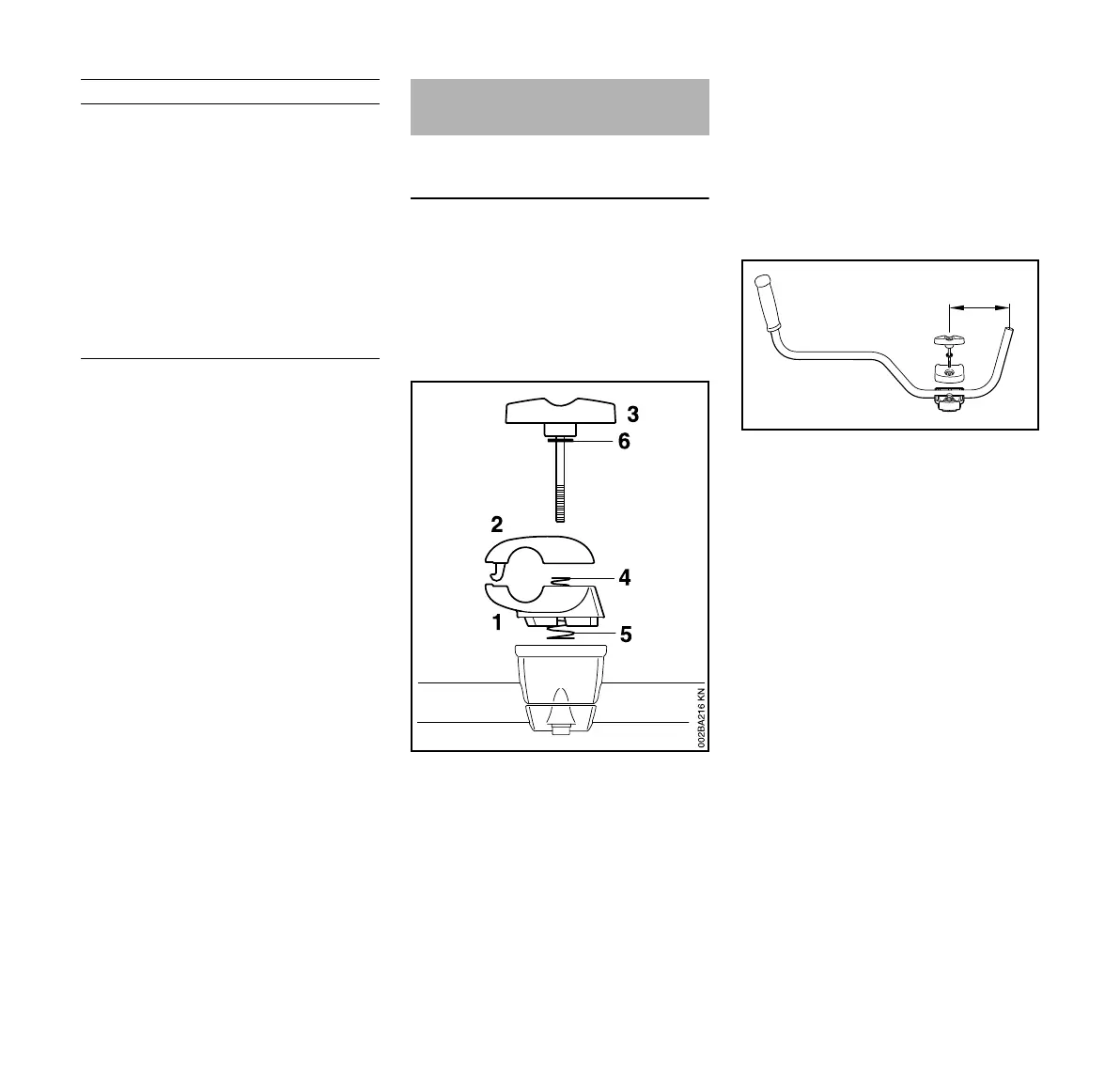

Removing the clamp moldings
N Hold the lower clamp (1) and upper
clamp (2) firmly together.
N Release the wing screw (3) – the
clamps are loose once the wing
screw has been released. They are
pushed apart by the two
springs (4 and 5).
N Pull out the wing screw – the
washer (6) remains on the wing
screw.
N Separate the clamp moldings – the
springs (4 and 5) remain in the
lower clamp.
Securing the handlebar
N Place the handlebar (7) in the lower
clamp (1) so that distance A is no
more than 15 cm (6 in).
N Place the upper clamp in position
and hold both clamp moldings
together.
N Push the wing screw through the
two clamps as far as stop – hold all
parts together and secure them.
Attachment
1)
Unsuitable for models with bike
handle
2)
Limited suitability for models with
bike handle
3)
It is not necessary to use the
shoulder strap
4)
Use the handle hose supplied with
the machine
Application
BF Pick tines
FCS
2) 3)
Edger
FH Power scythe,
adjustable
HL 0°
1)
Long reach hedge
trimmer
HL 135°
2)
Hedge trimmer,
adjustable
HT
1)
Pole pruners
SP
1) 4)
Special harvester
SP 10
1)
Special harvester
Mounting the Bike Handle
1
7
A
250BA046 KN
