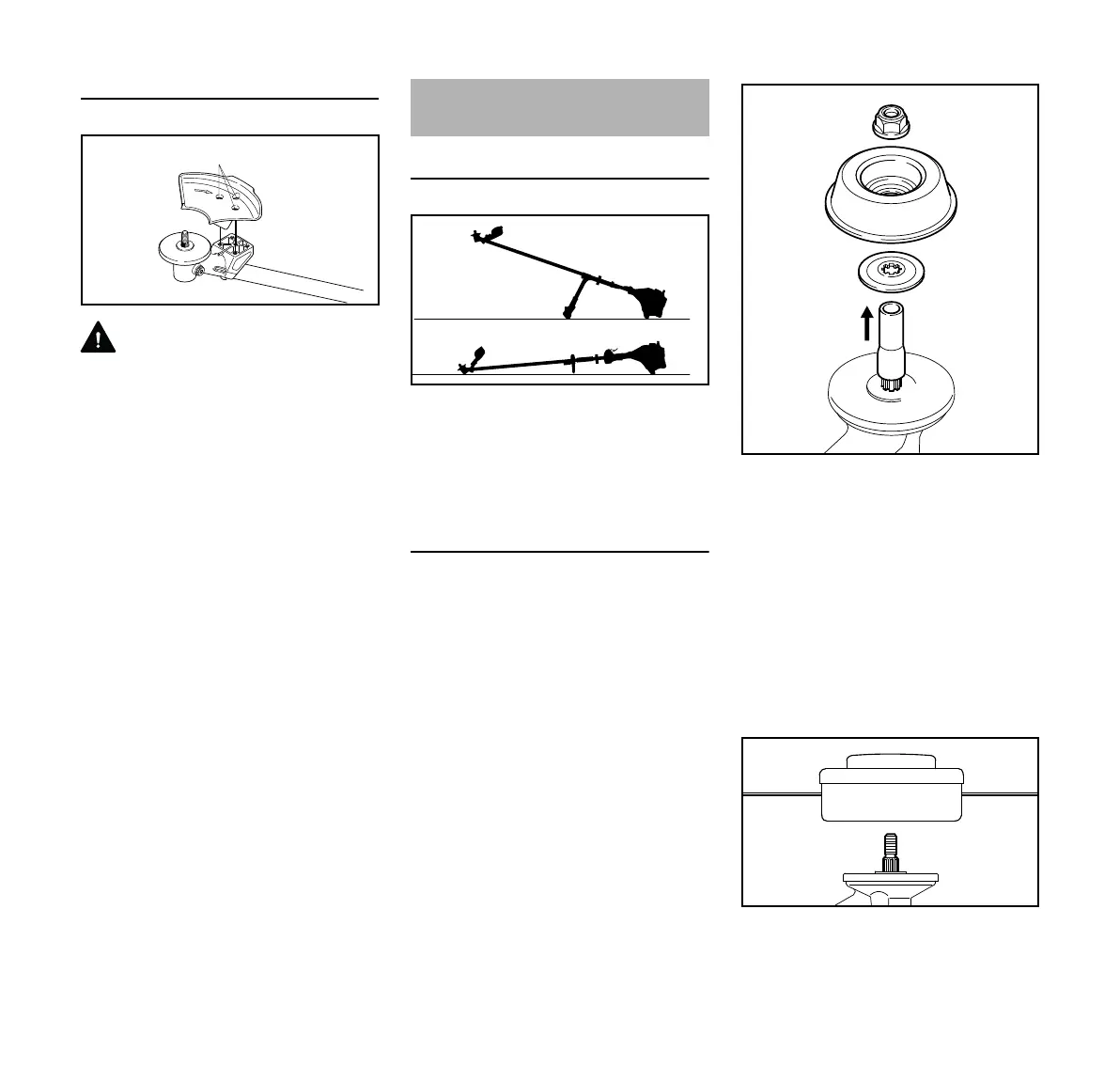

Mounting the Limit Stop
WARNING
Always fit the limit stop (6) when you use
a circular saw blade.
N Position the limit stop (6) on the
gearbox flange.
N Insert the screws (7) and tighten
them down firmly.
Placing power tool on the ground
N Shut off the engine.
N Lay your power tool on its back so
that the cutting attachment
mounting face is pointing up.
Mounting Hardware for Cutting
Attachments
The mounting hardware supplied
depends on the cutting attachment that
comes as original equipment with the
new machine.
Machine supplied with mounting
hardware
Mowing heads and metal cutting
attachments may be mounted.
Depending on the cutting attachment, it
may be necessary to use the nut (3),
rider plate (4) and thrust washer (5).
These parts are included in a kit
supplied with the machine and are also
available as special accessories.
Removing the transport lock
N Pull the hose (1) off the shaft (2).
Machine supplied without mounting
hardware
Only mowing heads may be used which
mount directly to the shaft (2).
7
002BA382 KN
6
Mounting the Cutting
Attachment
002BA104 KN
2
002BA164 KN
1
3
4
5
2
002BA266 KN
