FS 100, FS 100 R
English
18

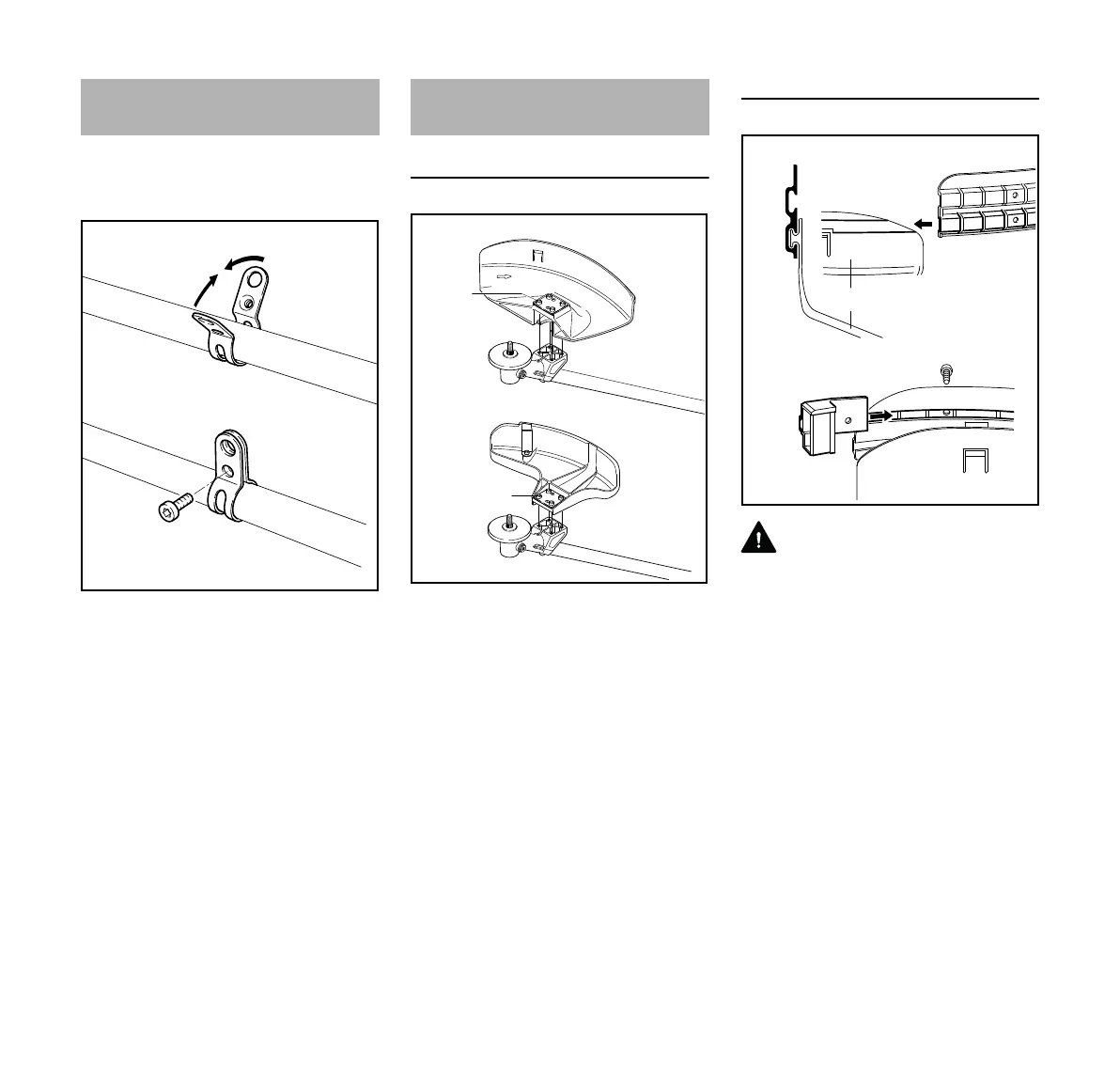

The carrying ring comes standard with
the machine or is available as a special
accessory.
For position of carrying ring see "Main
Parts".
N Place the clamp (1) against the
drive tube with the tapped hole on
the left (viewed from engine).
N Squeeze the two ends of the clamp
together and hold in that position.
N Insert the M6x14 screw (2).
N Line up the carrying ring.
N Tighten down the screw firmly.
Mounting the Deflector
1 Deflector for mowing attachments
2 Deflector for mowing heads
Deflectors (1 and 2) are both mounted to
the gearbox in the same way.
N Place the deflector on the gearbox
flange.
N Insert the screws (3) and tighten
them down firmly.
Fitting the Skirt and Blade
WARNING
These parts must be fitted to the
deflector (1) when you use a mowing
head.
N Slide the lower guide slot of the skirt
(4) onto the deflector (1) – it must
snap into position.
N Push the blade (5) into the upper
guide slot on the skirt and line it up
with the first hole.
N Insert the screw and tighten it down
firmly.
Fitting the Carrying Ring
002BA142 KN
1
2
1
Mounting the Deflector
002BA380 KN
2
1
3
3
4
1
5
4
002BA103 KN
