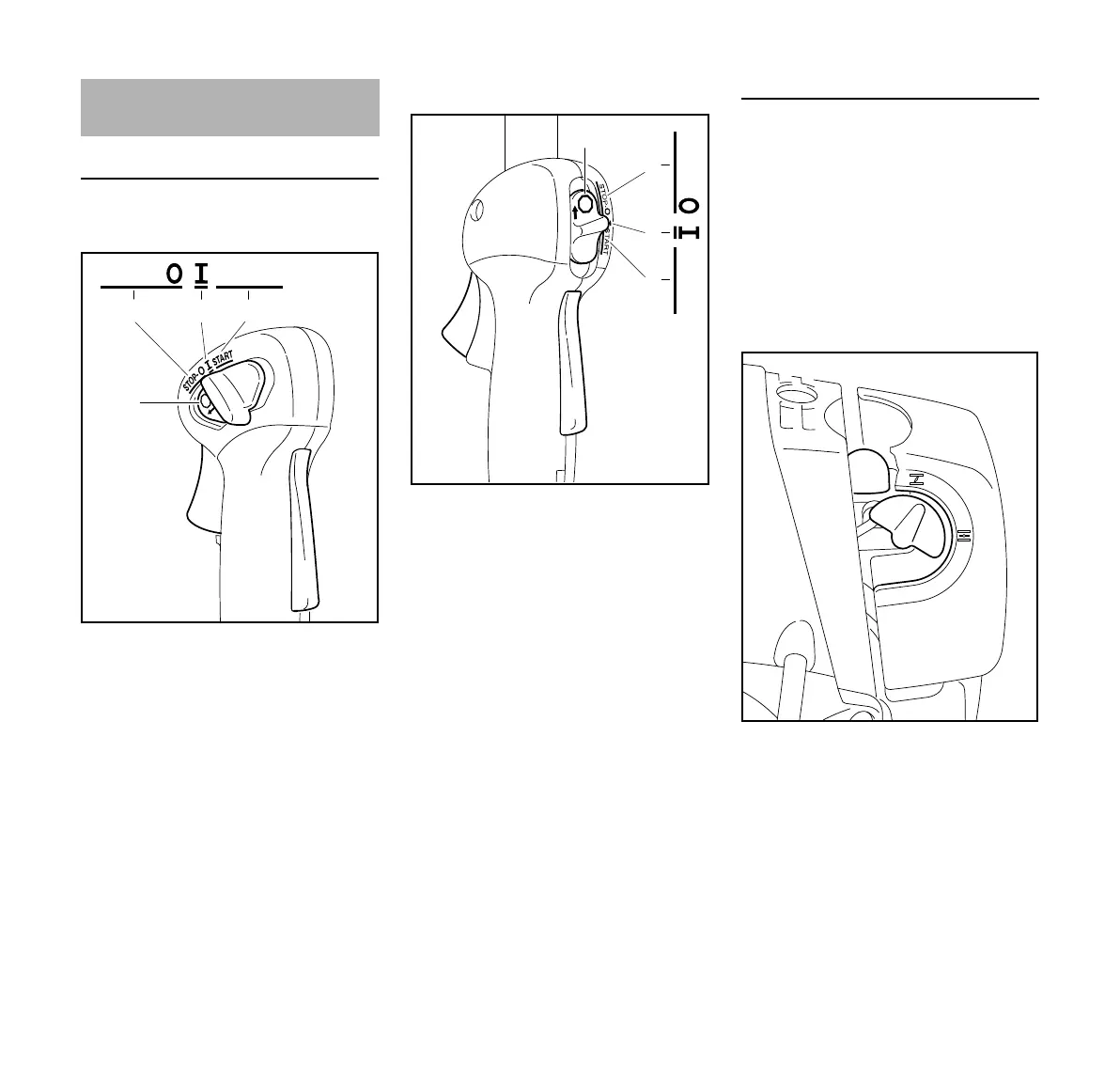

Operating elements
Control handle on handlebar
1 Throttle lever lock
2 Throttle trigger
3 Slide control
Control handle on shaft
1 Throttle lever lock
2 Throttle trigger
3 Slide control
Slide control positions
4STOP-0 – engine off – ignition is
switched off
5 Operating position F – Run – engine
is running or can start
6START – Start – the ignition is
switched on – the engine can be
started
Symbol on slide control
7 h – Stop sign and arrow – to switch
off the engine, push the slide control
in the direction of the arrow at the
stop sign (h) to STOP-0
Starting
N Press the throttle trigger lockout and
throttle trigger in succession
N Hold both triggers down
N Move the slide control to START
and hold it in position too
N Release the throttle trigger, slide
control and throttle trigger lockout in
succession = starting throttle
position
N Set the choke knob (8)
N Press the manual fuel pump
bulb (9) at least 5 times - even when
bulb is filled with fuel
Starting / Stopping the
Engine
3
STOP
56
4
7
002BA182 KN
1
2
START
STOP-
3
STOP
2
5
6
4
7
002BA181 KN
START
STOP-
1
g If the engine is cold
e If the engine is warm – even if the
engine has already run but is still
cold
249BA057 KN
9
8
