Stihl FS 100 Instruction Manual

FS 100, FS 100 R
English
40

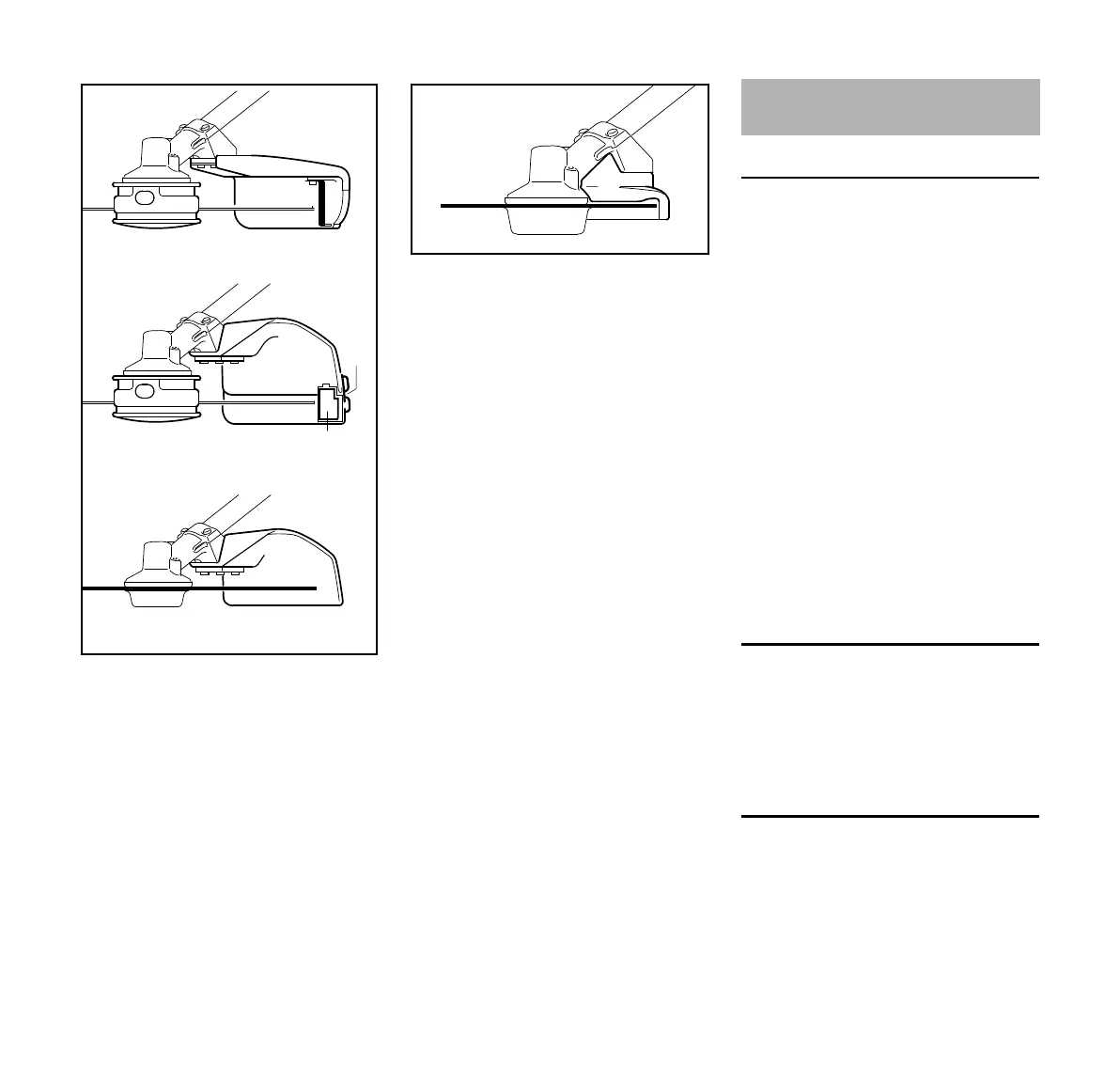

1 Mowing head
2 Deflector for mowing heads only
3 Blade
4 Deflector for all mowing
attachments
5 Skirt
6 Metal mowing attachment
7 Circular saw blade
8 Limit stop for circular saw blades
only
Engine
STIHL one-cylinder, four-stroke engine
with mixture lubrication
Ignition system
Electronic magneto ignition
Fuel system
All position diaphragm carburetor with
integral fuel pump
5
2
002BA394 KN
1
3
3
6
4
1
4
002BA395 KN
8
7
Specifications
Displacement: 31.4 cm
3
Cylinder bore: 40 mm
Piston stroke: 25 mm
Engine power
according to
ISO 8893:
1.05 kW
(1.40 HP) at
7000 rpm
Idling speed: 2800 rpm
Cut-off speed (nomi
-
nal value): 10200 rpm
Max. output shaft
speed (cutting attach
-
ment mount): 7500 rpm
Valve clearance
Inlet valve: 0.10 mm
Exhaust valve: 0.10 mm
Spark plug
(suppressed): Bosch USR 7 AC
Electrode gap: 0.5 mm
Fuel tank capacity: 530 cm
3
(0.53 l)
