Stihl FS 130 R User Manual

FS 130, FS 130 R
English
20

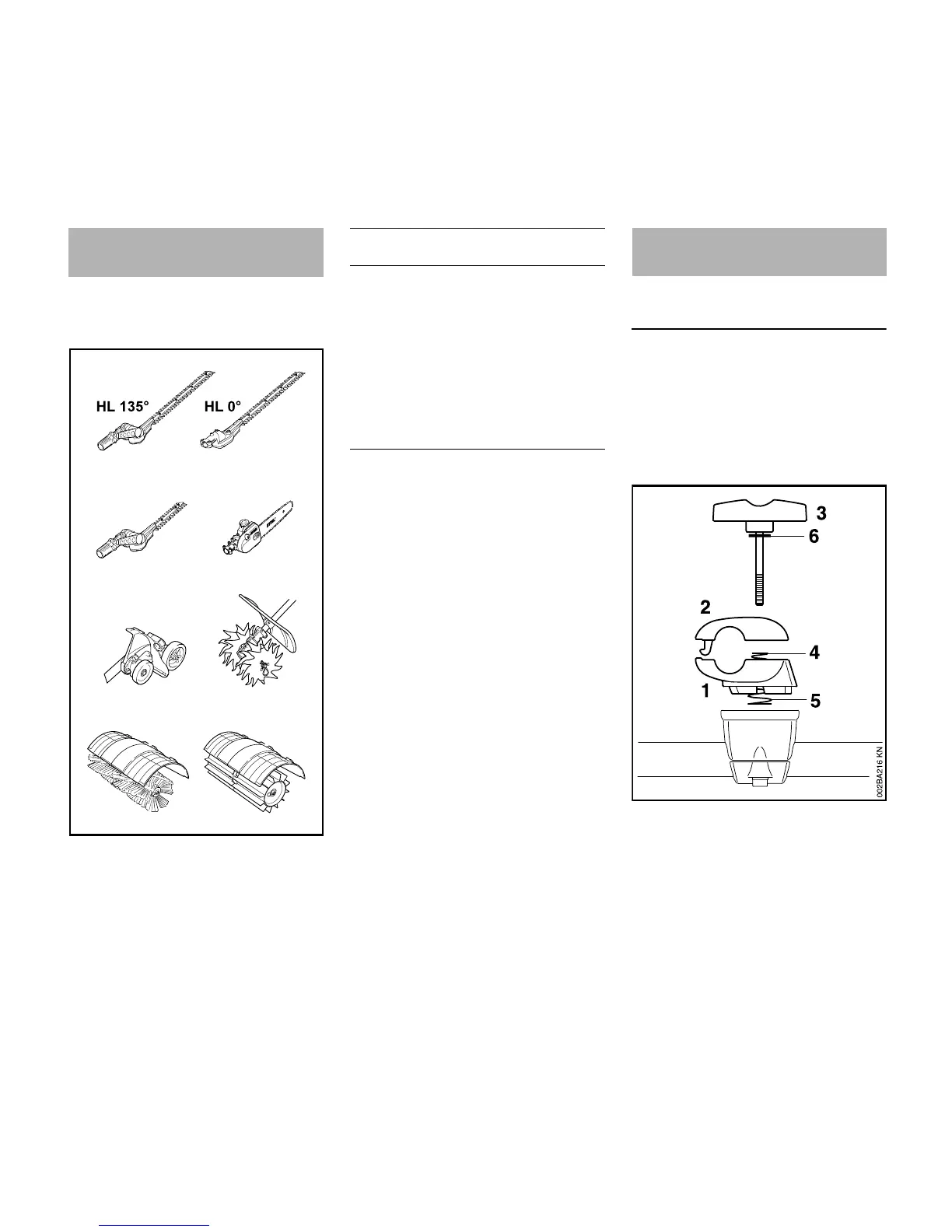

The following STIHL interchangeable
attachments may be mounted on the
basic machine:
Mounting Bike Handle with Swiveling
Handle Support
The machine is supplied with the
swiveling handle support already
mounted on the shaft. To mount the
handlebar it is necessary to remove the
clamp moldings.
Removing the Clamp Moldings
N Hold the lower clamp (1) and upper
clamp (2) firmly together.
N Release the wing screw (3) – the
clamps are loose once the wing
screw has been released. They are
pushed apart by the two springs (4
and 5).
Approved Power Tool
Attachments
228BA047 KN
BF
FH
FCS
KB
KW
HT
Interchangeable
attachment
1)
stop (barrier bar) on loop handle is
required
2)
not approved for machines with
bicycle handle
3)
harness need not be used
Use
BF
1)
Soil cultivator
FCS
2) 3)
Edger
FH
1)
Scrub cutter
HL 0°
2)
Hedge trimmer
HL 135°
1) 2)
Hedge trimmer
HT
2)
Pole pruner
KB (4601)
2)
Bristle brush
KW (4601)
2)
Sweeper drum
assembly
Mounting the Bike Handle
