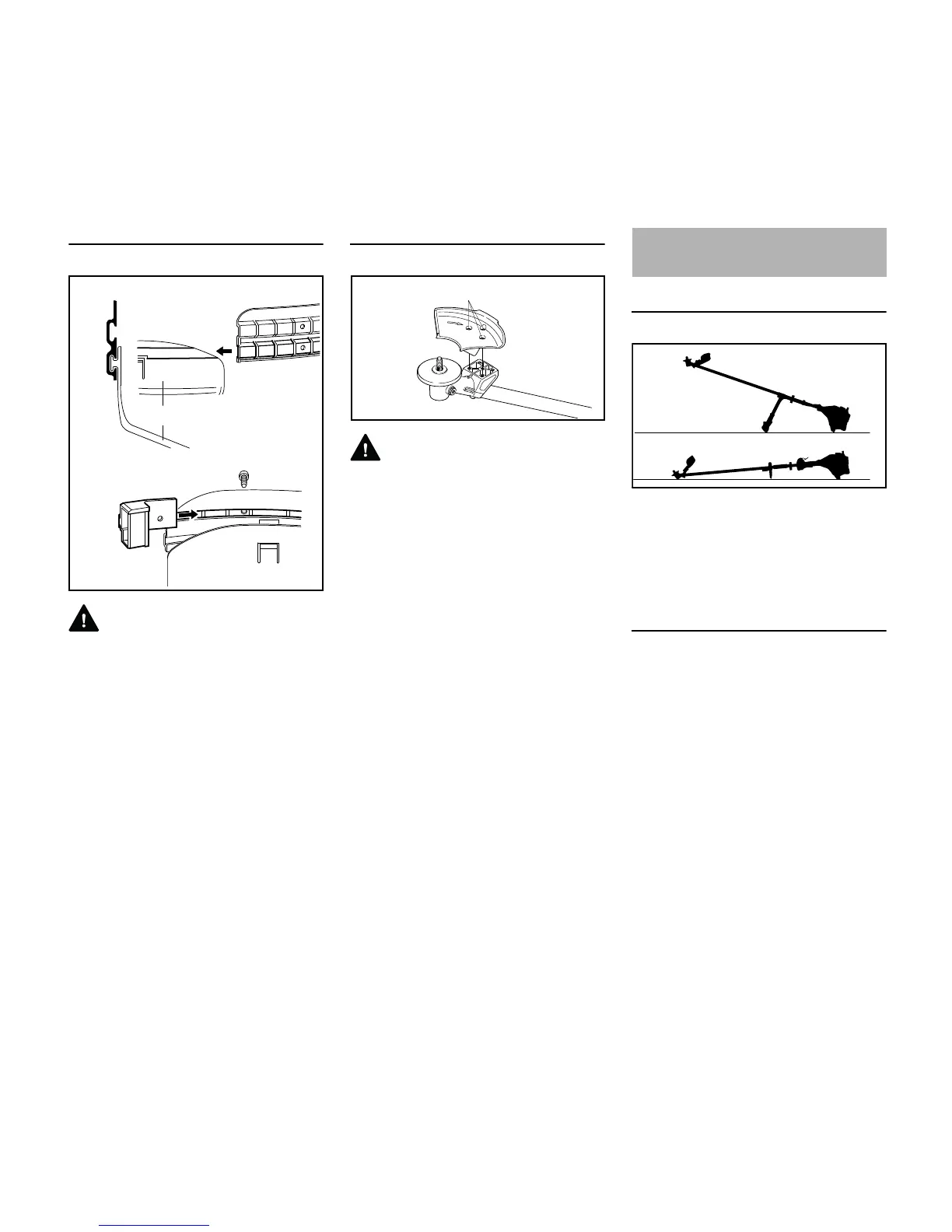

Fitting the Skirt and Blade
WARNING
These parts must be fitted to the
deflector (1) when you use a mowing
head.
N Slide the lower guide slot of the skirt
(4) onto the deflector (1) – it must
snap into position.
N Push the blade (5) into the upper
guide slot on the skirt and line it up
with the first hole.
N Insert the screw and tighten it down
firmly.
Mounting the Limit Stop
WARNING
Always fit the limit stop (6) when you use
a circular saw blade.
N Position the limit stop (6) on the
gearbox flange.
N Insert the screws (7) and tighten
them down firmly.
Placing power tool on the ground
N Shut off the engine.
N Lay your power tool on its back so
that the cutting attachment
mounting face is pointing up.
Mounting Hardware for Cutting
Attachments
The mounting hardware supplied
depends on the cutting attachment that
comes as original equipment with the
new machine.
If mounting hardware is packed with
machine
Mowing heads and metal cutting
attachments may be mounted.
4
1
5
4
002BA103 KN
7
002BA382 KN
6
Mounting the Cutting
Attachment
002BA104 KN
