Stihl FS 130 R User Manual

FS 130, FS 130 R
English
46
1 Fuel Filler Cap
2 Carburetor Adjusting Screws
3 Starter Grip
4 Spark Plug Boot
5 Muffler with Spark Arresting Screen
6 Bike Handle
7 Throttle Trigger
8 Slide Control
9 Throttle Trigger Lockout
10 Throttle Cable Retainer
11 Carrying Ring
12 Manual Fuel Pump
13 Choke Knob
14 Air Filter Cover
15 Fuel Tank
16 Machine Support
17 Handle Support
18 Wing Screw
19 Loop Handle
20 Barrier Bar
# Serial Number

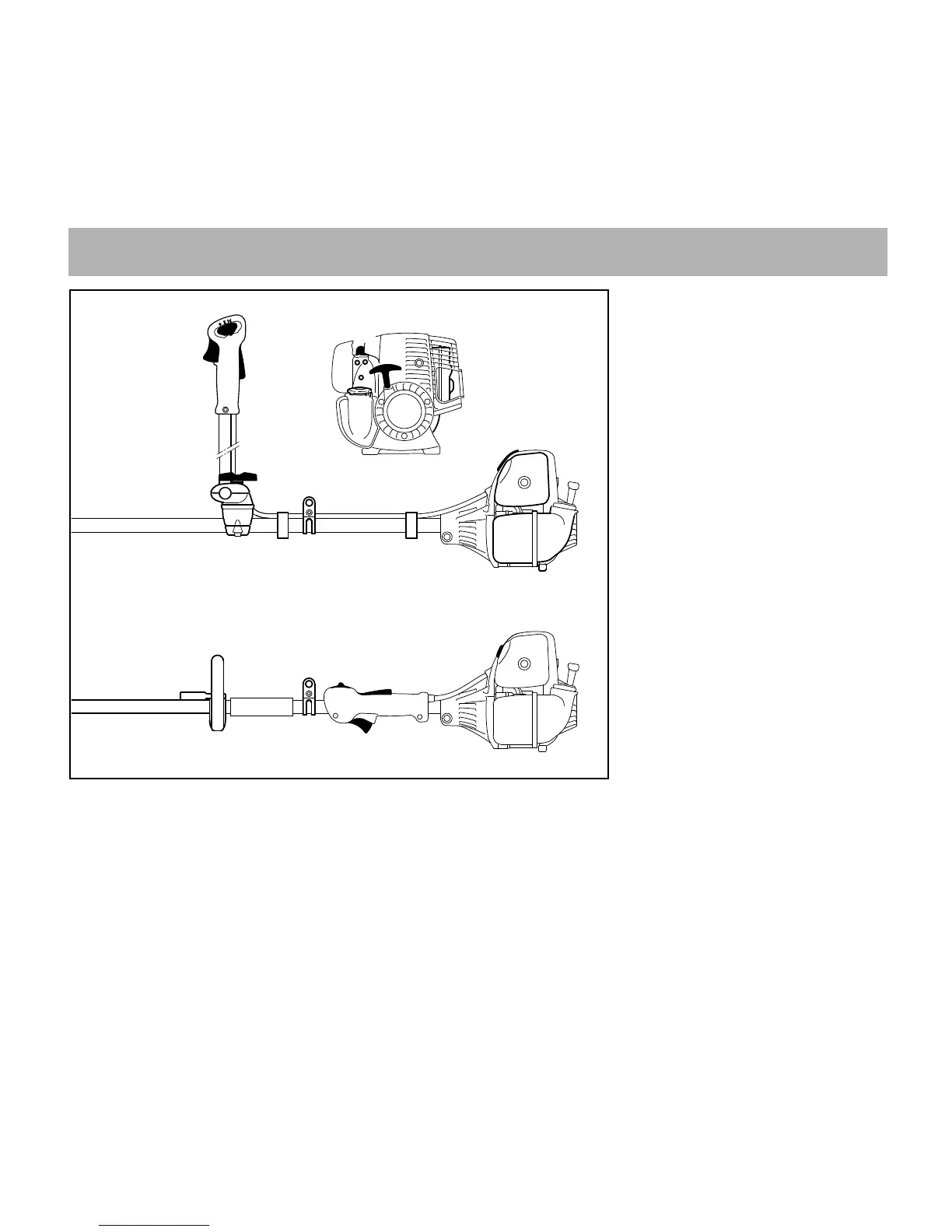

Main Parts
18
1
4
14
12
3
17
10
6
7
8
9
10
11
8
9
7
19
20
249BA062 KN
#
2
5
15
16
13
11
