Stihl FS 130 R User Manual

FS 130, FS 130 R
English
33

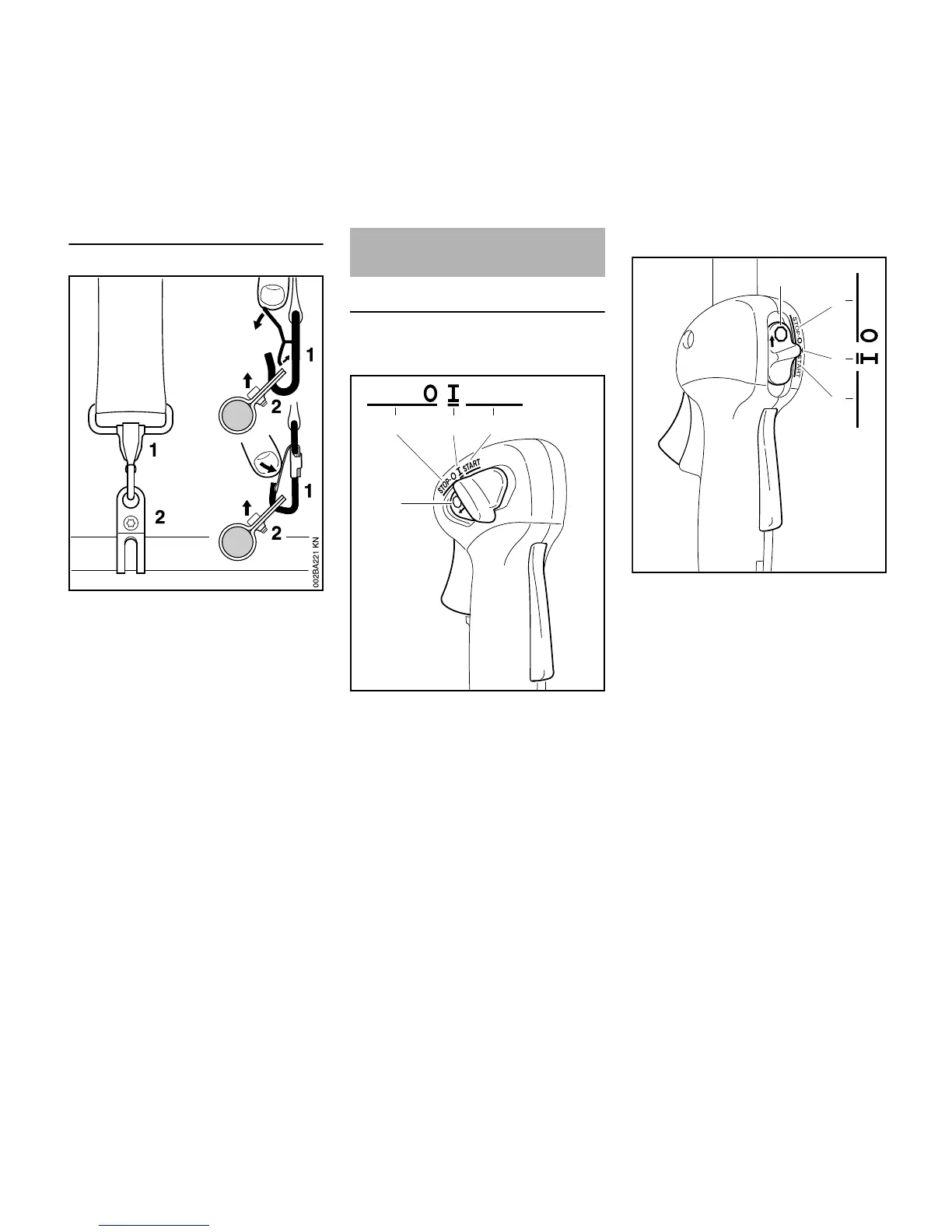

Detaching the unit from the harness
N Press down the bar on the
carabiner (1) and pull the carrying
ring (2) out of the carabiner.
Controls
Control handle on handlebar
1 Throttle trigger lockout
2 Throttle trigger
3 Slide control
Control handle on drive tube
1 Throttle trigger lockout
2 Throttle trigger
3 Slide control
Positions of slide control
4STOP-0 – engine off – ignition is
switched off
5 F – normal run position – the engine
is running or can start
6START – ignition is switched on –
the engine can start
Symbol on slide control
7 h – stop symbol and arrow. To stop
the engine, push the slide control in
the direction of the arrow on the stop
symbol (h) to STOP-0.
Starting / Stopping the
Engine
3
STOP
56
4
7
002BA182 KN
1
2
START
STOP-
3
STOP
2
5
6
4
7
002BA181 KN
START
STOP-
1
