N Push the throttle cable (14) into the
retainers (15).

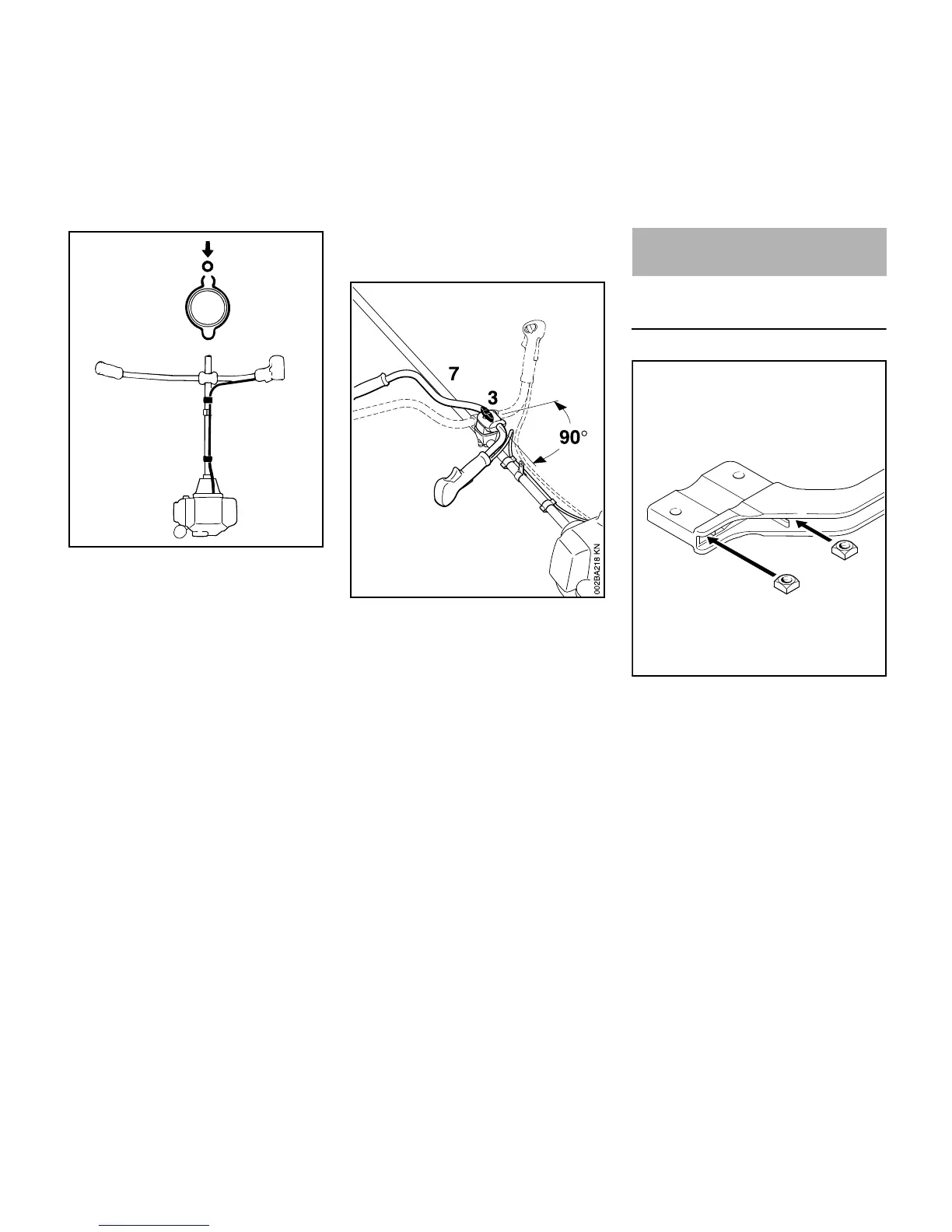

Adjusting the Throttle Cable
N Check adjustment of throttle cable –
see chapter on "Adjusting the
Throttle Cable".
Swiveling the Handlebar
Transport position
N Loosen the wing screw (3) and
unscrew it until the handlebar (7)
can be turned clockwise.
N Turn the handlebar 90° and then
swing the handles down.
N Tighten down the wing screw (3)
firmly.
Working position
N Reverse the sequence described
above to swing the handles up and
turn the handlebar
counterclockwise.
Mounting the Loop Handle with Barrier
Bar
N Fit the square nuts (1) in the barrier
bar (2); the holes must line up.
15
14
15
14
15
250BA002 KN
Mounting the Loop Handle
2
002BA098 KN
1
1
