Stihl FS 510 C-M User Manual

FS 510 C-M, FS 560 C-M
English
17

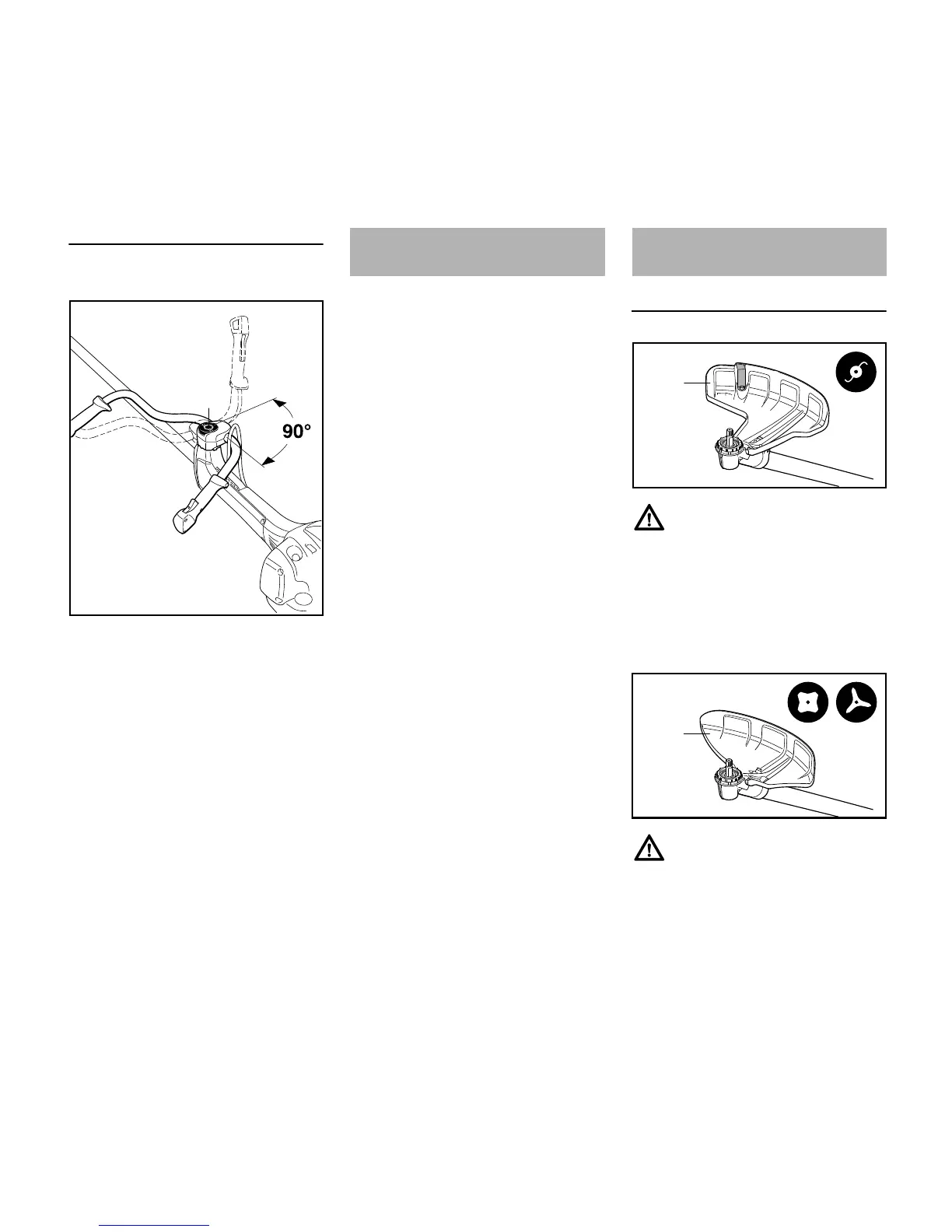

Swiveling the Handlebar
Transport position
N Loosen the wing screw (8) and
unscrew it until the handlebar (2)
can be turned clockwise.
N Turn the handlebar 90° and then
swing the handles down.
N Tighten down the wing screw (8)
firmly.
Working position
N Reverse the sequence described
above to swing the handles up and
turn the handlebar
counterclockwise.
Correct adjustment of the throttle cable
is a preconditon for correct operation of
the machine in all modes, from starting
to full throttle.
It may be necessary to readjust the
throttle cable after assembling the
machine or after a prolonged period of
operation.
– The throttle cable can checked and
adjusted by the user: see
"Inspection and Maintenance by
User".
– The throttle cable can be checked
and adjusted by your dealer. Have
the machine repaired by your
servicing dealer. STIHL
recommends a STIHL servicing
dealer.
Use the Right Deflector
Deflector (1) is approved for mowing
heads only and must therefore be
mounted before fitting a mowing head.
Recommendation: Use mowing heads
with a grass shield on the gearbox, see
chapters on "Mounting the Deflector" /
"Mounting the Grass Shield".
Deflector (2) is approved for grass
cutting blades and brush knives only and
must therefore be mounted before fitting
a grass cutting blade or brush knife.
4900BA015 KN
2
8
Adjusting the Throttle Cable Mounting the Deflector
1
002BA461 KN
2
002BA462 KN
