Stihl FS 510 C-M User Manual

FS 510 C-M, FS 560 C-M
English
21
chapters "Mounting the Cutting
Attachment" / "Mounting the Mowing
Head" / "Mounting Grass Cutting
Blades".
N Place the guard washer (6) on the
thrust washer – the whole collar
(arrows) on the shaft (1) must be
visible.
Mounting Hardware for Cutting
Attachment
The mounting hardware supplied
depends on the cutting attachment that
comes as original equipment with the
new machine.
The appropriate deflectors and
mounting hardware are available as
special accessories for subsequently
equipping the machine with different
cutting attachments – see chapter on
"Special Accessories".
Always use and assemble the cutting
attachment mounting hardware as
described in the chapter on "Mounting
the Cutting Attachment".

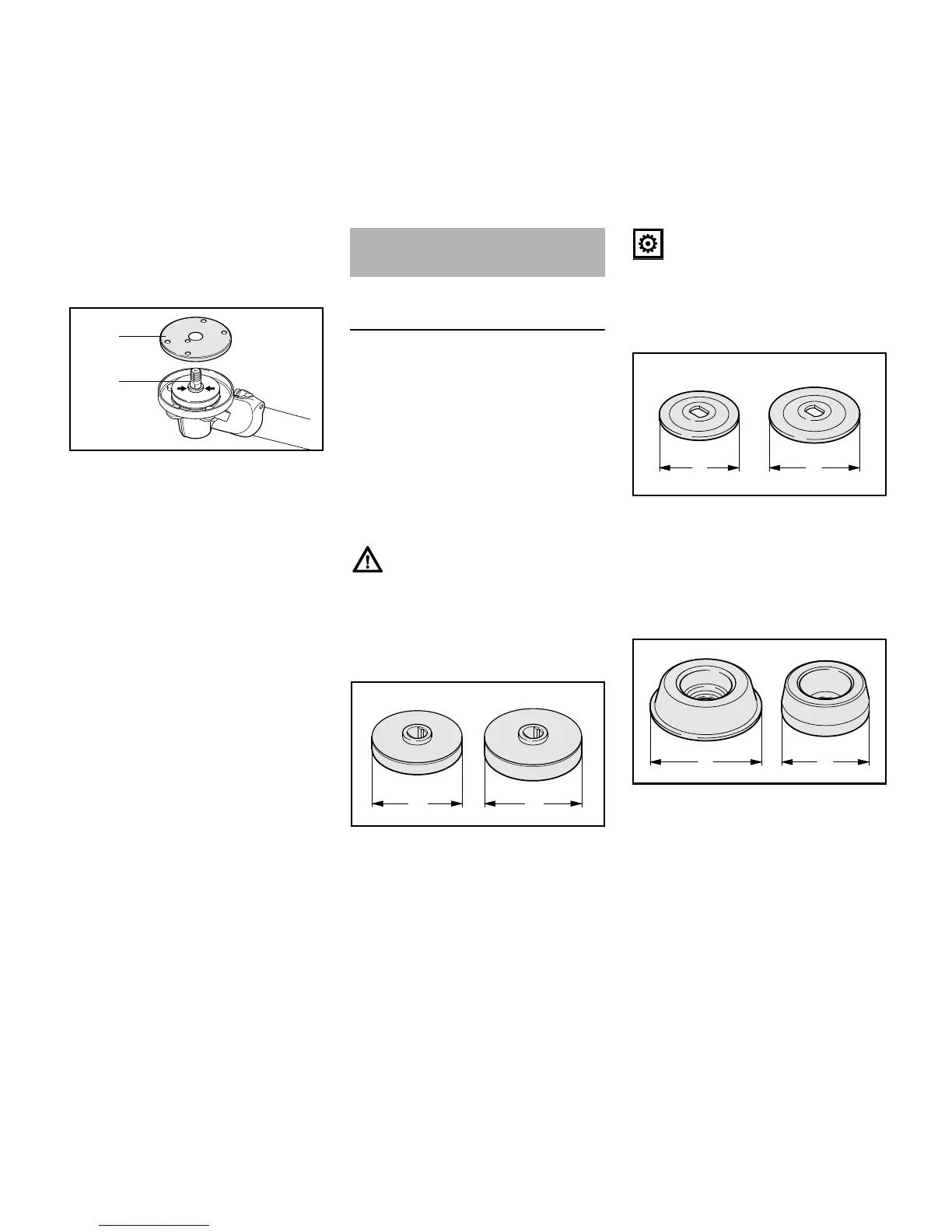

Thrust plate
– 60-mm diameter (A) version for
mowing heads ands grass cutting
blades.
– 65-mm diameter (A) version for
brush knives, shredder blades and
circular saw blades.
The thrust plate is necessary for
mounting all cutting attachments to the
gearbox.
Thrust washers
– 60-mm diameter (A) version for
grass cutting blades and circular
saw blades.
– 70-mm diameter (A) version for
brush knives and shredder blades.
Rider plates, guard ring and nut
– Approximately 80-mm diameter (A)
rider plate (1) for grass cutting
blades.
– Approximately 63-mm diameter (A)
rider plate (2) for circular saw
blades.
002BA506 KN
6
1
Mounting the Cutting
Attachment
681BA188 KN
A
A
681BA189 KN
A
A
681BA190 KN
A
A
