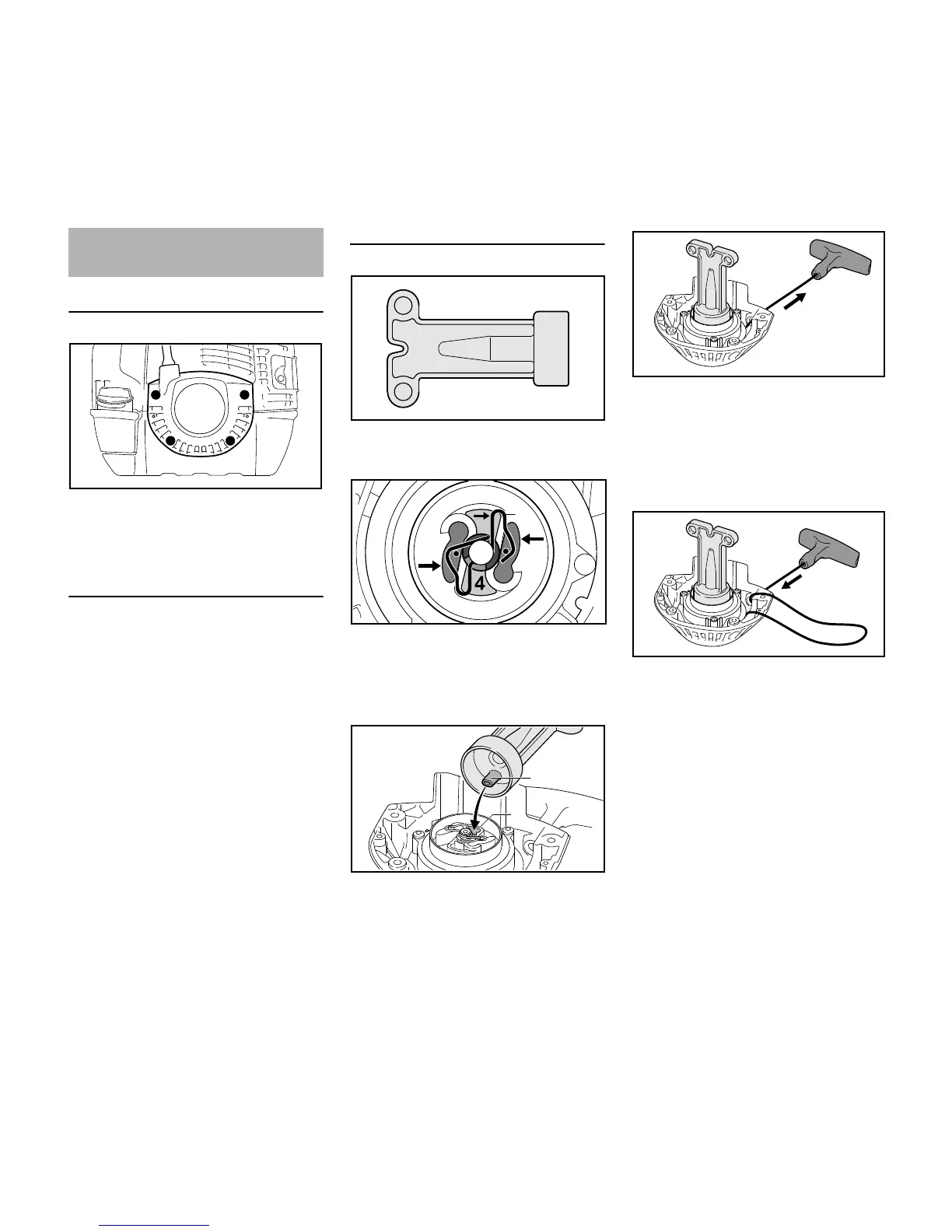

Removing the Rewind Starter
N Take out the screws (1).
N Lift away the rewind starter.
Replacing the Starter Rope and Rewind
Spring
N If either the starter rope or rewind
spring is broken, continue with
"Removing the Rope Rotor".
N If either the starter rope or rewind
spring are being replaced as a
precautionary measure, continue
with the following chapter.
Releasing Tension on Rewind Spring
N Use the tensioning wrench. It is
available as a special accessory.
N If necessary, swing the pawls (2)
inwards.
N Rotate the spring clip (3) out of the
recesses (4) in the carrier (5).
N Position the tensioning wrench in
the carrier so that the peg (6)
engages one of the recesses (4).
N Use starter grip to pull out the starter
rope as far as stop.
N Hold the tensioning wrench and the
starter mechanism steady so that
the rope does not rewind onto the
rope rotor.
N Grip the rope inside the housing,
pull it out to its full length and make
a loop.
N Allow tensioning wrench to rotate
slowly and thus release spring
tension – the rope winds itself
around the tensioning wrench in this
process until the spring is no longer
under tension.
N Remove the tensioning wrench from
the carrier.
Replacing the Starter Rope
and Rewind Spring
1 1
1 1
2709BA021 KN
9926BA036 KN
2
2
5
3
9926BA037 KN
6
4
9926BA038 KN
9926BA039 KN
9926BA040 KN
