0458-718-8221-A
4
English
3 Main Parts
8 Drive Tube Release Button
Unlocks the drive tube to allow length adjustment and
conversion for edging.
9 Loop Handle
Handle for the operator's front hand.
10 Trimmer LEDs
Indicate the trimmer's state of charge and display error
messages regarding potential malfunctions in the power
tool or its integrated battery.
11 Push Button
Activates the trimmer's LEDs.
12 Charging Socket
Socket for connecting the charger to the trimmer.
13 Trigger Switch
Activates the cutting attachment when depressed.
14 Drive Tube
Trimmer shaft.
15 Trimmer Head Adjustment Latch
Allows the angle of the trimmer head to be adjusted for
edging.
16 Bump Guard
Limits the cutting range of the mowing line and helps
regulate cutting depth during edging.
17 Connector
Connects the charger to the trimmer's charging socket.
18 Power Supply Cord
Supplies electrical charging current when the charger is
plugged into a wall outlet.
19 Plug
Connects the charger to a wall outlet.
20 Charger (Power Supply)
Power supply for charging the trimmer.
# Rating Plate
Contains electrical information and the product's serial
number.

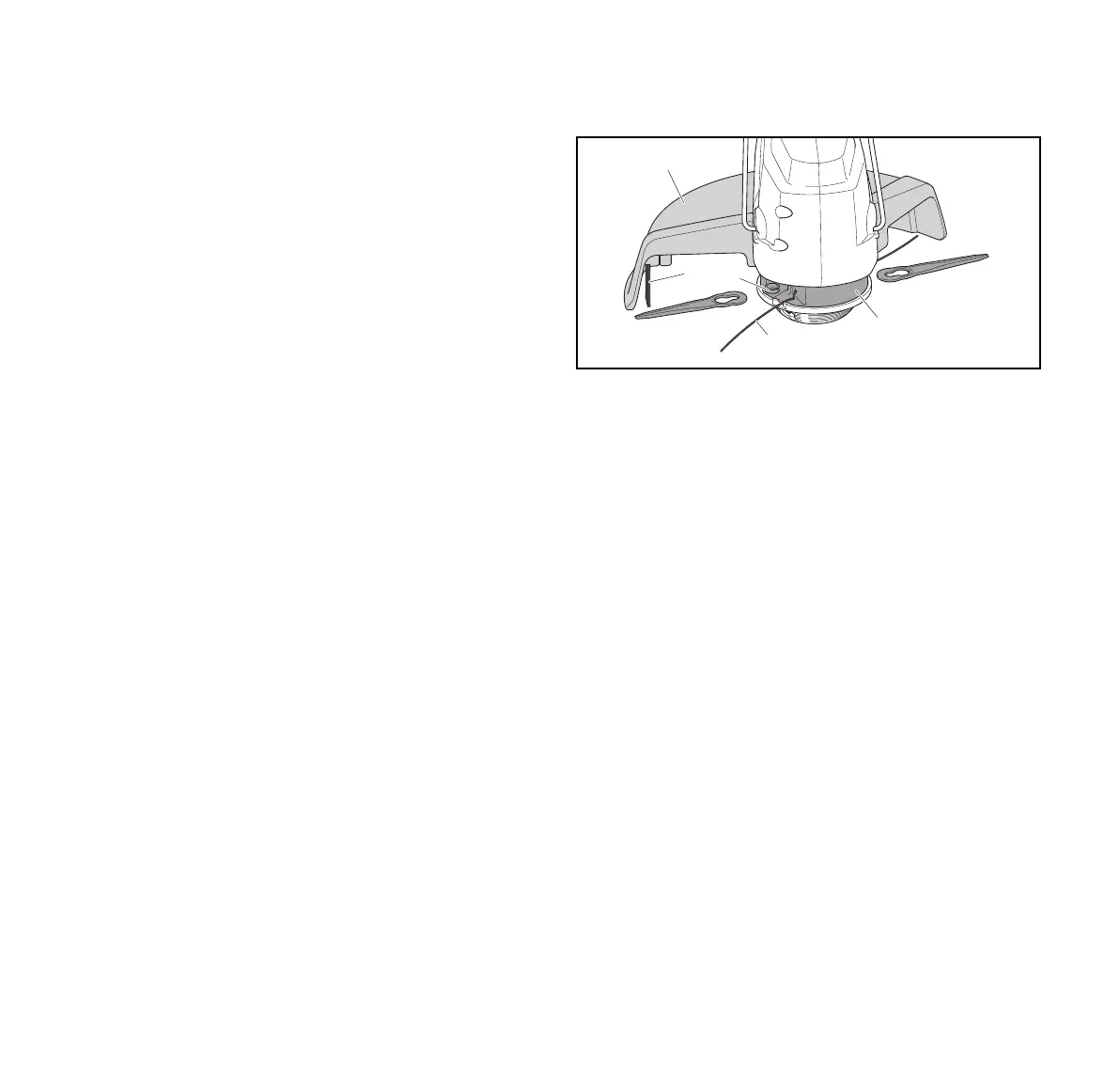

3.2 Mowing Head, Cutting Attachments and
Deflector
1 Deflector
Designed to reduce the risk of injury from thrown objects
and contact with the cutting attachment.
2 Line Limiting Blade
Metal blade on the deflector that trims the nylon mowing
line to the proper length.
3 Polymer Blade
Rigid cutting attachment for trimming grass and similar
material.
4 Mounting Post
Post on each side of the mowing head for mounting the
polymer blades.
5 Trimmer Line
Nylon cutting attachment for trimming grass and similar
material.
6 PolyCut 2-2 Mowing Head
The mowing head for mounting nylon trimmer line or
polymer blades.
1
2
3
6
5
4
0000-GXX-1404-A1
