HT 105, HT 134, HT 135
English
11

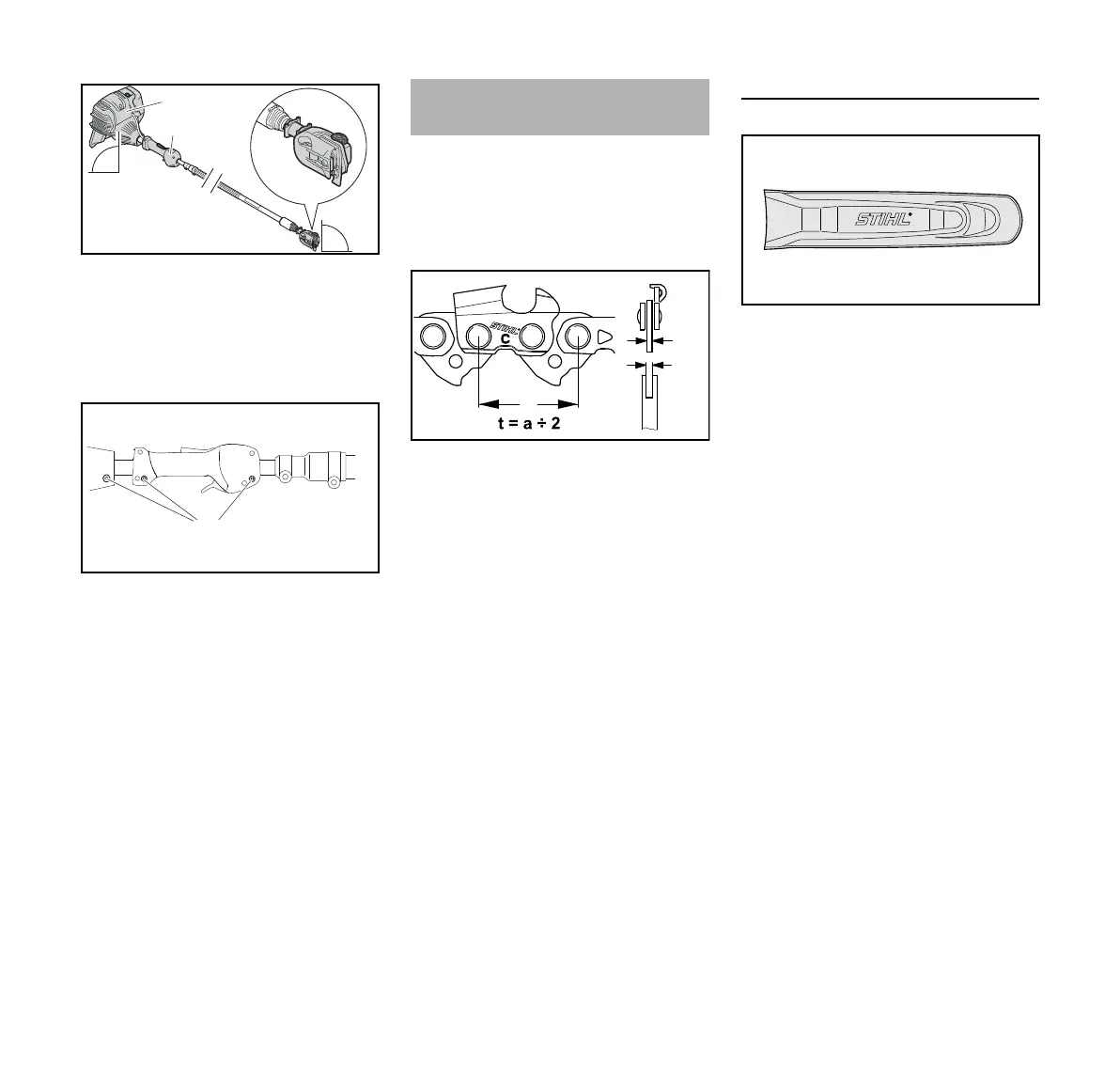

N Align the housing (11) (with the
manual fuel pump facing up), the
control handle (with the stop switch
facing up) and the transmission (3)
(with the oil tank cap facing up) as
shown
N Tighten down the screws (12) firmly
The pole pruner does not need to
dismantled again.
A cutting attachment consists of the saw
chain, guide bar and chain sprocket.
The cutting attachment that comes
standard is designed to exactly match
the pole pruner.
– The pitch (t) of the saw chain (1),
chain sprocket and the nose
sprocket of the Rollomatic guide bar
must match.
– The drive link gauge (2) of the saw
chain (1) must match the groove
width of the guide bar (3).
If non-matching components are used,
the cutting attachment may be damaged
beyond repair after a short period of
operation.
Chain Scabbard
The scope of supply includes a bar
scabbard that matches the cutting
attachment.
If guide bars of different lengths are
mounted to the pole pruner, always use
a chain scabbard of the correct length
which covers the complete guide bar.
The length of the matching guide bars is
marked on the side of the chain
scabbard.
