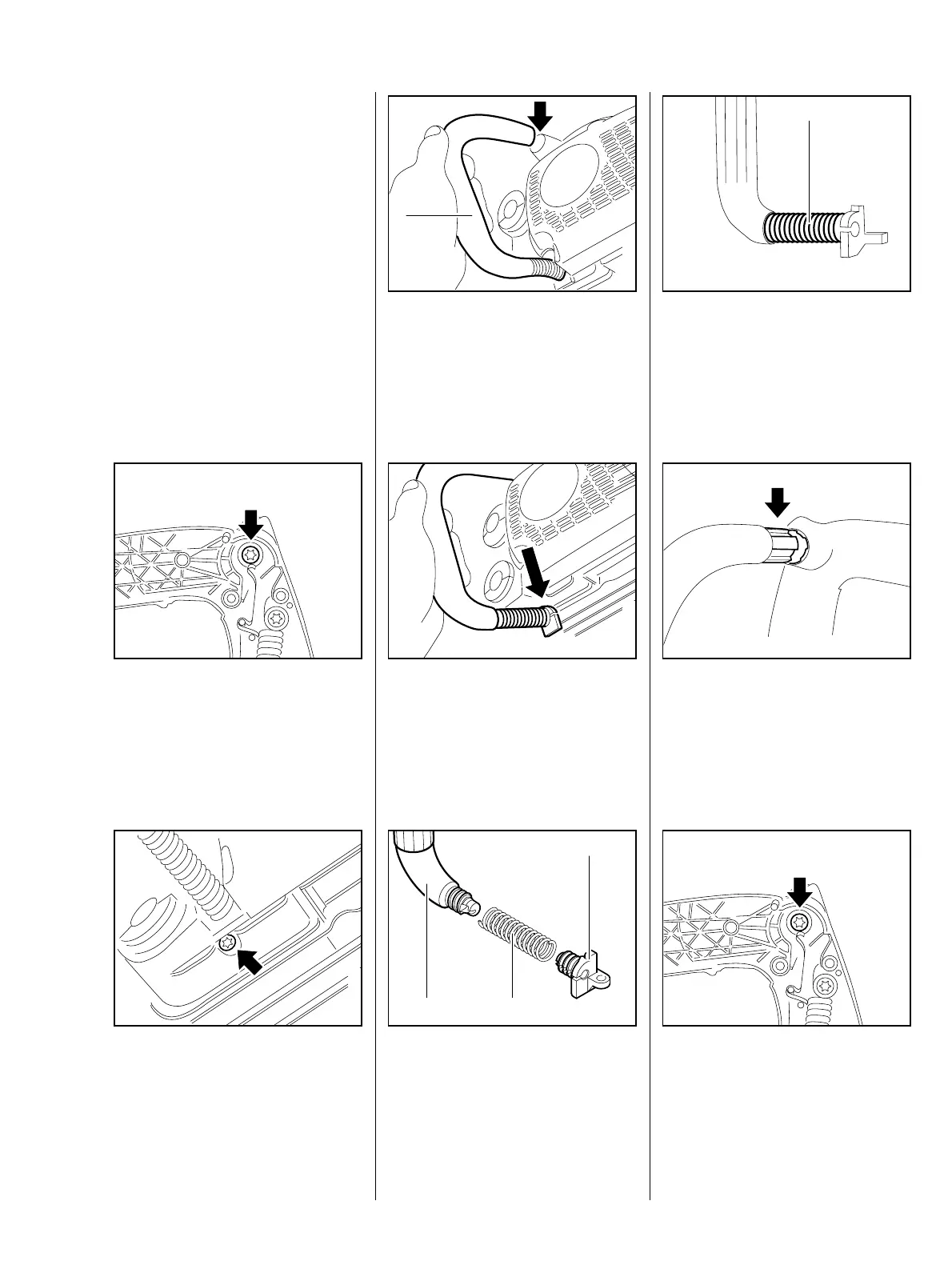

61MS 192 T
The spring is located between front
handle and engine housing to
ensure a strong connection
between handle housing and
engine housing without transmitting
vibrations.
– Open the handle housing,
b 12.1
– Remove the throttle trigger and
throttle trigger interlock, b 12.1
– Remove the switch shaft,
b 12.3
: Remove the screw (arrow).
217RA159 TG
: Remove the screw (arrow) from
underneath the engine housing.
217RA160 TG
: Pull the front handle (1) out of the
upper guide (arrow).
217RA161 TG
1
: Draw the front handle out of the
engine housing with the spring
facing downwards.
217RA162 TG
: Examine the front handle (1),
spring (2) and bearing plug (3)
and replace if necessary.
217RA163 TG
21
3
Ensure that the spring (1) has been
fully turned into the front handle and
bearing plug.
– Reassemble parts in reverse
order.
217RA164 TG
1
: Slide the front handle into the
hole (arrow), ensuring that the
raised parts of the handle engage
the recess of the handle housing.
217RA165 TG
: Insert and tighten down the screw
(arrow).
– Tightening torques, b 3.5
– Reassemble remaining parts in
reverse order.
217RA159 TG
11.2 Front Handle / Spring
