Important: When installing the
motor, ensure that the correct
rotor, stator and ball bearings are
used for the model to be repaired
(see spare parts list).
RE 140 K

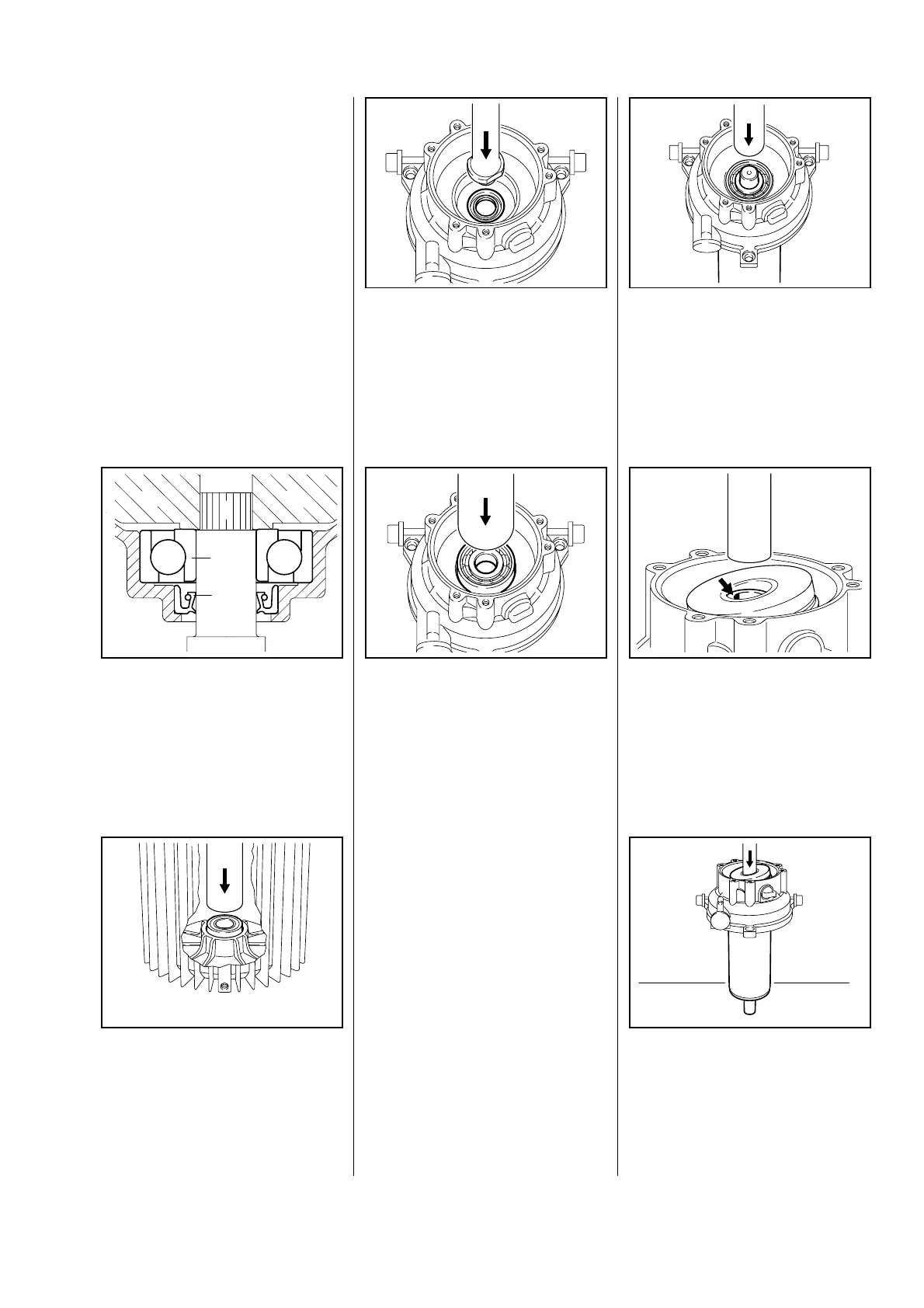

Important: Note installation
position of shoulder bearing (1)
and oil seal (2); refer to schematic
drawing with swashplate (3) and
rotor shaft (4).
•
Press new ball bearing into
stator with the aid of suitable
tubing (outside diameter 34 mm).
•
Press oil seal into drive
housing from the pump
side using assembly arbor
4112 893 2401 (1). Open side
faces pump.
•
Press new shoulder bearing into
drive housing until flush with
housing using suitable tubing
(same outside diameter as outer
bearing race).
- Oil sealing lip of oil seal.
- Insert rotor in drive housing.
•
Press inner race of shoulder
bearing in drive housing onto
drive shaft with suitable tubing
(inside diameter slightly larger
than inner bearing race) until it is
flush with the shoulder.
Note: The centre shaft of the
swashplate is perpendicular to the
axis of rotation. The tube must be
positioned here when installing the
swashplate.
•
Press swashplate onto drive
shaft with suitable tubing.
8.2 Installation
4
621RA101 KN
1
2
3
3
621RA102 KN
621RA103 KN
621RA104 KN
621RA106 KN
621RA107 KN
621RA105 KN
RE 140 K, 160 K 21
