Stihl RMA 443 VC User Manual

0478-131-9948-A
50
English 8 Adjusting the Lawn Mower for the User

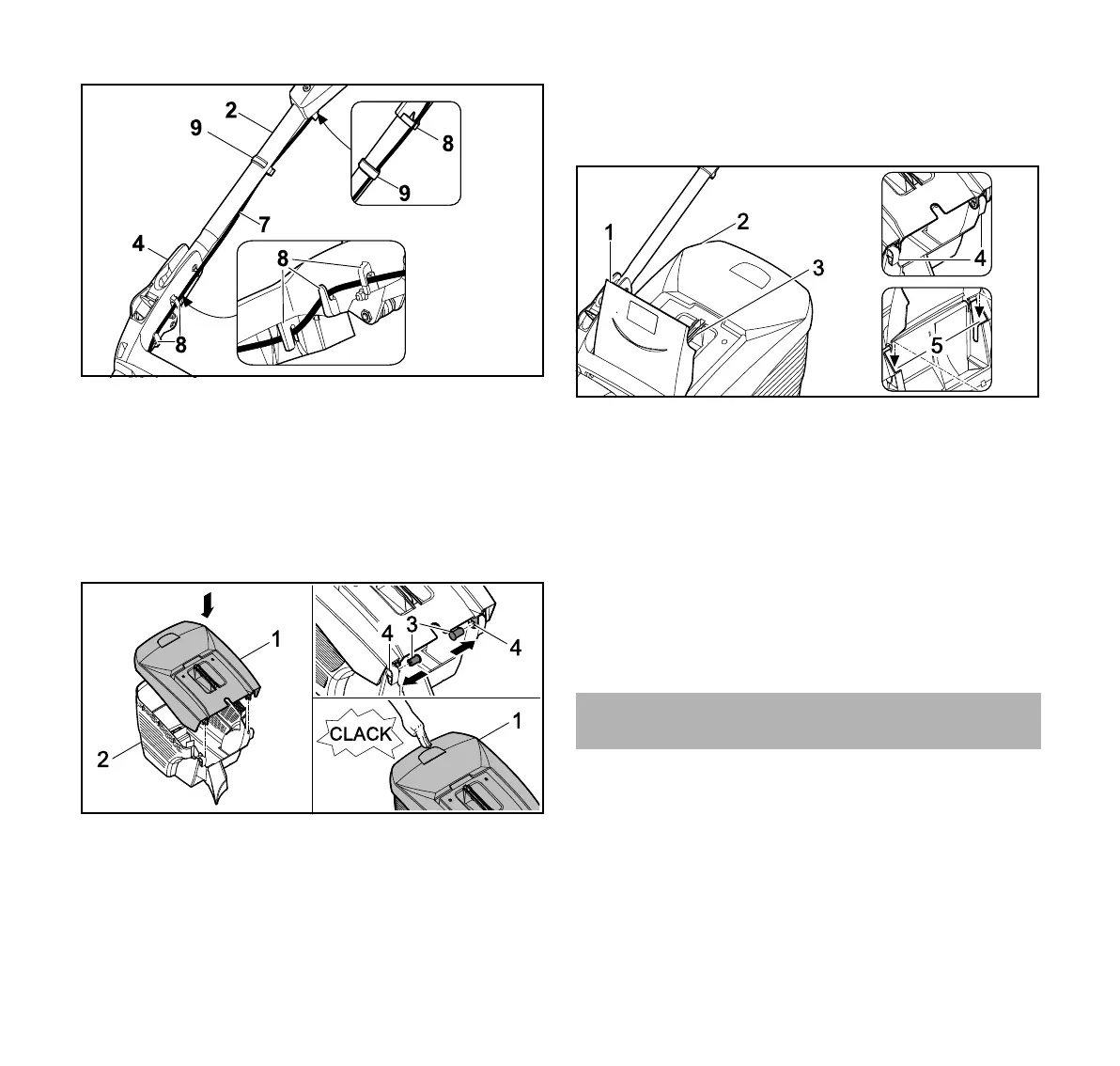

► Press cable (7) into holders (8).
► Fasten cable (7) to the handlebar using cable clip (9).
The handlebar must not be dismantled again.
7.2 Assembling, Attaching and Detaching the Grass
Catcher Box
7.2.1 Assembling the Grass Catcher Box
► Fit upper part of grass catcher box (1) onto lower part of
grass catcher box (2).
► Press pins (3) through openings (4) from the inside.
► Press upper part of grass catcher box (1) downwards.
The upper part of the grass catcher box engages with a
click.
7.2.2 Attaching the Grass Catcher Box
► Switch the lawn mower off.
► Place the lawn mower on a level surface.
► Open discharge flap (1) and hold it open.
► Take hold of grass catcher box (2) by handle (3) and
attach to mounts (5) using hooks (4).
► Set down discharge flap (1) on grass catcher box (2).
7.2.3 Detaching the Grass Catcher Box
► Switch the lawn mower off.
► Place the lawn mower on a level surface.
► Open the discharge flap and hold it open.
► Remove the grass catcher box upwards by the handle.
► Close the discharge flap.
8.1 Adjusting the Handlebar
► Switch the lawn mower off, pull out the activation key and
remove the battery.
► Place the lawn mower on a level surface.
8 Adjusting the Lawn Mower for the User

Stihl RMA 443 VC Specifications

General

Type	Walk behind lawn mower
Cutting width	410 mm
Grass catcher	Yes
Product color	Black, Grey, Orange
Uncertainty K	0.9 m/s²
Number of wheels	4 wheel(s)
Rotational speed	3150 RPM
Maximum lawn area	420 m²
Mulching function	-
Sound power level	90 dB
Handle(s) features	Foldable
Vibration emission	1.8 m/s²
Rear wheels diameter	200 mm
Sound pressure level	89.2 dB
Front wheels diameter	180 mm
Maximum cutting height	75 mm
Minimum cutting height	25 mm
Grass collecting volume	55 L
Suitable for slope up to	14 °
Power source	Battery
Battery voltage	36 V

Weight and Dimensions

Depth	1380 mm
Width	490 mm
Height	1080 mm
Weight	23000 g
