Stihl RMA 443 VC User Manual

0478-131-9948-A
56
English 13 Operating the Lawn Mower
► Close flap (1).

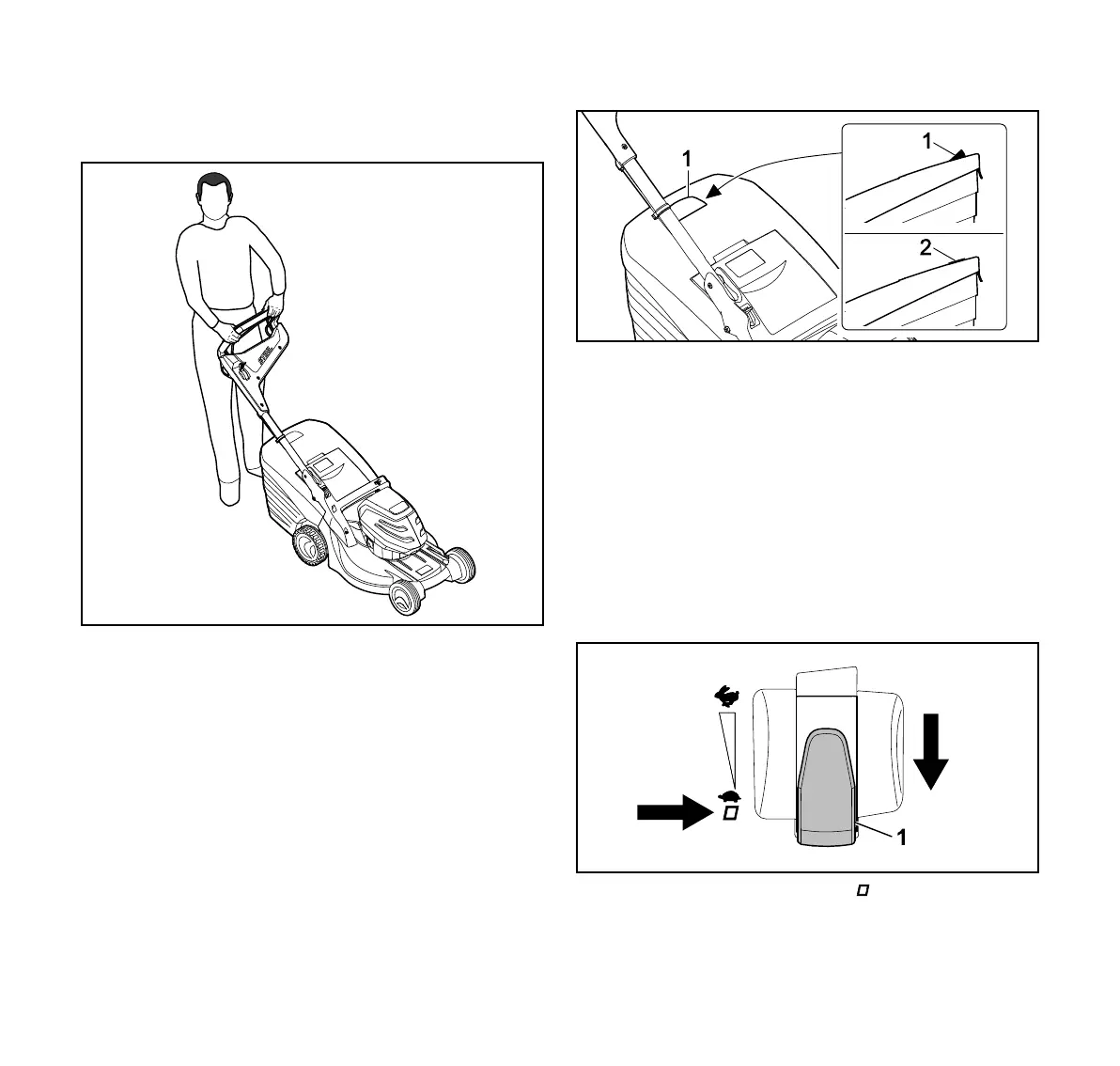

13.4 Mowing
► If working with self-propulsion engaged: drive the lawn
mower forwards in a controlled manner.
► If working with self-propulsion disengaged: push the lawn
mower forwards slowly and in a controlled manner.
13.5 Emptying the Grass Catcher Box
The flow of air generated by the blade raises level
indicator (1). The flow of air stops when the grass catcher
box is full. If the flow of air is too low, level indicator (2)
returns to its resting state. This is a prompt to empty the
grass catcher box.
The functionality of the level indicator is restricted if the flow
of air is impaired. External influences such as wet, dense or
high grass, low cutting levels, contamination or the like can
impair the flow of air and the functionality of the level
indicator.
► If the level indicator drops to its resting state: empty the
grass catcher box.
► Switch the lawn mower off.
► Set driving speed lever (1) to the position.
► Detach the grass catcher box.

Stihl RMA 443 VC Specifications

General

Type	Walk behind lawn mower
Cutting width	410 mm
Grass catcher	Yes
Product color	Black, Grey, Orange
Uncertainty K	0.9 m/s²
Number of wheels	4 wheel(s)
Rotational speed	3150 RPM
Maximum lawn area	420 m²
Mulching function	-
Sound power level	90 dB
Handle(s) features	Foldable
Vibration emission	1.8 m/s²
Rear wheels diameter	200 mm
Sound pressure level	89.2 dB
Front wheels diameter	180 mm
Maximum cutting height	75 mm
Minimum cutting height	25 mm
Grass collecting volume	55 L
Suitable for slope up to	14 °
Power source	Battery
Battery voltage	36 V

Weight and Dimensions

Depth	1380 mm
Width	490 mm
Height	1080 mm
Weight	23000 g
