Stihl SGA 85 User Manual

0458-600-8221-A
26
English 17 After Finishing Work

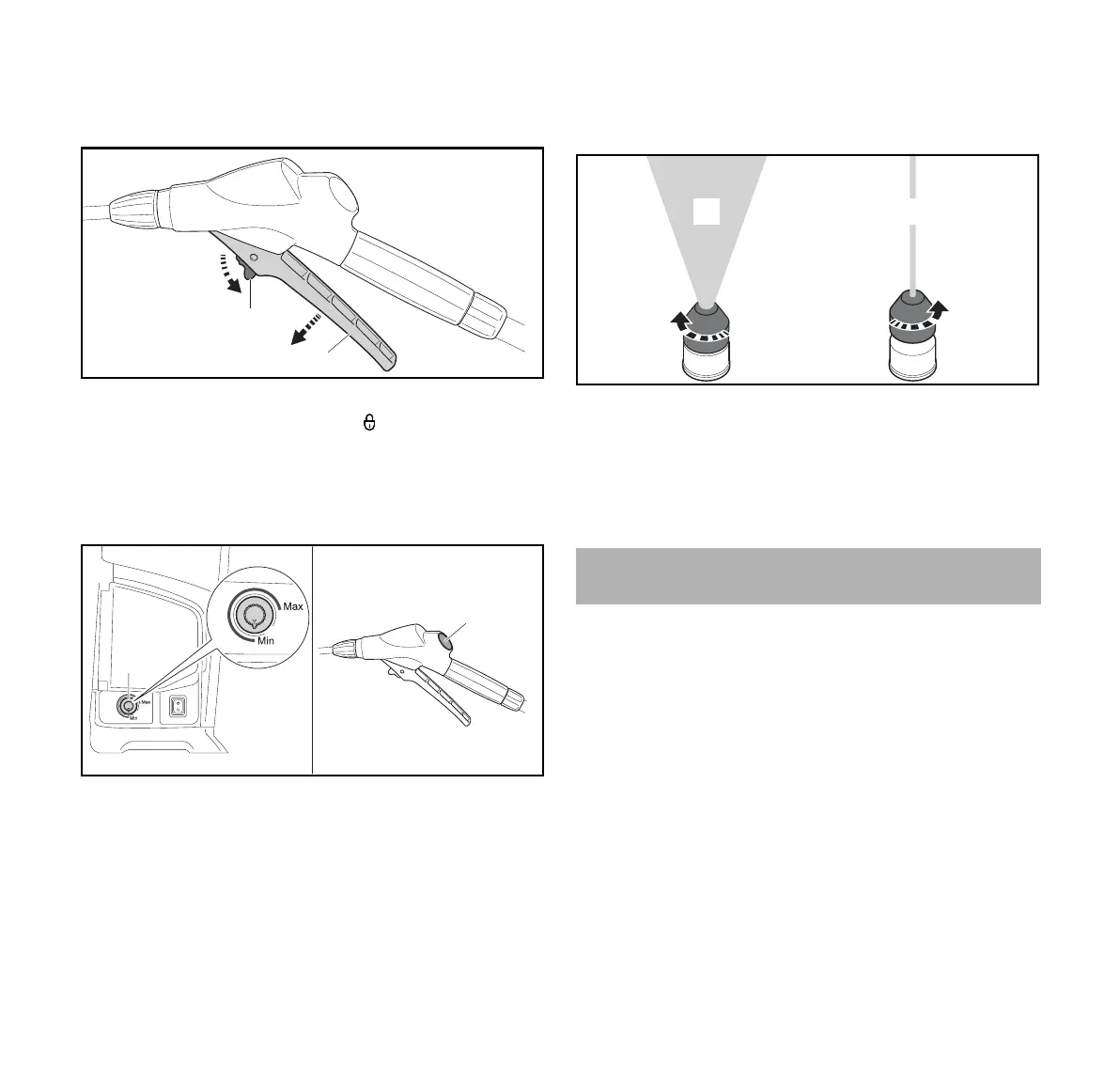

Locking the trigger switch
To lock the trigger switch:
► Release the trigger switch (2).
► Slide the retaining latch (1) to the position to lock the
trigger switch.
16.3 Adjusting Operating Pressure and Flow Rate
To adjust the nozzle with the different flow rate, @ 23.2:
To increase operating pressure and flow rate spray:
► Turn rotary control (1) toward “Max.”
To reduce operating pressure and flow rate:
► Turn rotary control toward “Min.”
Operating pressure is indicated on the spray gun's pressure
gauge (2).
16.4 Adjusting the Nozzle
To adjust the nozzle with the different flow rate, @ 23.2:
For the full cone beam (A):
► Turn the nozzle as far as stop counterclockwise.
For the spot beam (B):
► Turn the nozzle one complete turn clockwise from the
closed position.
17.1 Preparing for Transportation or Storage
To prepare the sprayer for transportation or storage:
► Switch off the sprayer, @ 14.2.
► Remove the battery, @ 13.2.
► Squeeze the trigger switch to relieve any remaining the
pressure in the system, @ 16.2.
► Lock the trigger switch, @ 16.2.
► Drain the container in an environmentally responsible
manner, @ 16.1.2.
► Rinse the container with clean water.
► Fill the container with clean water, @ 16.1.1.
► Insert the battery, @ 13.1.
► Switch on the sprayer, @ 14.1.
1
2
0000-GXX-C123-A0
2
1
0000-GXX-B477-A0
17 After Finishing Work
A B
0000096676_002

Stihl SGA 85 Specifications

General

Product type	Backpack garden sprayer
Suitable for	Outdoor
Product color	Orange, White
Tank capacity	17 L
Adjustable shoulder strap	Yes

Weight and Dimensions

Width	406 mm
Height	606 mm
Weight	6200 g
