Stihl SGA 85 User Manual

0458-600-8221-A
4
English 3 Main Parts

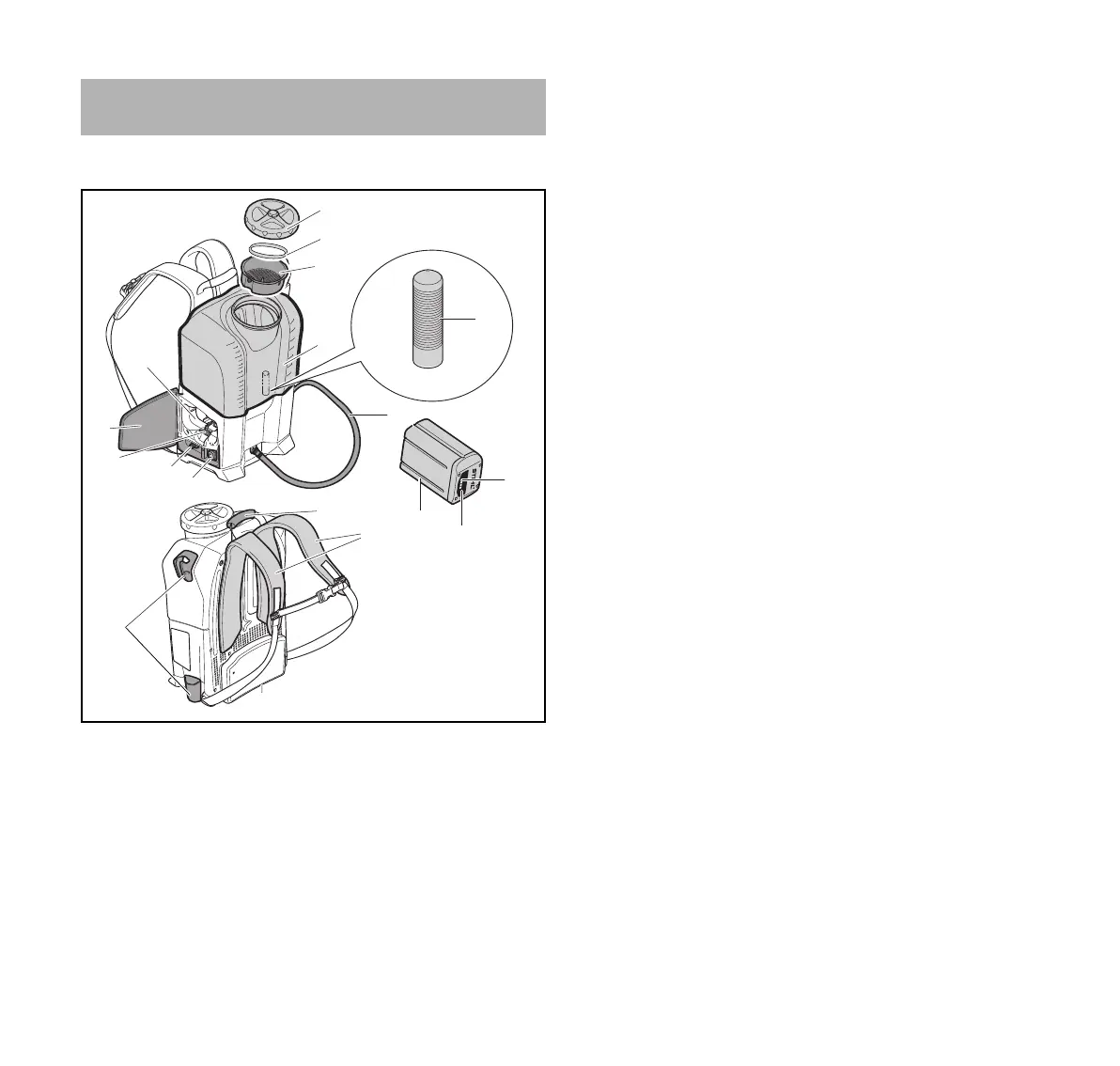

3.1 Sprayer
1Cap
For closing the container.
2 Sealing Ring
Seals the container.
3Strainer
Helps prevent coarse particles from entering the
container and blocking the spray mechanism.
4 Container
Contains the spray solution.
5Filter
Helps prevent impurities from entering the pump and
blocking the spray mechanism.
6Hose
Carries the spray solution from the container to the spray
gun.
7 Power Switch
Switches the sprayer on and off.
8 Rotary Control
For adjusting the operating pressure and the flow rate of
spray.
9 Locking Lever
Secures the battery in the battery compartment.
10 Battery Compartment Cover
Spring-loaded closure for the battery compartment.
11 Battery Compartment
Holds the battery.
12 Handle
For transporting the sprayer.
13 Harness
For carrying the sprayer.
14 Holder for Spray Gun
For storing the spraying attachment.
15 Battery
Supplies electrical power to the motor.
16 Battery LEDs
Indicate the battery's state of charge and display error
messages regarding potential malfunctions in the battery
or power tool.
17 Push Button
Activates the battery's LEDs.
# Rating Label with Serial Number
3Main Parts
1
3
12
13
4
11
14
5
8
7
15
#
16
17
6
9
10
2
#
0000-GXX-9931-A2

Stihl SGA 85 Specifications

General

Product type	Backpack garden sprayer
Suitable for	Outdoor
Product color	Orange, White
Tank capacity	17 L
Adjustable shoulder strap	Yes

Weight and Dimensions

Width	406 mm
Height	606 mm
Weight	6200 g
