Stihl SHE 81 User Manual

BGE 61, BGE 71, BGE 81, SHE 71, SHE 81
English
28
N Disconnect the plug from the power
supply.

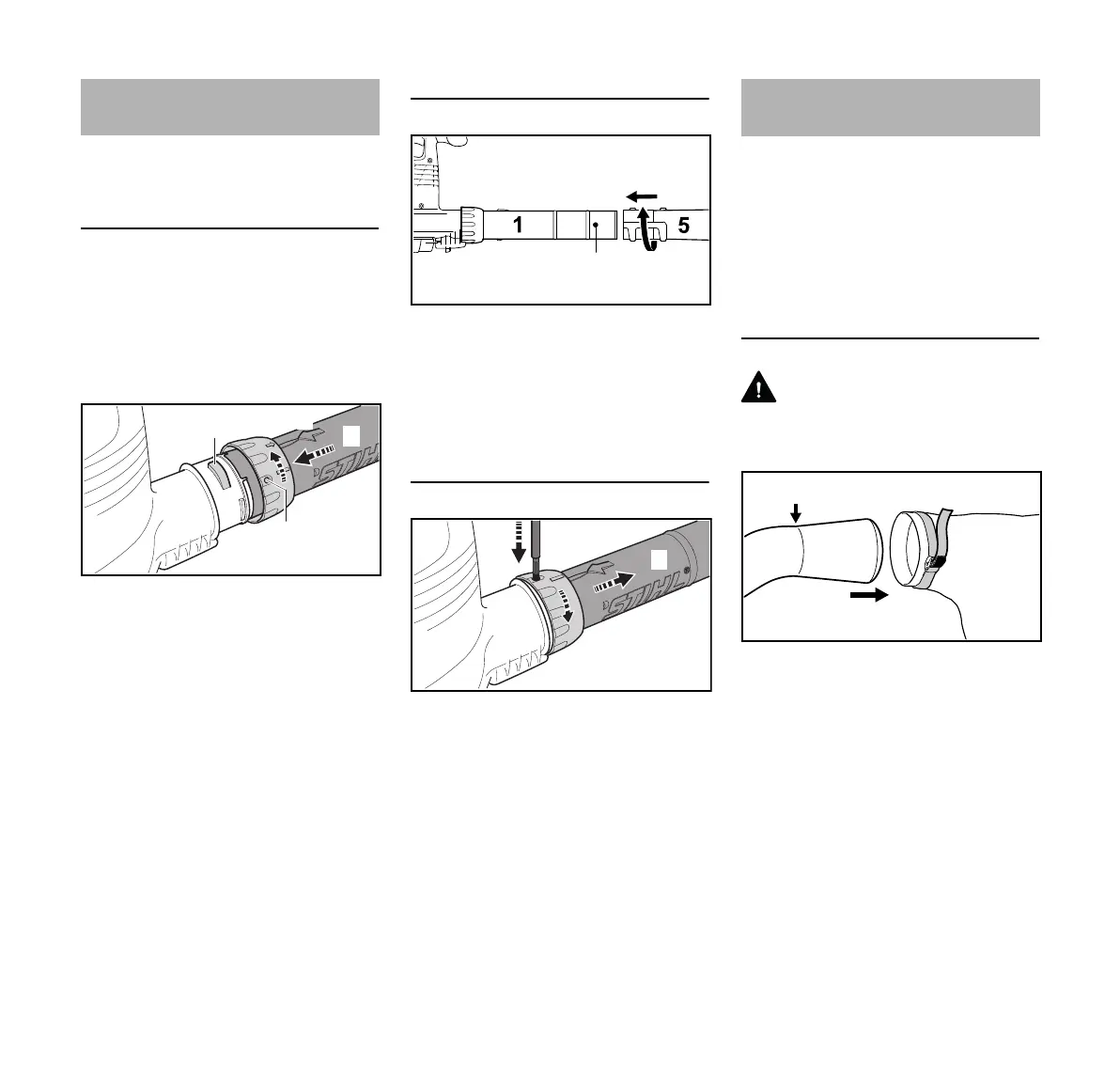

Mounting the Blower Tube
BGE 71, BGE 81:
Your blower can be switched on only
when the blower tube is properly
mounted. The union nut activates a
switch which closes the circuit to allow
the motor to be switched on.
N Line up the recesses. The arrow (2)
must be on the top of the blower
tube (1).
N Push the blower tube (1) into the
blower housing stub (3) as far as the
stop.
N Push the union nut (4) over the
blower housing stub (3) and turn it in
the direction of the arrow until the
tab (5) engages the opening (6) in
the union nut.
BGE 71, BGE 81:
N You will hear the safety switch being
activated.
Mounting the Nozzle
N Push the nozzle (5) onto the blower
tube (1) as far as lug (6),
position (a) (long) or position (b)
(short), and rotate the nozzle in the
direction of the arrow to it lock in
position.
Removing the Blower Tube
N Switch off the motor.
N Press down the lock button by
inserting a suitable tool through the
opening in the union nut.
N Rotate the union nut (4) in the
direction of arrow as far as the stop.
N Remove the blower tube (1).
Your vacuum shredder can be switched
on only when the elbow and suction tube
are properly mounted. The union nuts
activate a switch which closes the circuit
to allow the motor to be switched on.
N Disconnect the plug from the power
supply.
Mounting the Elbow
WARNING
Make sure the zipper on the catcher bag
is closed.
N Push the elbow (1) into the catcher
bag (2) as far as the mark (smaller
arrow).
N Tighten strap (3) on catcher bag
and press down the buckle tab (4).
Assembling the Blower
2
4
1
5
3
6
0000-GXX-2307-A0
a
290BA004 KN
6
b
4
1
0000-GXX-2308-A0
Assembling the Vacuum
Shredder
4
290BA015 KN
3
2
1

Stihl SHE 81 Specifications

General

AC input voltage	230 V
Maximum input power	1400 W
Bag capacity	45 L
Product color	Black, White
Vibration emission	5.6 m/s²
Detachable collection bag	Yes

Weight and Dimensions

Weight	4500 g
