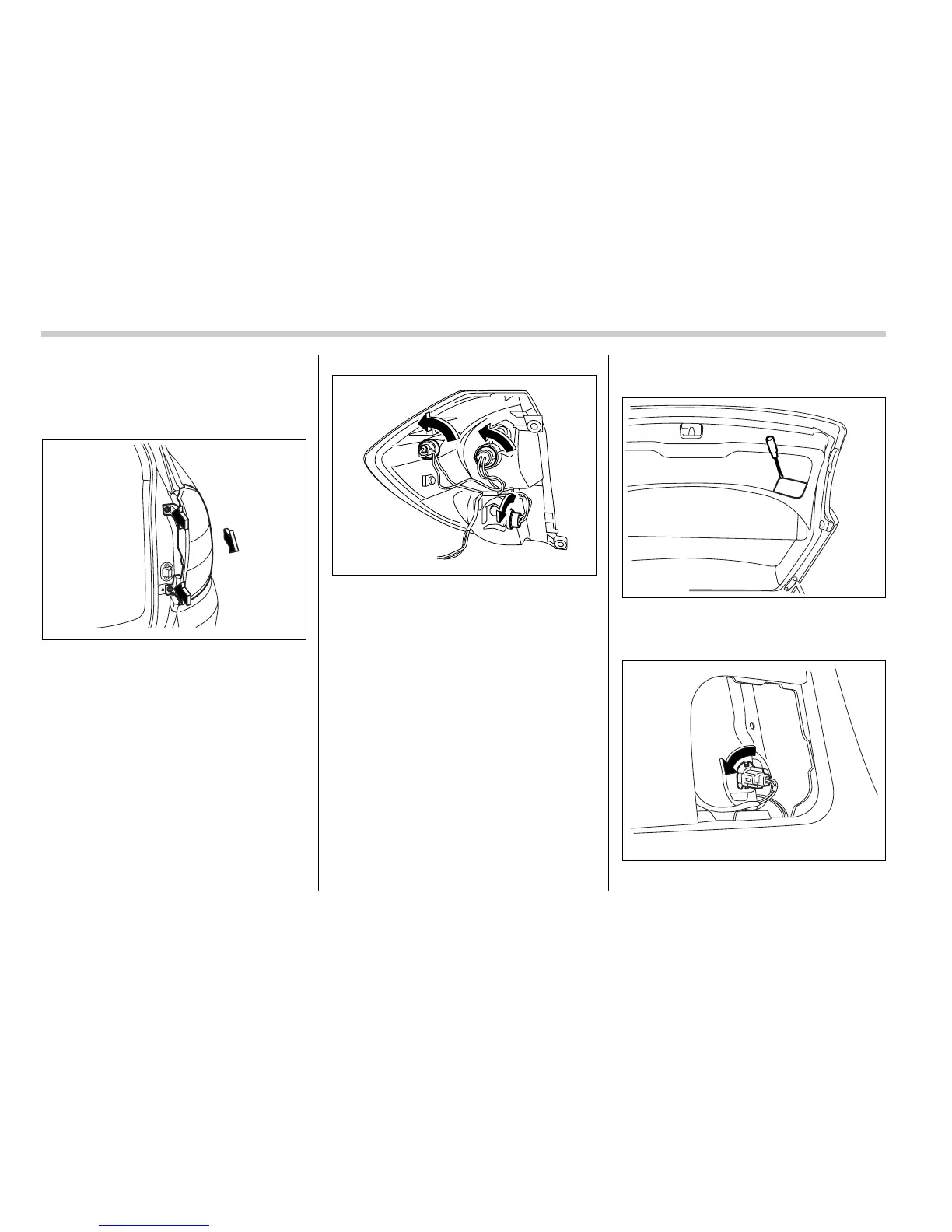

11-52 Maintenance and service
gap A between the side cover and rear
combination lamp and use it as a lever to
undo the clip. Undo clips C and D in the
same way, then remove the side cover.
3. Remove the upper and lower screws.
Then, slide the rear combination lamp as-
sembly to the rear and remove it from the
vehicle.
1) Brake/tail light
2) Rear turn signal light
3) Rear side marker light
4. Remove the bulb holder from the rear
combination light assembly by turning it
counterclockwise.
5. Pull the bulb out of the bulb holder and
replace it with a new one.
6. Set the bulb holder into the rear combi-
nation light assembly and turn it clockwise
until it locks.
7. Close the cover and latch the lock.
8. Reinstall the rear combination light as-
sembly and its side cover.
Backup light (Station wagon)
1. Use a flat-head screwdriver to remove
the light cover from the top of the left-hand
rear gate trim.
2. Turn the bulb socket counterclockwise
B00136
3
1
2
B00439
B00138
B00139
