12-6 Specifications
Fuses and circuits

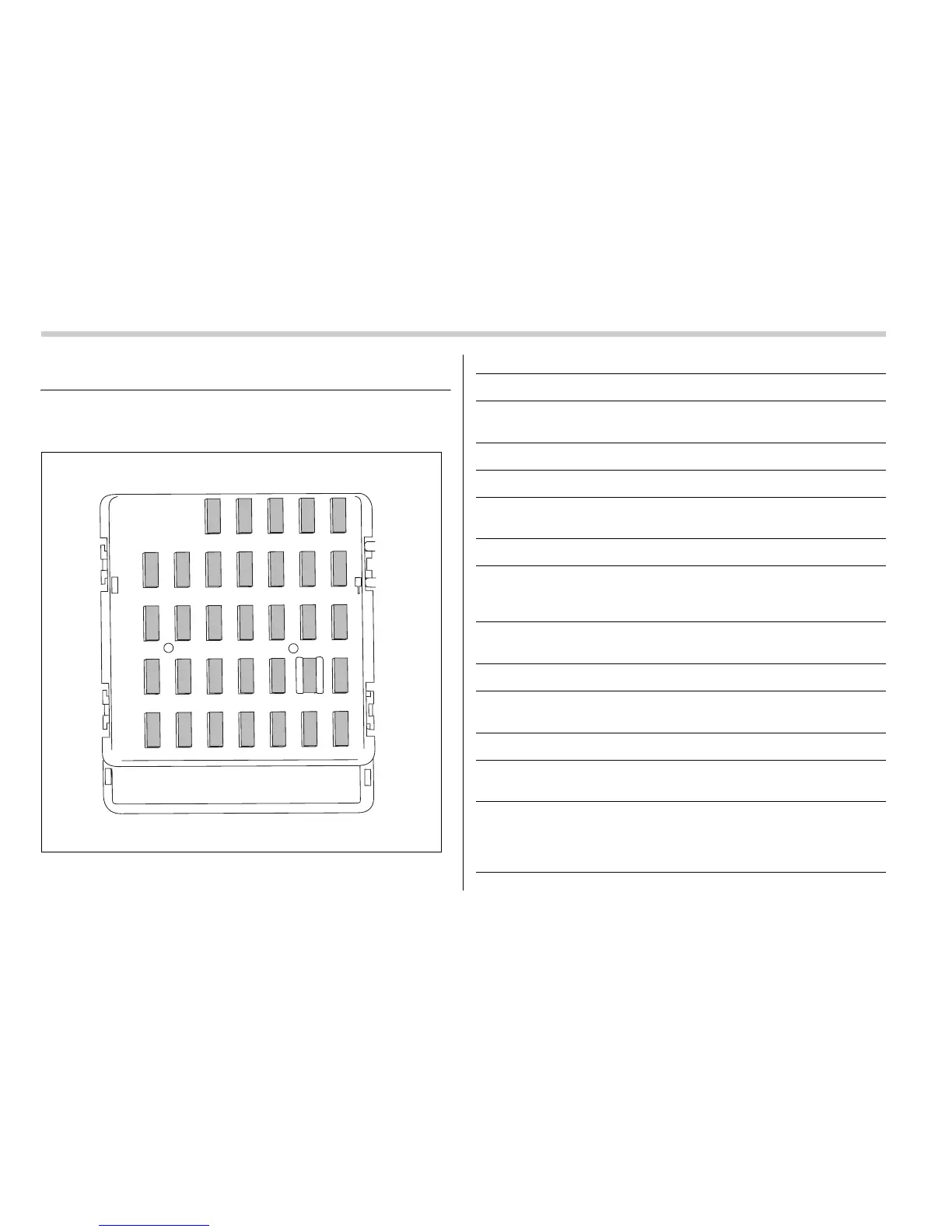

Fuse panel located in the passenger compart-
ment
27 28 29 30 31 32 33
20 21 22 23 24 25 26
13 14 15 16 17 18 19
6789101112
12345
C00004
Fuse panel Fuse rating Circuit
1 20A y Cargo fan
y Trailer hitch connector
2 Empty
3 15A y Door locking
4 15A y Front wiper deicer relay
y Moonroof
5 15A y Combination meter
6 7.5A y Remote control rear view mirrors
y Seat heater relay
y Vanity mirror light
7 15A y Combination meter
y Integrated unit
8 20A y Stop light
9 20A y Mirror heater
y Front wiper deicer
10 7.5A y Power supply (Battery)
11 7.5A y Turn signal unit
y Clock
12 15A y Automatic transmission unit
y SRS airbag system (Sub)
y Engine control unit
y Integrated unit
To Next Page
