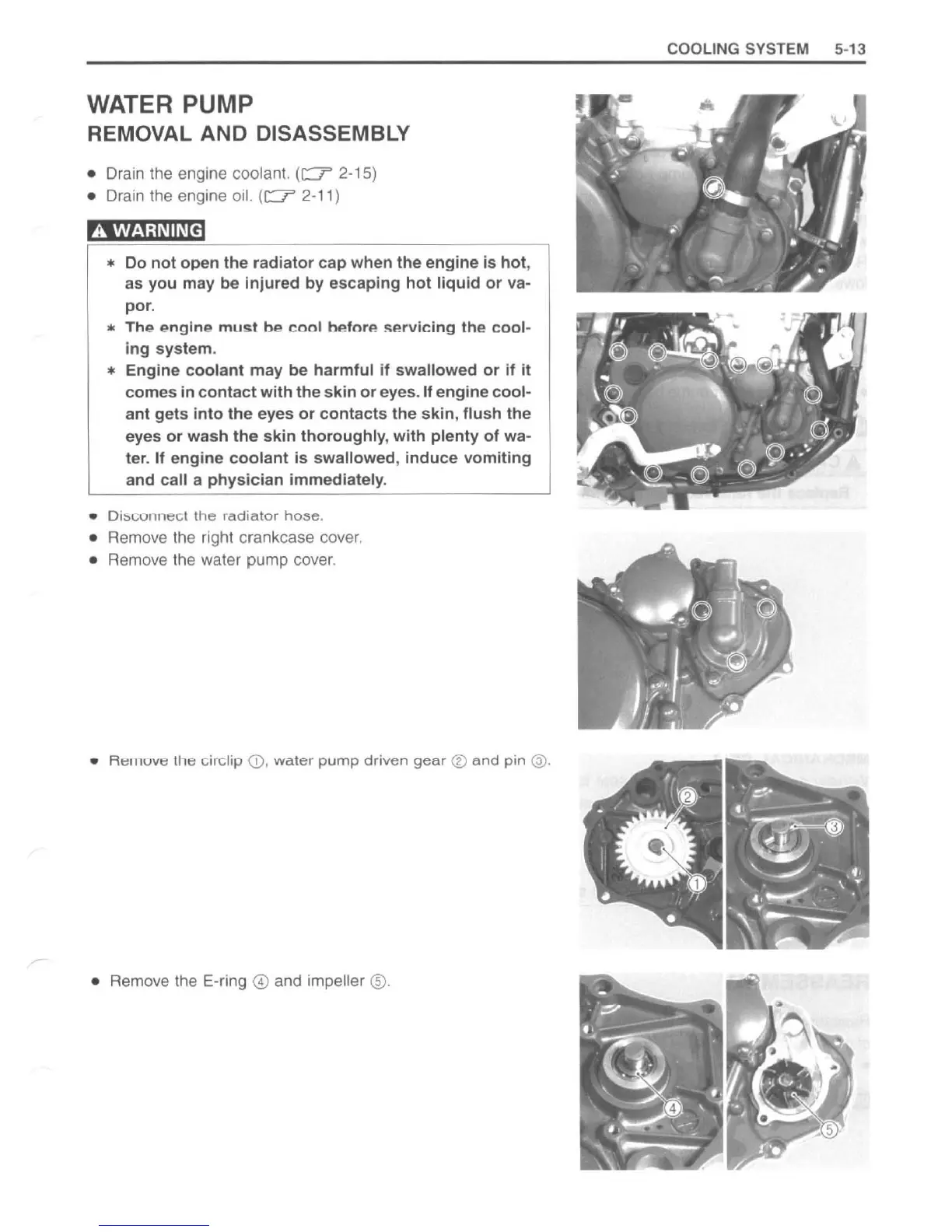

WATER PUMP
REMOVAL AND DISASSEMBLY
• Drain the engine coolant. (c::::/ 2-15)
• Drain the engine oil. (c::::/ 2-11)
A WARNING
* Do not open the radiator cap when the engine is hot ,
as
you may be injured by escaping hot liquid or va-
por.
* Th .... nglne must be cool h .. fnre " .. rvicing the cool-
ing system .
* Engine coolant may be harmful if swallowed or if it
comes in contact with the skin or eyes. If engine cool-
ant gets into the eyes or contacts the skin , flush the
eyes
or wash the skin thoroughly, with plenty of wa-
ter.
If engine coolant is swallowed, induce vomiting
and call a physician immediately.
• Dis-connect the radiator hose .
• Remove the right crankcase cover.
• Remove the water pump cover.
• R~lllove the circlip 0, water pump driven gear ® and pin @.
• Rem ove the E-ring @ and impeller @.
COOLING SYSTEM 5- 13
