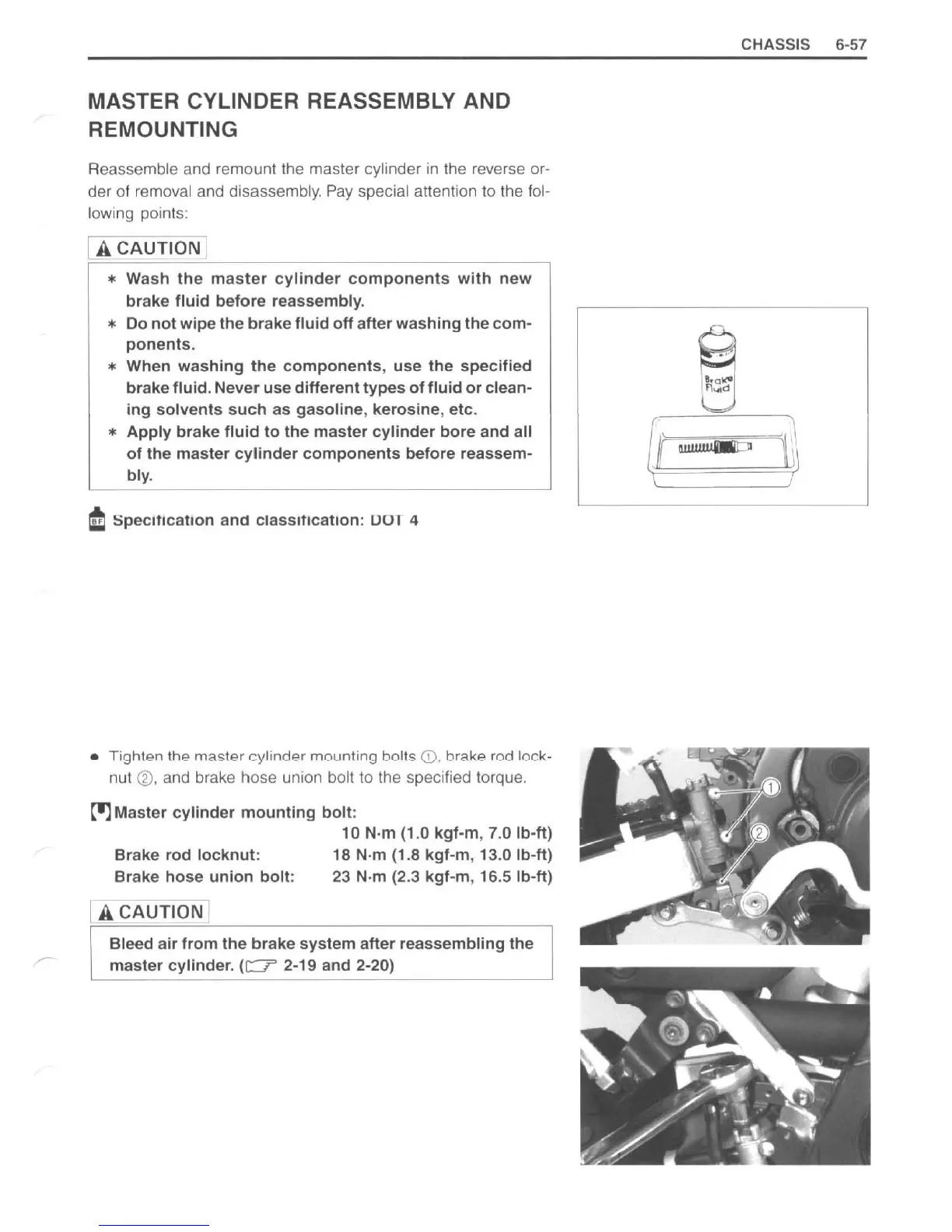

MASTER CYLINDER REASSEMBLY AND
REMOUNTING
Reassemb
le
and rem
ou
nt the master
cy
linder
in
the reverse or-
der
of
removal and disassembly. P
ay
special att
en
tion to the
fo
l-
lowi
ng
point
s:
[A CAUTION ]
* Wash
the
master
cylinder
components
with
new
brake
fluid
before reassembly.
* Do
not
wipe the
brake
fluid
off
after
washing
the
com-
ponents.
* When
washing
the
components,
use
the
specified
brake
fluid
. Never
use
different
types
of
fluid
or
clean-
ing
solvents
such
as
gasoline
, kerosine, etc.
*
Apply
brake
fluid
to
the
master
cylinder
bore
and
all
of
the master
cy
l
inder
components
before reassem-
bly
.
i!i
Speclticatlon
ana
ClaSSIfication:
UO
I 4
•
Tighten
the
master
cy
linder mounting bo
lt
s
CD,
br
ake
rod lock-
nut
(g),
and brake hose union bolt
to
the specified torque.
(I) Master
cylinder
mounting
bolt
:
10 N·m (1.0
kgf-m
, 7.0 Ib-ft)
Brake
rod
locknut:
18 N·m (1.8 kgf-m, 13.0 Ib-ft)
Brake
hose
union
bolt: 23 N·m (2.3 kgf-m, 16.5 Ib-ft)
LA.
CAUTION I
Bleed
air
from
the
brake
system
after reassembling the
master cylinder.
(
c:7'
2-19 and 2-20)
CHASSIS 6-
57
