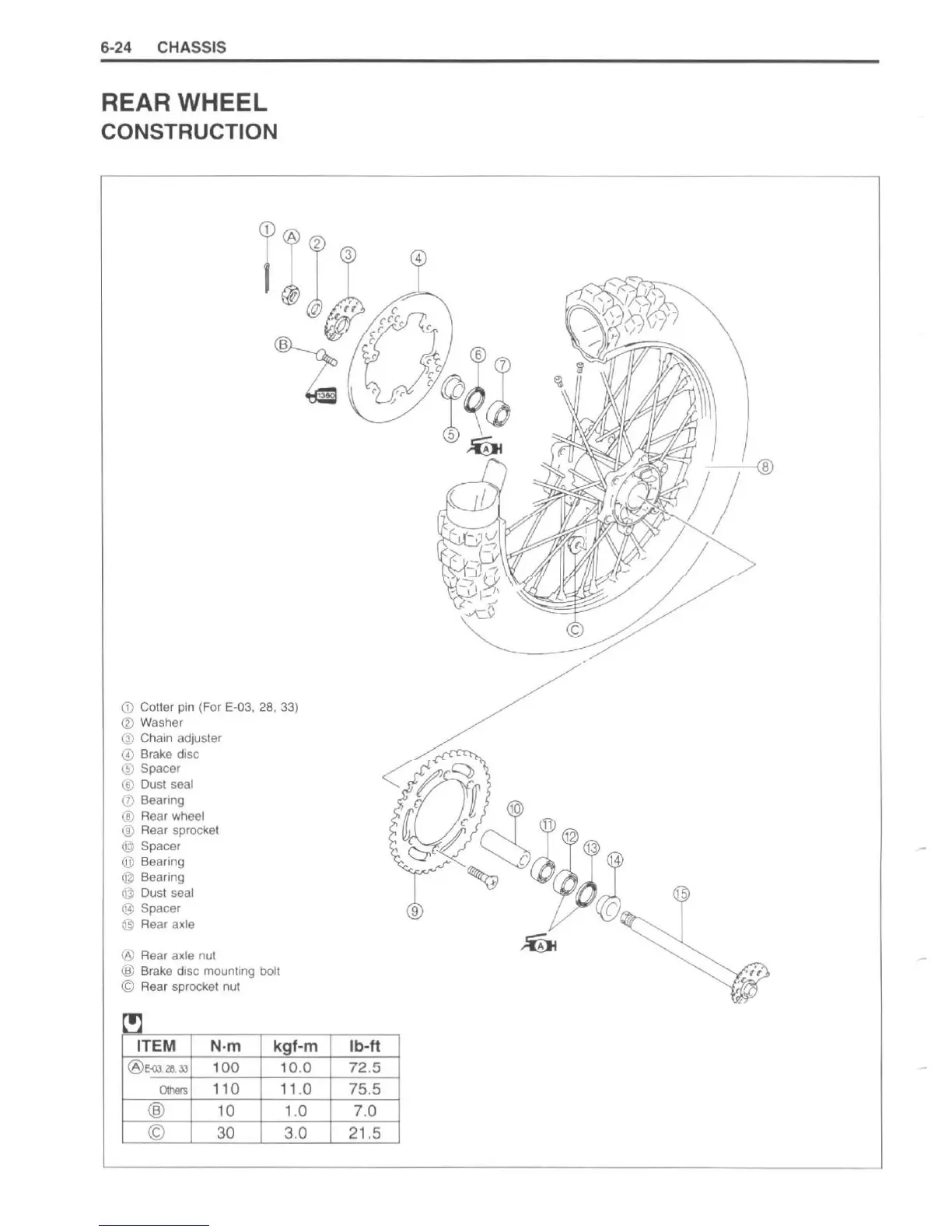

6-24 CHASSIS
REAR WHEEL
CONSTRUCTION
CD Colter pin (For E-03. 28. 33)
® Washer
G) Chain adjuster
@ Brake disc
® Spacer
® Dust seal
Q) Bearing
@ Rear wheel
® Rear sprocket
@l Spacer
@ Bearing
@ Bearing
@ Dust seal
® Spacer
® Rear axle
® Rear axle nul
® Brake dis c mounting bolt
© Rear sprocket nul
[I)
ITEM
N·m
kgf -m
@E<J3zo'3J 100
10 .0
Ott-.rs
110
11 .0
®
10 1.0
©
30
3,0
Ib-ft
72.5
75.5
7.0
21.5
