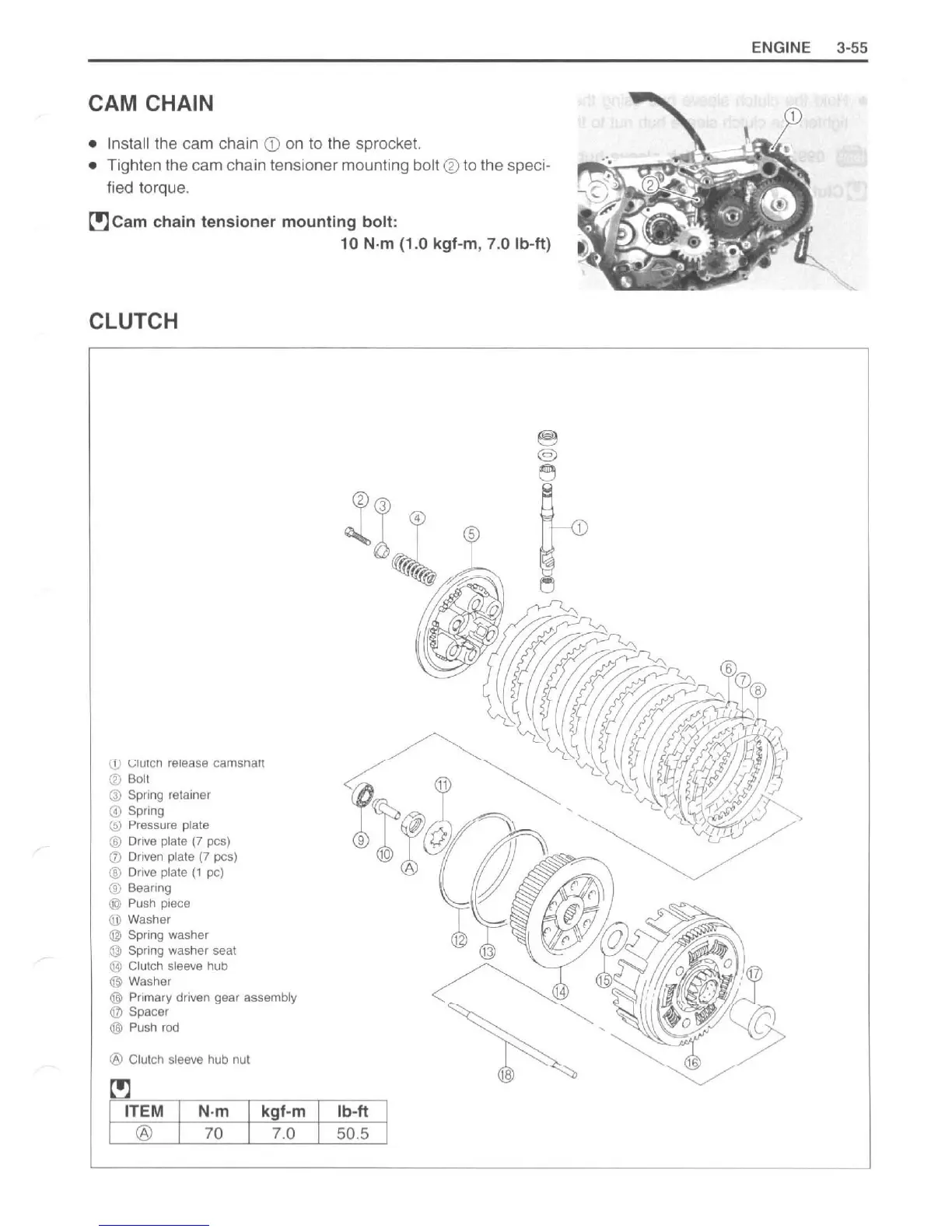

CAM CHAIN
• In sta ll the cam chain CD on to the sprocket.
• Tig ht en the cam chain tensioner mounting bolt ® to the speci-
fied torque.
~Cam chain tensioner mounting bolt:
CLUTCH
\.!) Llutcn release camsnan
(l) Boll
@ Spring retainer
(j) Spring
® Pressure plate
® Drive plate (7 pes)
(J) Driven plate (7 pes)
® Drive plale (1 pc)
® Beanng
@ Push piece
@ Washer
@ Spring washer
@ Spring washer seat
® Clutch sleeve hub
~ Washer
@ Primary driven gear assembly
@ Spacer
@
Push rod
® Clulch sleeve hub nul
N·m kgf-m
70 7.0
10 N·m (1.0 kgf-m , 7.0 Ib-f1)
Ib-f1
50.5
ENGINE 3 -5 5
