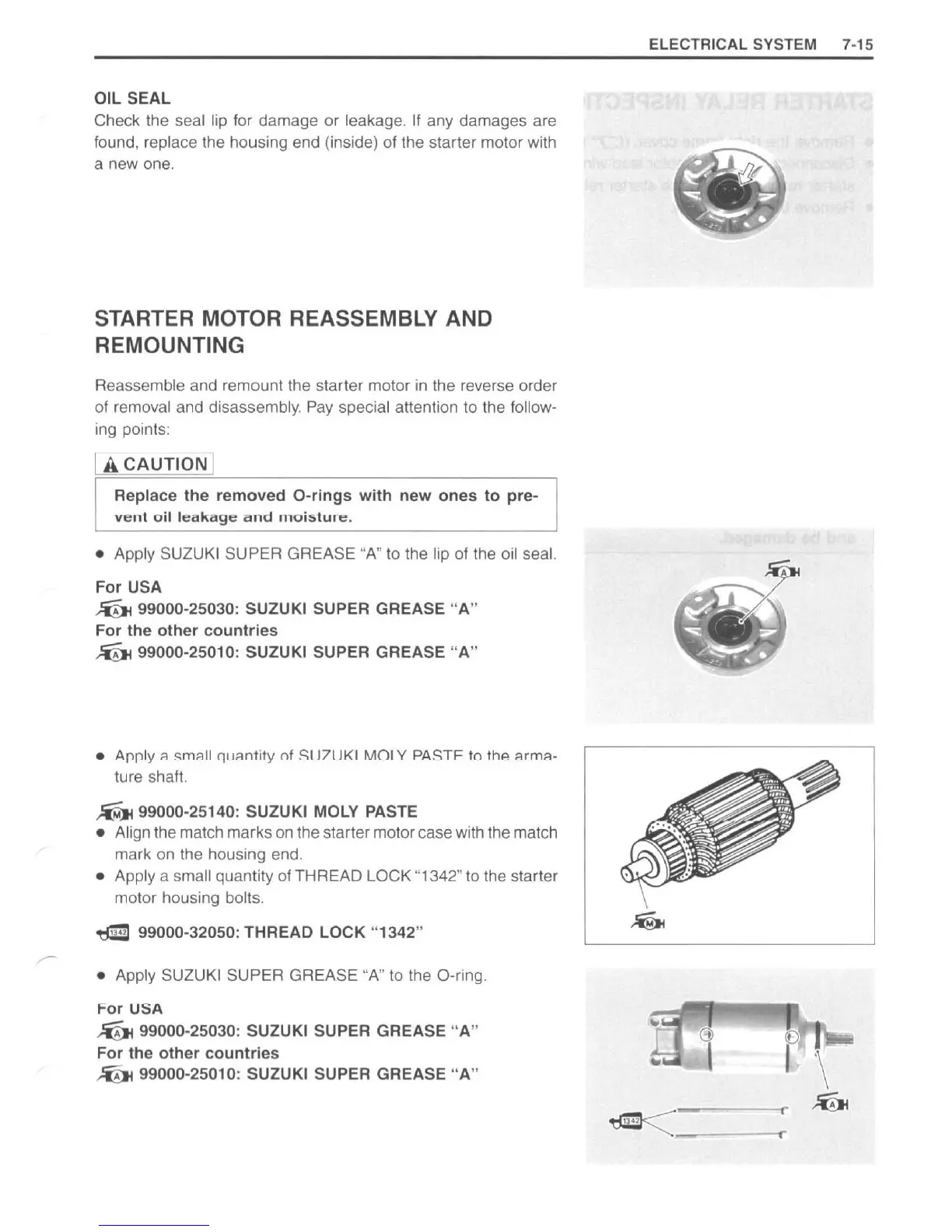

OIL
SEAL
Check the seal lip for damage or leakage. If any damages are
found. replace the housing end (inside) of the starter motor with
a new one.
STARTER MOTOR REASSEMBLY AND
REMOUNTING
Reassemble and remount the starter motor
in
the rever
se
order
of
removal and disassembly.
Pay
special attention to the follow-
ing points:
I
ACAUTION
l
Replace
the
removed
a -
rings
with
new
ones
to
pre-
vent
oil
leak
a
ge
a
nd
m
oi~ture.
• Apply SUZUKI SUPER GREASE "A"
to
the lip of the oil seal.
For USA
~
99000-25030: SUZUKI SUPER GREASE "A"
For
the
other
countries
~
99000-25010: SUZUKI SUPER GREASE " A"
•
Arrly
~
~m~11
'l"~ntity
nf
~1171
IK
I
MOl
Y
PA
~
TF
tn
thl'>
~rm,,
ture shaft.
~
99000-25140: SUZUKI MOLY PASTE
• Align
the match mar
ks
on the starter motor case with the mat
ch
mark on the housing end.
• Apply a small quantity of THREAD LOCK "1342" to the starter
motor housing
bolts.
~
99000-32050: THREAD LOCK "1342"
• Apply SUZUKI
SUPER GREASE "A"
to
the
a-ring
.
For
USA
~
99000-25030: SUZUKI SUPER GREASE " A"
For
the
other
countries
~
99000-25010: SUZUKI SUPER GREASE "A"
