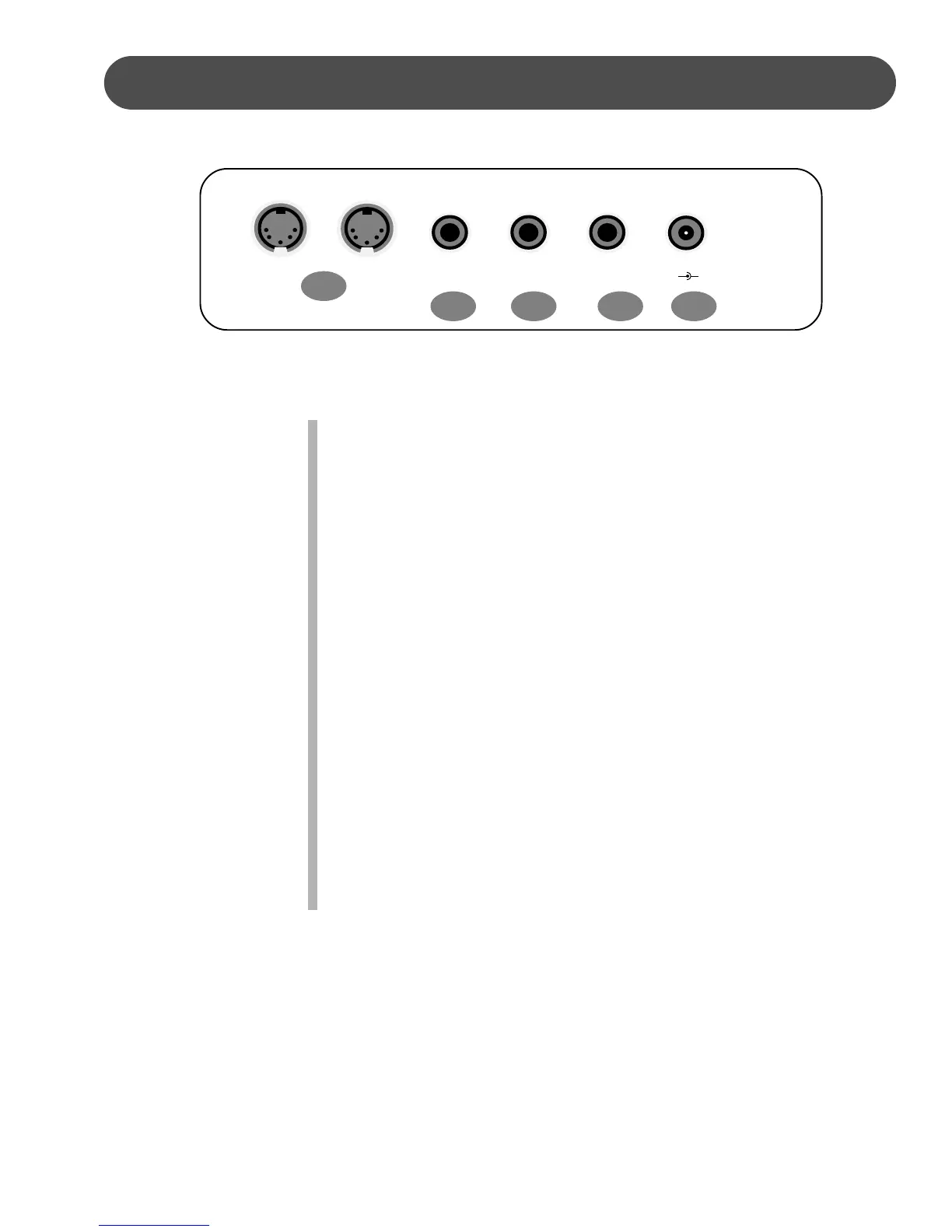

CONNECTOR PANELS
1. MIDI OUT / MIDI IN - This piano contains MIDI in and MIDI output
ports. MIDI jacks allow communication with other products
equipped with MIDI interfaces. Please see the MIDI section of
this manual for further details.
2. VOLUME (SOFT) PEDAL - If desired, plug the volume or soft
pedal into this connector. Please see the pedal section for more
information.
3. SUSTAIN PEDAL - If desired plug the sustain pedal into this
connector. Please see the pedal section for more information.
4. HEADPHONES AUX - You can play in total silence, without
disturbing others in the room, by plugging a set of headphones
into one of the appropriate sockets located on the left side of the
keyboard. When headphones are plugged into either of these
jacks the main speaker system is turned off. Two sets of head-
phones may be used.
5. DC 12V IN - This is the jack that the power outlet cord is plugged
into. For proper operation use the correct Suzuki adapter for this
keyboard.
These connector jacks are located on the left side of the piano.
1
2 543
FOOT
VOLUME
MIDI
OUT IN
SUSTAIN
PEDAL
HEADPHONES
AUX
DC 12V IN
+ -
