7-21
INSPECTION AND MAINTENANCE
52RM0-01E

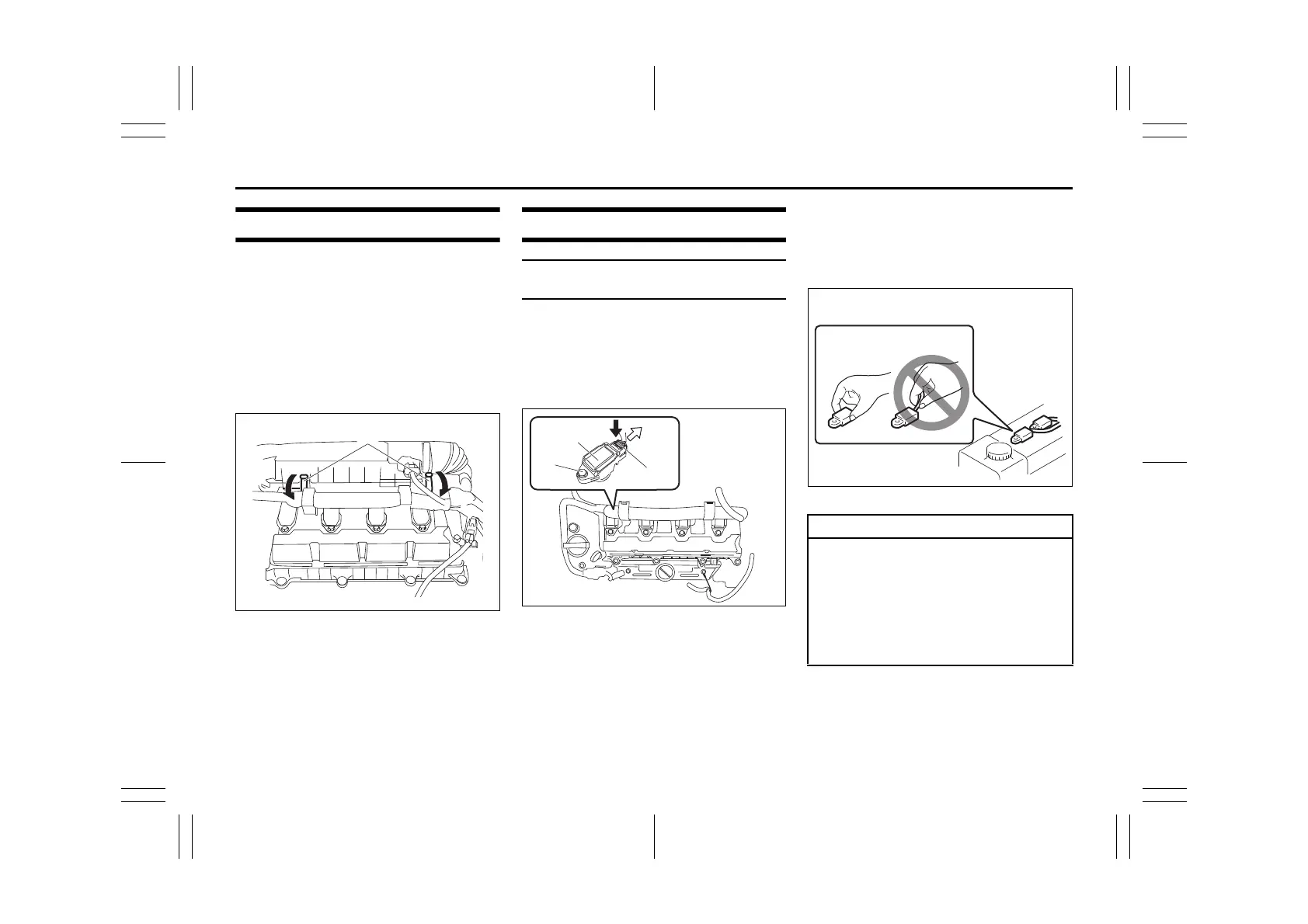

Air cleaner
If the air cleaner is clogged with dust, there
will be greater intake resistance, resulting
in decreased power output and increased
fuel consumption.
(For K10C engine model)
Since special procedures, materials and
tools are required, it is recommended that
you trust this job to an authorized SUZUKI
dealer.
(For K12C engine model)
52RM70100
1) Unclamp the side clamps (1).
2) Hold up and pull the air cleaner upper
case toward you.
3) Remove the element from the air
cleaner case. If it appears to be dirty,
clean or replace it with a new one.
4) Clamp the side clamps securely.
Spark plugs
Spark plug replacement and inspec-
tion
(For K10C engine model)
Since special procedures, materials and
tools are required, it is recommended that
you trust this job to an authorized SUZUKI
dealer.
(For K12C engine model)
81PN236
To access the spark plug:
1) Disconnect the coupler (1) while push-
ing the release lever.
2) Remove the bolt (2).
3) Pull out the ignition coil (3) straight.
NOTE:
During installation, check that the wires,
couplers, sealing rubber of air cleaner
chassis and washers, are correctly
returned in place.
78K179
(1)
(3)
(2)
NOTICE
• When pulling out the ignition coils,
do not pull on the cable. Pulling on
the cable can damage it.
• When servicing the iridium/plati-
num spark plugs (slender center
electrode type plugs), do not touch
the center electrode, as it is easy to
be damaged.
To Next Page
