13. STEERING/FRONT WHEEL/SUSPENSION
13-3

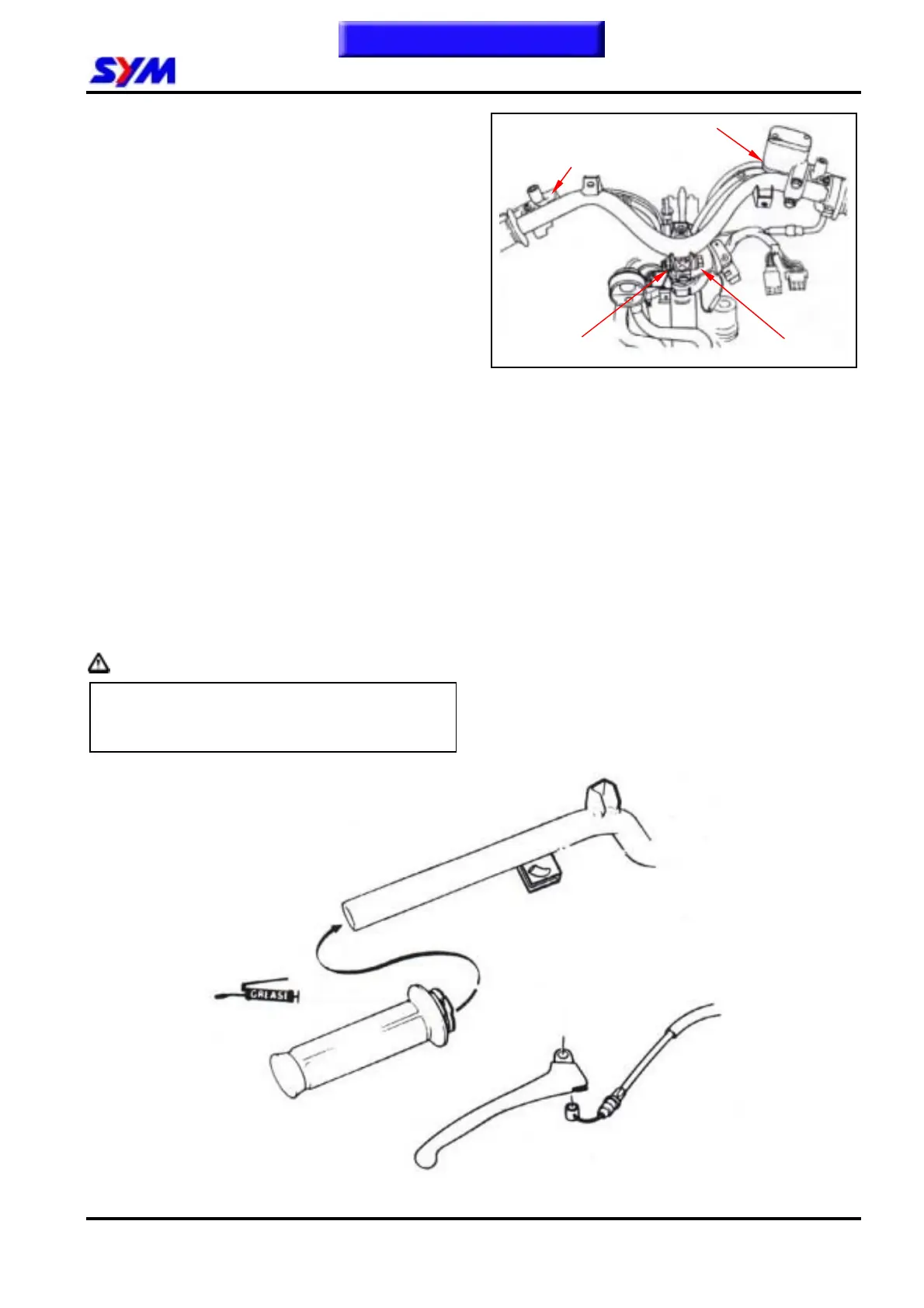

Steering Handle
Removal
Remove handle cover, front cover and inner
box.
Remove throttle grip after mounting screw
removed.
Remove master cylinder (disc brake) after 2
bolts removed.
Remove rear brake lever bracket after mounting
bolt removed.
Remove handle mounting bolt and nut, and then
remove the handle.
Installation
Install handle and align with bolt hole.
Install bolt and nut and then tighten it.
Torque value: 4.5 kgf-m
Apply with grease onto throttle cable and the
sliding surface of handle.
Align the lock pin of the handle outer tube with
the hole on the handle, and then install the
handle.
Tighten the bolt.
Caution
Align the lock pin with the hole on the handle
and also install brake lever seat. Then,
tighten the lever with clamp and bolt.
Bolt
Nut
Master cylinder
Rear brake lever seat
