10. FUEL SYSTEM
10-7

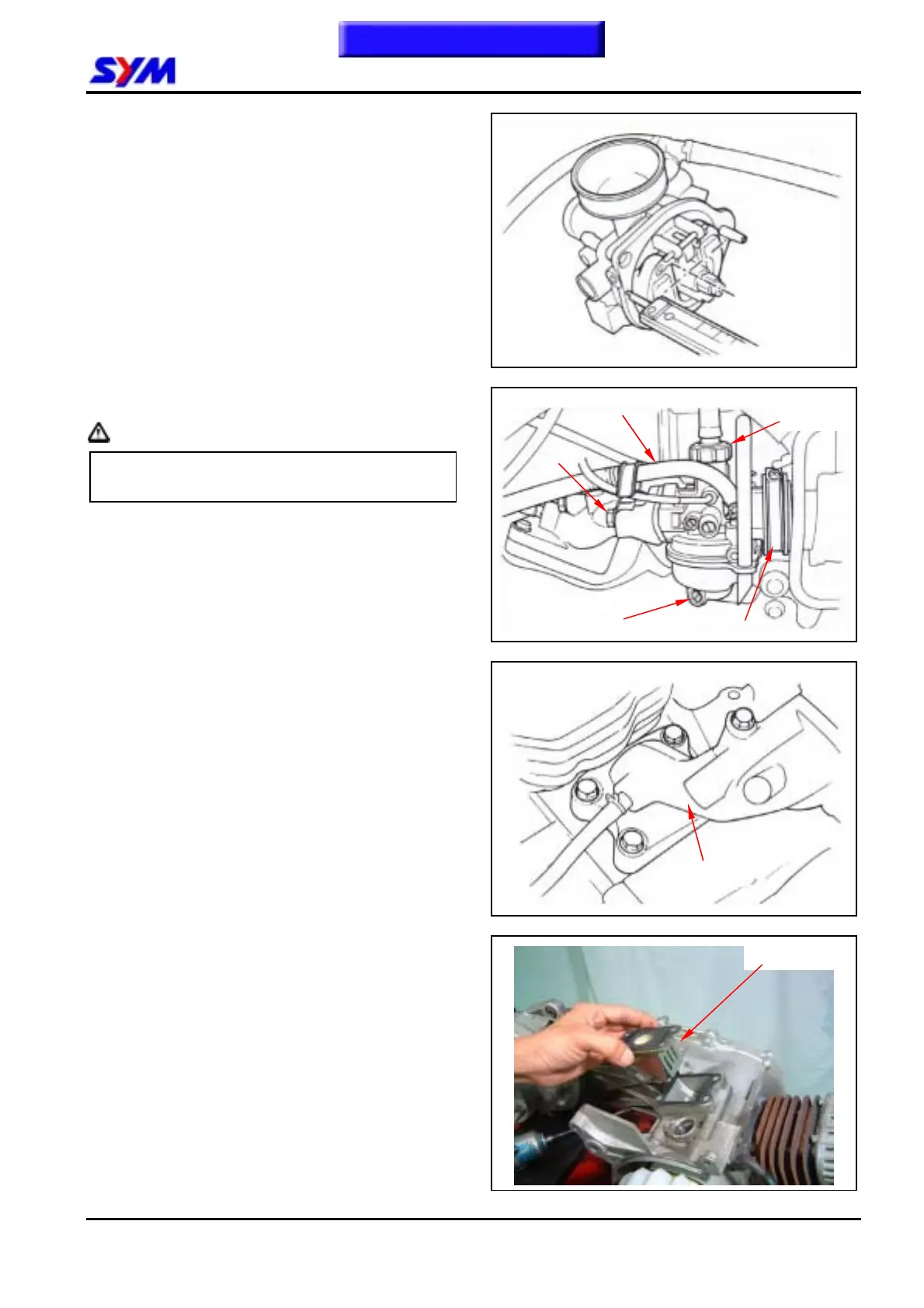

Flaot Level Inspection
Measure float fuel level to have the upper end of
float just contact with the float.
Float fuel level: 8.8 mm
Carefully bend the float arm for adjustment.
Check the float operation and the install it.
Carburetor Installation
Caution
Do not let foreign materials into the
carburetor.
Install the carburetor and insulator onto intake
pipe with bolts.
Install fuel and vent pipes onto carburetor.
Install the carburetor upper part.
Tighten the connection hose.
Tighten the draining screw.
Connect the automatic by-starter connector.
Install air cleaner cap.
Conduct following operations
y Adjustment of throttle valve cable.
y Adjustment of oil pump.
y Adjustment of idle speed.
Reed Valve
Removal
Remove the body cover.
Remove the carburetor.
Remove carburetor insulator.
Remove inlet pipe.
Remove the reed valve.
Reed valve
Inlet pipe
Carburetor
upper part
Connection hose clamp
Bolt
Fuel hose
Draining screw
