6
|
Description

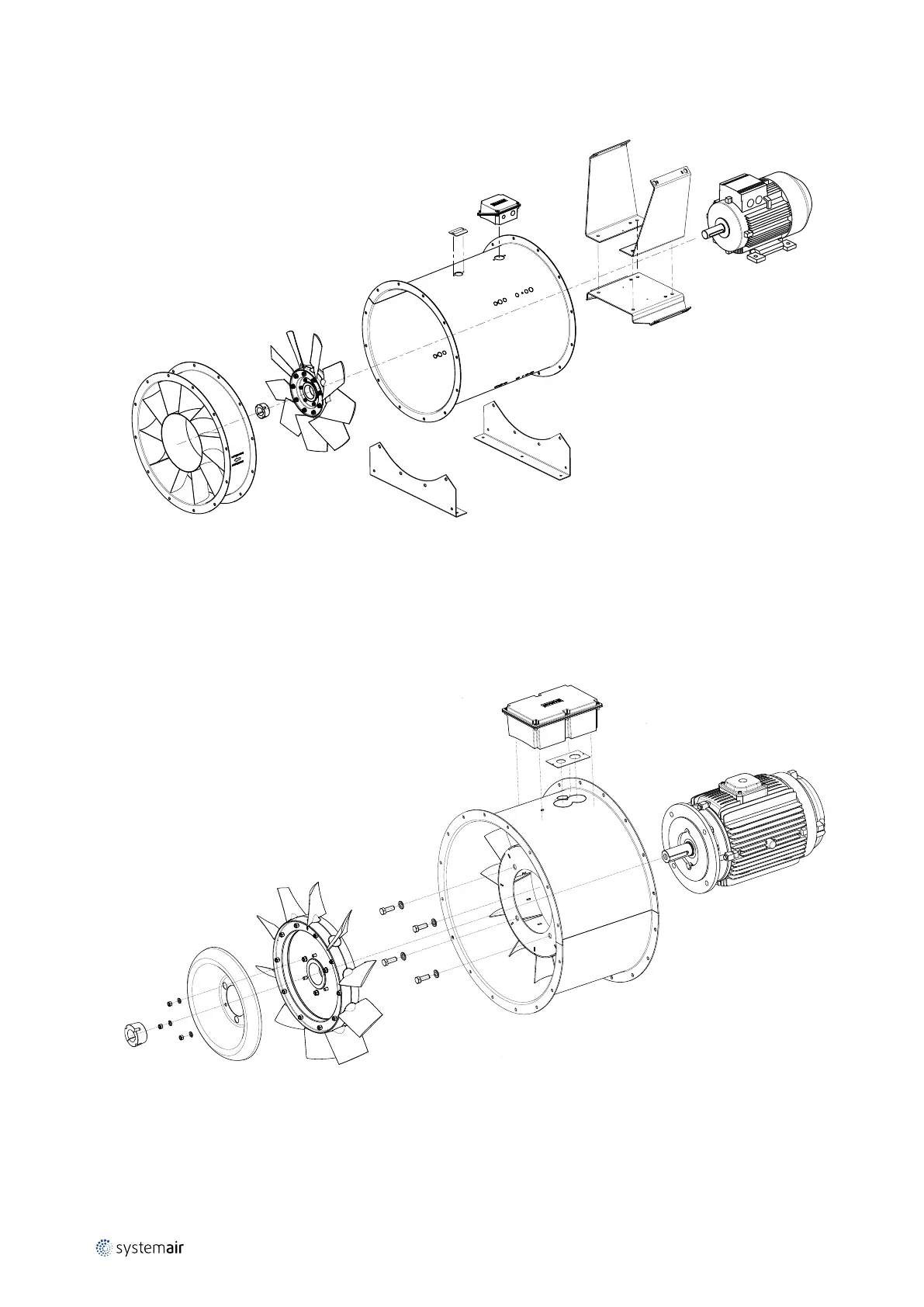

5.2.1 Construction AXC
3
4
2
5
6
1
7
1 Motor 3
Terminal box
5
Mounting feet
2
Impeller
4
Housing 6
Motor brackets
7
Guide vane only available for -PV version
5.2.2 Construction AXC-H
2
1
3
4
5
1
Hub cover
4
Terminal box
2
Impeller
5 Motor
3
Housing with integratet guide vane
| 014
