17.2 Description of multibox MUB/T
• Up to 100°C medium temperature
• Multi-functionally applicable e.g. for kitchen exhaust air
• Modular system
• Pre-assembled isolator is standard
• Low sound level
• Maintenance-free and reliable
• High efcient motors
• Motor outside of the air stream
All MUB/T fans have impellers with backward curved blades, manufactured from aluminium, and IEC standard motors outside of the air
stream with efciency class IE2 for all 400V three phase motors from 0.75 kW. The MUB/T fans are suitable for medium temperatures
up to 100°C continuously. Motor protection by cold conductors or thermal contact, to be connected to an external motor protection
device.
The casing consists of an aluminium frame with berglass reinforced plastic corners and double skin, galvanised steel panels with a
20 mm mineral wool insulation. Panels are removable, allowing exible ventilation solutions. With quick lock access door. The MUB
bottom panel is shaped as a grease tray and incorporates a premounted drain plug. An isolator switch is mounted on the casing. The
outlet direction can easily be rebuilt due to removable panels. This allows exible ventilation solutions.

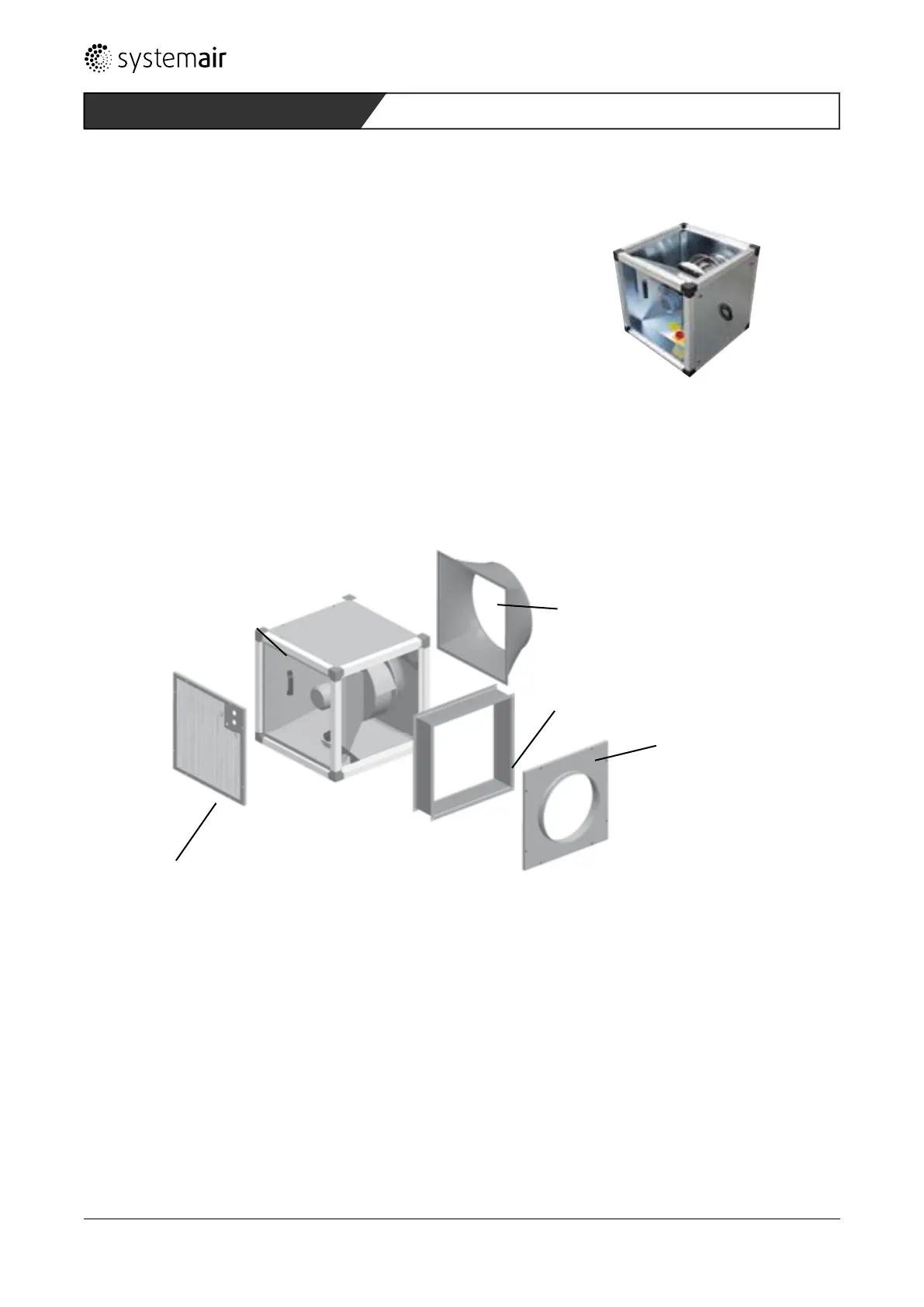

Fig. 4: Multibox MUB/T with accessories
Legend
1 MUB/T Multibox 4 EGF Protection guard
2 FGV Flexible connection 5 CCM or
CCMI
Transition connections isolated or not isolated,
square to round
3 UGS Transition connections, square to round
1
2
4
3
5
35
Multibox MUB - V 1.0
Description
