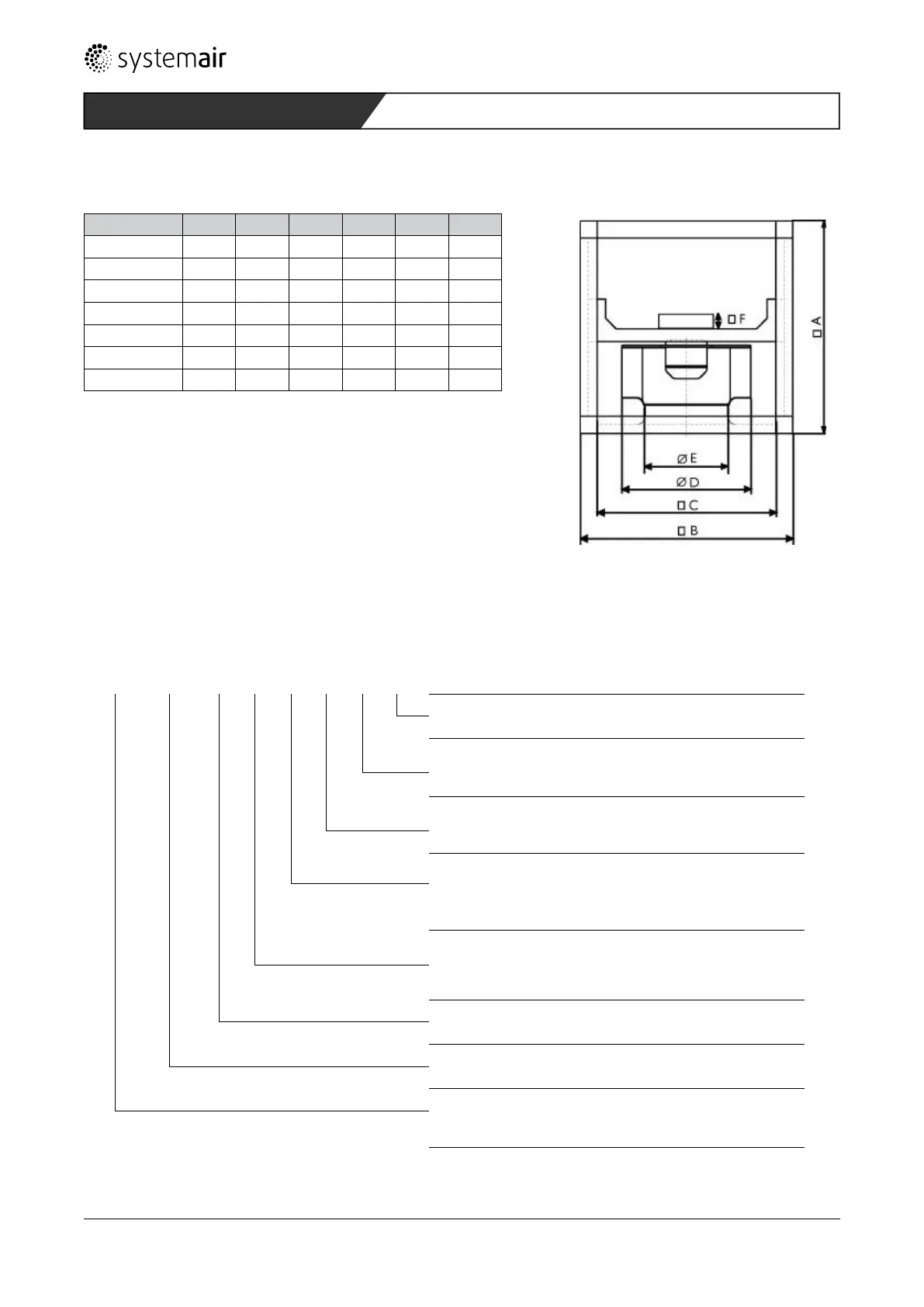

17.4.2 Dimensions
BG A B C øD øE F
025 315 EC 500 500 420 315 200 40
025 355 EC 500 500 420 255 224 40
042 400 EC 670 670 590 400 253 40
042 450 EC 670 670 590 450 286 70
042 500 EC 670 670 590 504 321 70
062 560 EC 800 800 720 560 360 70
062 630 EC 800 800 720 630 407 70
Table 3: Dimensions of multiboxes MUB-EC
17.5 Type key
MUB 042 500 D V A 2 IE2
IE2: International Efciency
High efciency
mechanic nish
electrical nish
A: Standard motor
HT: High temperature
number of poles (not
applicable for EC)
V: 4-4 poled controllable motor
S: 6-6 poled controllable motor
4: 4-4 poled
6: 6-6 poled
Motor type
E: single-phase alternating current
D: three-phase current
EC: Direct current
impeller diameter
size
Multibox
MUB
MUB/F
MUB/T
Fig. 9: Type key
40
Description
Multibox MUB - V 1.0
