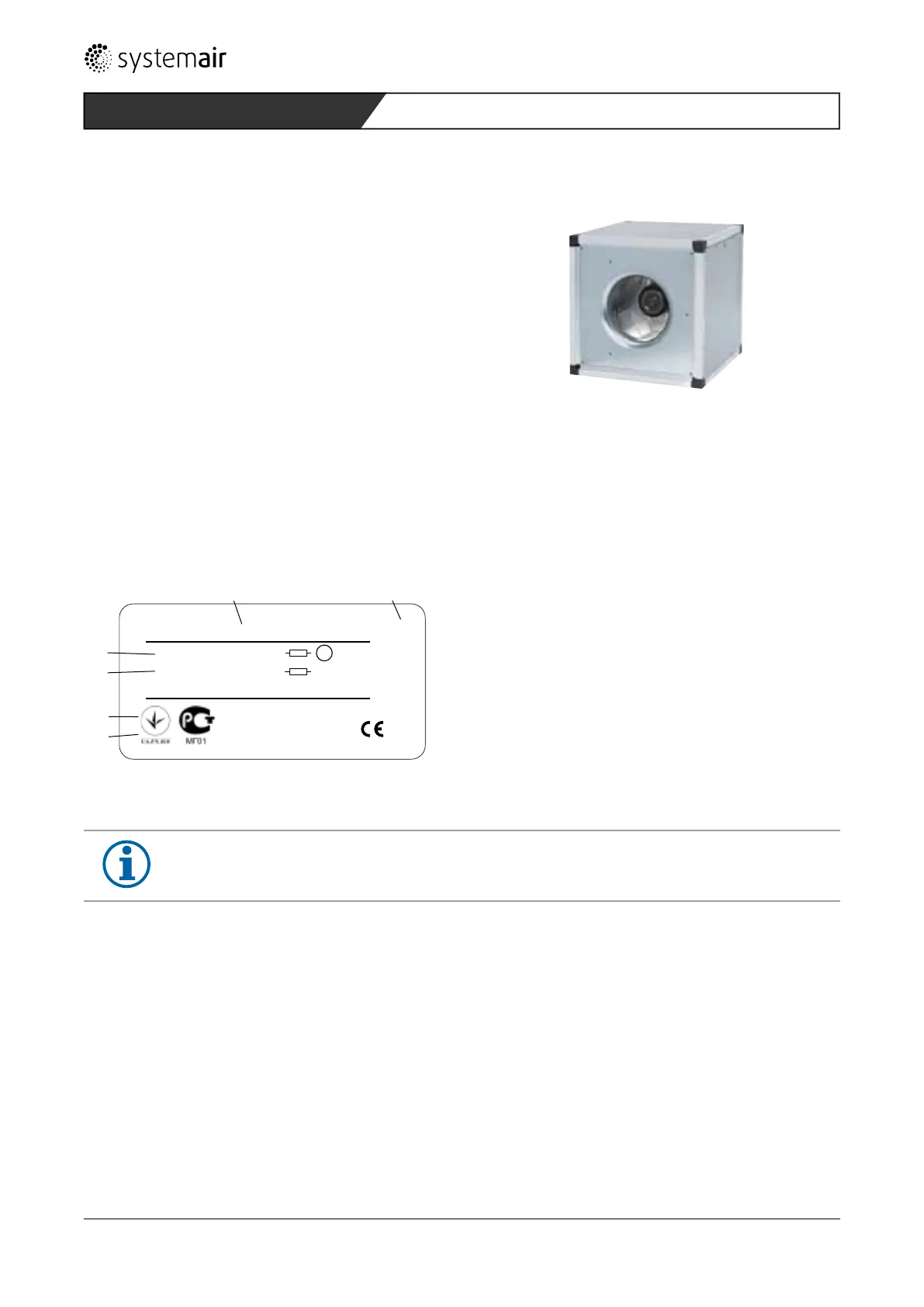

17.4 Description of the MUB-EC Multibox

• 100 % controllable

• integrated motor protection

• multifunctional use

• low sound level

• blow-out direction can be changed on site at any time without

problems

• installation in any position possible

• safe for operation and maintenance-free

• saves energy

In the MUB-EC series, all models have backward-bent rotor blades of aluminium and energy-saving, highly efcient EC external rotor

motors in a DC version. The output electronics have been integrated into the motor housing. Their input voltage can vary for single-

phase between 200 V and 277 V or for three-phase between 380 V and 480 V. Actuation is via a 0...10 V input signal, via which the

fan can be controlled. All motors have been suspended free of vibrations and are suited for 50 Hz and 60 Hz. The housing comprises

a self-supporting construction of aluminium section with encapsulated screw channels. The corners comprise highly impact-resistant

PA6. All MUB-EC multiboxes have an insula-tion of non-ammable glass wool 20 mm in thickness. For thermal decoupling, the side

panels have tabular rivets. Thanks to the box-of-bricks system, all MUB-EC multiboxes can be used as ideal and individual fed and

exhaust air solutions.

17.4.1 Name plate MUB-EC

TYPE:

MUB042 500EC-A2

400 V ~ 50/60 Hz

1,66 A 1340 min 1,05 kW

30314 / 782763 / 2010-12-02

WEIGHT 80 kg IP 54

CAPAC INS.CL.F

MADE IN GERMANY

1 Type designation

2 Article number/ Production number / Manufac-turing date

3 Voltage / Frequency / Motor output

4 Current / Speed (max./min.) / Output

6 Registration Ukraine, Russia / Weight / Protec-tion class

7 Capacity / Insulation class, motor

Fig. 8: Name plate MUB-EC

NOTE

The accessories for Multibox MUB-EC are identical with the accessories for the standard multibox MUB (see Fig. 1)

Multibox MUB - V 1.0

Description
