17.3 Description of Multibox MUB/F
• smoke-removal fan
• 400°C/120 min. (F400)
• insulated housing
• low noise level
• can be operated on two levels
• tested to EN 12101-3 with LGAI, Barcelona
The smoke-removal fans of the MUB/F series are suited for conveying hot fume gases in the standard area with standard tempera-
tures up to 55°C. The MUB/F multibox has been tted with backward-bent, free-running fan wheels of galvanised steel. The housing
comprises a sectioned steel frame. All parts have been galvanised and are resistant against the inuence of sea water. The 4 side
parts comprise double-shelled panels of galvanised steel sheet with a mineral wool insulation 20 mm in thickness. They have smooth
surfaces as protection against dust and dirt deposits. The blow-out direction can be chosen quite simply between a straight and lateral
direction. The motors are aligned to use of high temperatures, F 400°C / 120 min. The motors are available as one- or two phase ver-
sions.
1
2
3
4
6
5

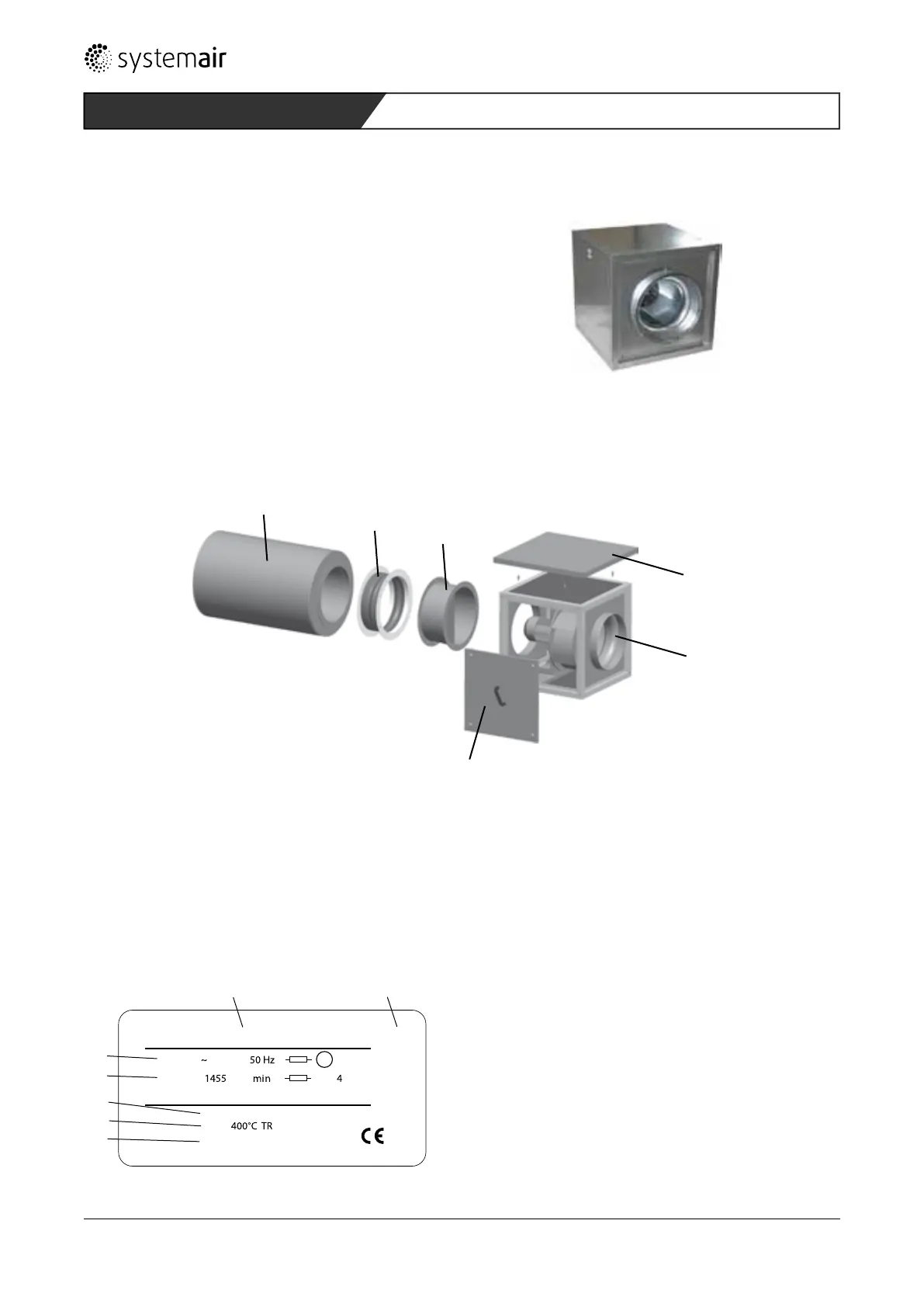

Fig. 6: Multibox MUB/F
Legend
1 RSA Sound absorber 4 SDM Service door
2 EVH Elastic connection 5 WSD Weather-protection roof
3 LRK Automatic closing ap 6 MUB/F Multibox
17.3.1 Name plate
TYPE:
MUB/F 062 630 D4 HT
400 DV
8,2 A kW
1
33302 / 736787 / 2010-09-01
T
CAP AC
COSPH
M
WEIGHT 163 kg IP55
INS.CL.F
1
4
6
7
2
8
1 Type designation
2 Article number/ Production number / Manufacturing date
3 Voltage / Frequency / Motor output
4 Current / Speed (max./min.) / Output
6 Registration Ukraine, Russia / Weight / Protection class
7 Capacity / Insulation class, motor
8 Temperature (TR: Temperature on ventilator)
Fig. 7: Name plate MUB/F
37
Multibox MUB - V 1.0
